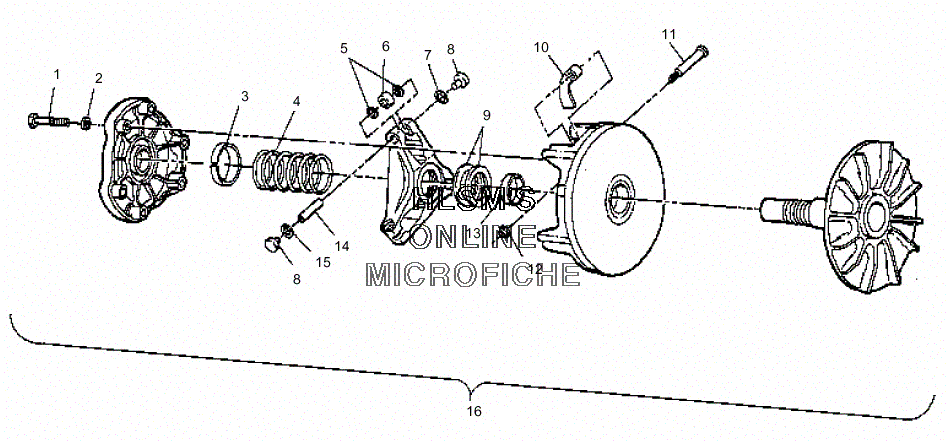

CLUTCH - DRIVE для Polaris XPLORER 4X4 (A02CG25CA) - 2002 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    7512176 SCREW
    SCREW
  • 2
    7552801 LOCK WASHER
    LOCK WASHER
  • 3
    3576510 BEARING, COVER,
    BEARING, COVER,
  • 4
    7041157 SPRING,CLUTCH
    SPRING,CLUTCH
  • 5
    5430945 WASHER,
    WASHER,
  • 6
    1321457 ROLLER/BUSHING ASM.(6)
    ROLLER/BUSHING ASM.(6)
  • 7
    5410610 O RING
    O RING
  • 8
    5430768 BUTTON, GUIDE
    BUTTON, GUIDE
  • 9
    5210752 SPACER (.020'')
    SPACER (.020'')
  • 9
    5242981 SPACER (.025'')
    SPACER (.025'')
  • 9
    5210753 SPACER (.032'')
    SPACER (.032'')
  • 9
    5210754 SPACER (.050'')
    SPACER (.050'')
  • 10
    5630515 WT,SHIFT, F(6) (F)
    WT,SHIFT, F(6) (F)
  • 11
    7512266 BOLT,SPECIAL
    BOLT,SPECIAL
  • 12
    7541906 NUT FLEX LOC
    NUT FLEX LOC
  • 13
    3576504 BUSHING, DRIVEN
    BUSHING, DRIVEN
  • 14
    5020795 PIN, SPIDER
    PIN, SPIDER
  • 15
    5410609 WASHER, RUBBER
    WASHER, RUBBER
  • 16
    1321635 ASM-DRIVE CLUTCH,WIDE (INCL. ALL LESS 4,10)
    ASM-DRIVE CLUTCH,WIDE (INCL. ALL LESS 4,10)
