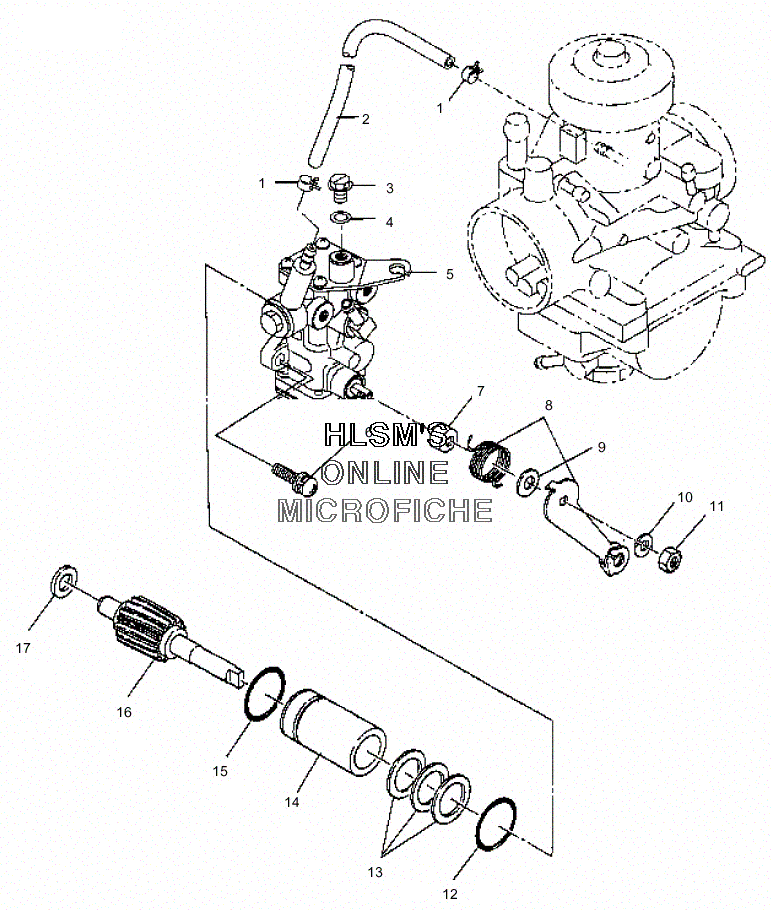

OIL PUMP для Polaris XPLORER 4X4 (A02CG25CA) - 2002 года выпуска`
-
№АртикулНазвание
-
13083141 CLAMP-HOSE,CLAMP-HOSE,
-
23087047 PIPE-VINYLPIPE-VINYL
-
33083125 SCREW-AIR VENTSCREW-AIR VENT
-
43083126 PACKINGPACKING
-
53087044 ASM-OIL PUMP (INCL. 3,4,7-12)ASM-OIL PUMP (INCL. 3,4,7-12)
-
63086778 SCREW AND WASHERSCREW AND WASHER
-
73083758 CAPCAP
-
83086844 SPRING AND LEVERSPRING AND LEVER
-
93083757 COLLAR, CAMSHAFTCOLLAR, CAMSHAFT
-
103083121 WASHER-SPRINGWASHER-SPRING
-
113083120 NUTNUT
-
123083127 O RINGO RING
-
133083671 SPACER #1 (.15MM)SPACER #1 (.15MM)
-
133083672 SPACER #2 (.3MM)SPACER #2 (.3MM)
-
133083673 SPACER #3 (.6MM)SPACER #3 (.6MM)
-
143083353 BUSHING(OIL PUMP)BUSHING(OIL PUMP)
-
153083129 O RINGO RING
-
163083429 GEAR, SMALLGEAR, SMALL
-
173083428 SPACERSPACER
