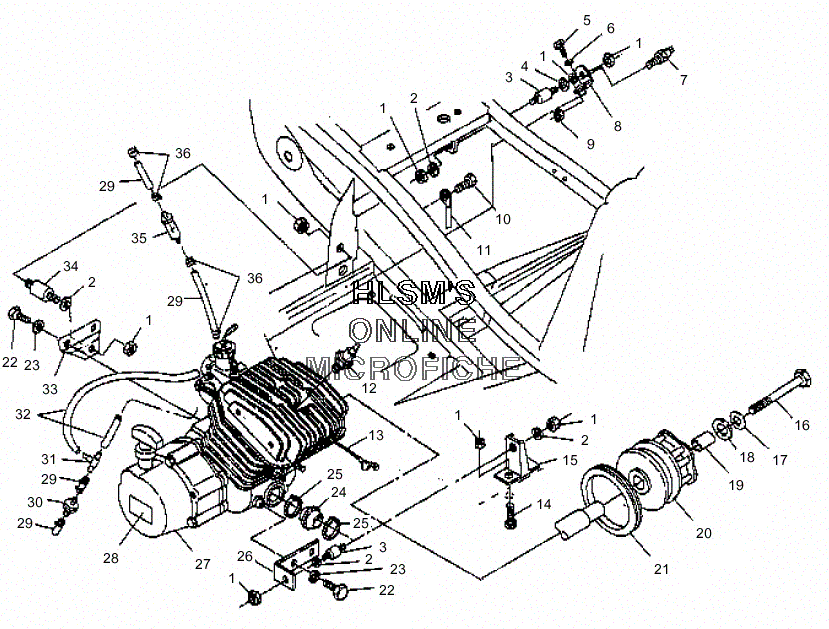

MOUNTING - ENGINE для Polaris XPLORER 4X4 (A02CG25CA) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7547108 NUT
    NUT
  • 2
    7555823 WASHER
    WASHER
  • 3
    3110026 MOUNT,MOTOR
    MOUNT,MOTOR
  • 4
    5430802 INSULATOR,MOTOR MT.
    INSULATOR,MOTOR MT.
  • 5
    7512315 BOLT
    BOLT
  • 6
    7552901 LOCK WASHER
    LOCK WASHER
  • 7
    4010284 SWITCH-TEMPERATURE,2600F
    SWITCH-TEMPERATURE,2600F
  • 8
    5244119-067 BRKT,ENGINE MOUNT,TOP,250,BLK
    BRKT,ENGINE MOUNT,TOP,250,BLK
  • 9
    7542103 NUT, LOCK
    NUT, LOCK
  • 10
    7512232 BOLT
    BOLT
  • 11
    4010132 CABLE,GND-ENGINE
    CABLE,GND-ENGINE
  • 12
    3070156 SPARKPLUG
    SPARKPLUG
  • 13
    4010129 CABLE,SOL/START,DBLBOOT
    CABLE,SOL/START,DBLBOOT
  • 14
    7512457 BOLT
    BOLT
  • 15
    1040687-067 MOUNT,FR.ENGINE,BLK.
    MOUNT,FR.ENGINE,BLK.
  • 16
    7512566 BOLT
    BOLT
  • 17
    7575202 WASHER LOCK
    WASHER LOCK
  • 18
    5210748 WASHER
    WASHER
  • 19
    5430261 BUSHING - RETAINING BOLT
    BUSHING - RETAINING BOLT
  • 22
    7512490 SCREW
    SCREW
  • 23
    7552603 WASHER
    WASHER
  • 24
    5410421 BOOT,CLUTCH INTAKE
    BOOT,CLUTCH INTAKE
  • 25
    7080511 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 26
    5242896-067 BRKT-ENGINE MOUNT,FRT,250,BLK
    BRKT-ENGINE MOUNT,FRT,250,BLK
  • 27
    3084717 ENGINE, SHORT BLOCK SEE NOTE
    ENGINE, SHORT BLOCK SEE NOTE
  • 28
    7078577 DECAL,DRAIN RECOIL
    DECAL,DRAIN RECOIL
  • 29
    8450040-600 FUEL LINE,1/4 ID(600 CM.)
    FUEL LINE,1/4 ID(600 CM.)
  • 30
    7051011 VENT,CHECKVALVE
    VENT,CHECKVALVE
  • 31
    7052005 FITTING, TEE
    FITTING, TEE
  • 32
    8360009-600 FUEL LINE,1/8 ID,600 CM.
    FUEL LINE,1/8 ID,600 CM.
  • 33
    5242897-067 BRKT-ENGINE MOUNT,REAR,250,BLK
    BRKT-ENGINE MOUNT,REAR,250,BLK
  • 34
    3110028 MOUNT, MOTOR
    MOUNT, MOTOR
  • 35
    2530009 FILTER,SMALL,IN-LINE,
    FILTER,SMALL,IN-LINE,
  • 36
    7080003 CLAMP,HOSE
    CLAMP,HOSE
