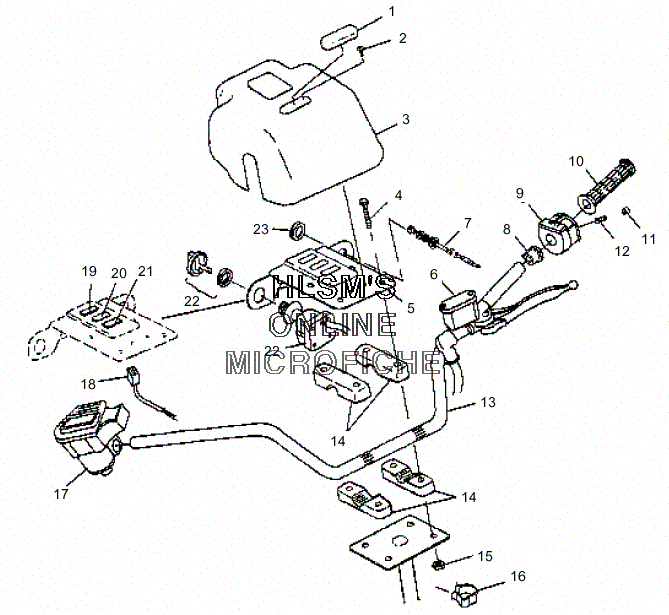

HANDLEBAR для Polaris XPLORER 4X4 (A02CG25CA) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    5432247-070 COVER-LOGO, BLK
    COVER-LOGO, BLK
  • 2
    7512024 SCREW,
    SCREW,
  • 3
    5433842-070 PANEL,INSTRUMENT,BLACK
    PANEL,INSTRUMENT,BLACK
  • 4
    7517216 SCREW
    SCREW
  • 5
    5244292-067 BRKT-INSTRUMENT,PANEL,BLK
    BRKT-INSTRUMENT,PANEL,BLK
  • 7
    7081008 CABLE-CHOKE,FRICTION,40''
    CABLE-CHOKE,FRICTION,40''
  • 8
    5433903 SPACER-SWITCH,LH,99
    SPACER-SWITCH,LH,99
  • 9
    4010423 SWITCH-HANDLEBAR,HI/LO/OFF,2P
    SWITCH-HANDLEBAR,HI/LO/OFF,2P
  • 10
    5433834-070 GRIP-HNDLBAR,7/8 ID,ATV,BLACK
    GRIP-HNDLBAR,7/8 ID,ATV,BLACK
  • 11
    5432952 PLUG,HOLE
    PLUG,HOLE
  • 12
    7517625 SCREW,SET
    SCREW,SET
  • 13
    5224715-067 HANDLEBAR,TUBE,BLK
    HANDLEBAR,TUBE,BLK
  • 14
    5630629 BLOCK,H'BAR,(300)
    BLOCK,H'BAR,(300)
  • 15
    7542122 NUT-LOCK
    NUT-LOCK
  • 16
    7080631 CLIP,CABLE RETAIN,
    CLIP,CABLE RETAIN,
  • 18
    2460777 HARNESS-INDICATOR,T.BLAZER,CON
    HARNESS-INDICATOR,T.BLAZER,CON
  • 19
    4040054 INDIC''NEUT./REV.''
    INDIC''NEUT./REV.''
  • 20
    4040053 INDIC''HOT TEMPERATURE''
    INDIC''HOT TEMPERATURE''
  • 21
    5430967 PLUG,INDIC.HOLE
    PLUG,INDIC.HOLE
  • 22
    4010390 SWITCH-IGNITION,KEYSTART,ATV
    SWITCH-IGNITION,KEYSTART,ATV
  • 22
    4010278 KEY BLANK (20/21/67/68) SERIES (SEE NOTE)
    KEY BLANK (20/21/67/68) SERIES (SEE NOTE)
  • 22
    4010321 KEY BLANK (22/23/27/28) SERIES (SEE NOTE)
    KEY BLANK (22/23/27/28) SERIES (SEE NOTE)
  • 22
    5433733 NUT,IGN SWITCH,HOBBS
    NUT,IGN SWITCH,HOBBS
  • 22
    5433534 KEY COVER-KEYSWITCH
    KEY COVER-KEYSWITCH
  • 23
    7080922 NUT,CHOKE,M24X1.5 THD,M29 HEX
    NUT,CHOKE,M24X1.5 THD,M29 HEX
