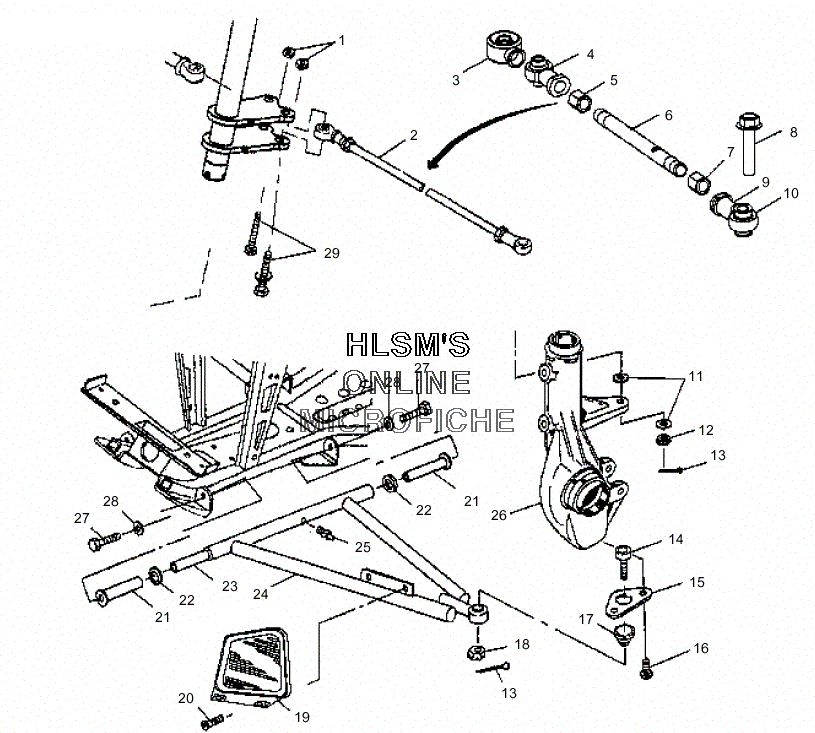

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris XPLORER 4X4 (A02CG25CA) - 2002 года выпуска
-
№АртикулНазвание
-
17542439 NUT,NYLOKNUT,NYLOK
-
21820805 TIE,ROD,1/2-20X13.4,ASM. (INCL. 3-9)TIE,ROD,1/2-20X13.4,ASM. (INCL. 3-9)
-
35411291 SEAL,BOOT,ROD END,1/2 INSEAL,BOOT,ROD END,1/2 IN
-
47061034 ROD END,RHROD END,RH
-
57542711 NUT-JAMNUT-JAM
-
65020926 ROD,TIEROD,TIE
-
77547028 NUT,LH,JAMNUT,LH,JAM
-
87517909 BOLT-M10X1.25X65,HX WASH HDBOLT-M10X1.25X65,HX WASH HD
-
97061054 ROD,END,10MM,1/2-20LH,42 DEGROD,END,10MM,1/2-20LH,42 DEG
-
105411920 BOOT,SEAL,ROD END,10MMBOOT,SEAL,ROD END,10MM
-
117556099 WASHERWASHER
-
127547177 NUT-M10X1.25-HX-LOCK-YNUT-M10X1.25-HX-LOCK-Y
-
137661203 PIN COTTERPIN COTTER
-
147080927 BALL-JOINT,52 DEG,ATVBALL-JOINT,52 DEG,ATV
-
155211121 BRKT, BALL JOINTBRKT, BALL JOINT
-
167512284 BOLT, SOCKETBOLT, SOCKET
-
175410548 BOOT, RUBBERBOOT, RUBBER
-
187542438 NUT, CASTLENUT, CASTLE
-
195431150-070 SHIELD-CV JOINT,LH,BLKSHIELD-CV JOINT,LH,BLK
-
195431149-070 SHIELD-CV JOINT,RH,BLKSHIELD-CV JOINT,RH,BLK
-
207512084 SCREW (FB USES QTY. 6)SCREW (FB USES QTY. 6)
-
215433066 BUSHING-A-ARM,LONG,BLKBUSHING-A-ARM,LONG,BLK
-
225020677 BUSHING,A-ARM SPACERBUSHING,A-ARM SPACER
-
235020681 SHAFT-A-ARM(4X4)SHAFT-A-ARM(4X4)
-
242201611 KIT-A-FRAME,LH,BLKKIT-A-FRAME,LH,BLK
-
242201612 KIT-A-FRAME,RH,BLKKIT-A-FRAME,RH,BLK
-
257080433 ZERK,FITTING,THREADEDZERK,FITTING,THREADED
-
277512492 SCREWSCREW
-
287552603 WASHERWASHER
-
297515415 BOLTBOLT
