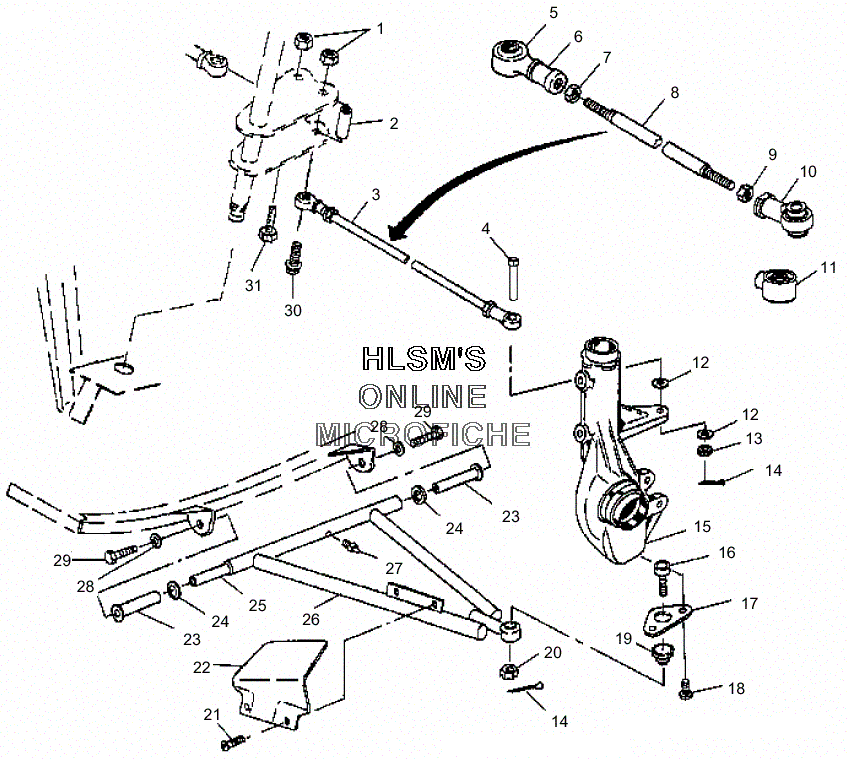

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris SCRAMBLER 400 (A00BG38CA) - 2000 года выпуска
-
№АртикулНазвание
-
17542403 NUT, LOCKNUT, LOCK
-
25333367 BUSHINGBUSHING
-
31820805 TIE ROD, ASSY. (INCL. 5-10)TIE ROD, ASSY. (INCL. 5-10)
-
47517674 BOLT, HEXAGON WASH HEADBOLT, HEXAGON WASH HEAD
-
55411291 SEAL, BOOT ROD END (1/2 IN)SEAL, BOOT ROD END (1/2 IN)
-
67061034 ROD END (RIGHT)ROD END (RIGHT)
-
77542711 NUT, JAMNUT, JAM
-
85020926 ROD, TIEROD, TIE
-
97547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
107061054 ROD, END, (1/2-20 LH) (42 DEG) (10MM)ROD, END, (1/2-20 LH) (42 DEG) (10MM)
-
115411920 BOOT, SEAL, ROD END (10MM)BOOT, SEAL, ROD END (10MM)
-
127556099 WASHERWASHER
-
137546904 NUT, CASTLENUT, CASTLE
-
147661203 PIN, COTTERPIN, COTTER
-
167080927 BALL JOINT (52 DEG)BALL JOINT (52 DEG)
-
175211121 BRACKET, BALL JOINTBRACKET, BALL JOINT
-
187512284 BOLT, SOCKETBOLT, SOCKET
-
195410548 BOOT, RUBBERBOOT, RUBBER
-
207542438 NUT, CASTLENUT, CASTLE
-
217512084 SCREWSCREW
-
225431150 SHIELD, CV JOINT (LEFT/BLACK)SHIELD, CV JOINT (LEFT/BLACK)
-
225431149 SHIELD, CV JOINT (RIGHT/BLACK)SHIELD, CV JOINT (RIGHT/BLACK)
-
235431596 BUSHING, A-ARM LONGBUSHING, A-ARM LONG
-
245020677 BUSHING, A-ARM SPACERBUSHING, A-ARM SPACER
-
255020681 SHAFT, A-ARMSHAFT, A-ARM
-
262201611 A-FRAME, KIT (LEFT)A-FRAME, KIT (LEFT)
-
262201612 A-FRAME, KIT (RIGHT)A-FRAME, KIT (RIGHT)
-
277080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
287552603 WASHERWASHER
-
297512492 SCREWSCREW
-
307517527 BOLTBOLT
-
317515415 BOLTBOLT
