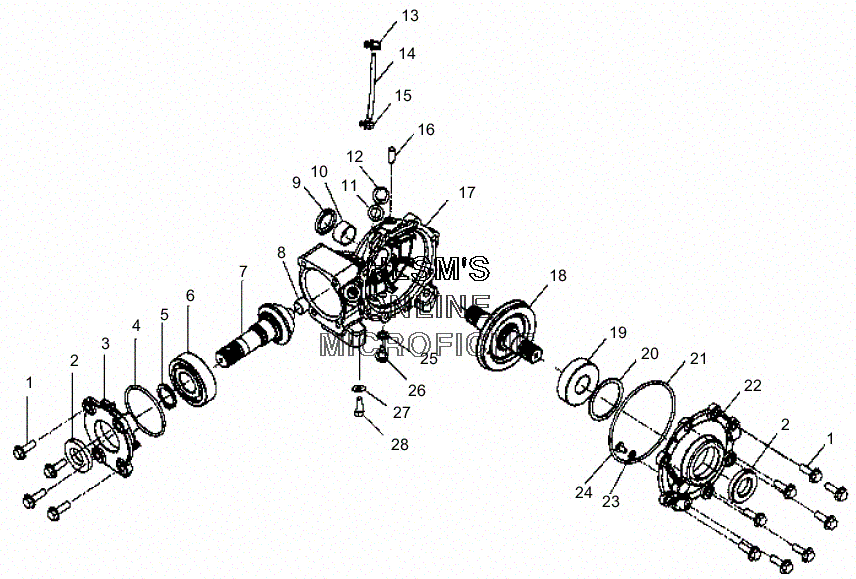

FRONT - GEARCASE (BUILT BEFORE APRIL 23- 1999) для Polaris SCRAMBLER 400 (A00BG38CA) - 2000 года выпуска

  • №
    Артикул
    Название
  • 0
    1341276 GEARCASE, ASSY. (FRONT) (INCL. 1-12,16-26) (BUILT BEFORE APRIL 23, 1999)
    GEARCASE, ASSY. (FRONT) (INCL. 1-12,16-26) (BUILT BEFORE APRIL 23, 1999)
  • 1
    3233252 SCREW
    SCREW
  • 2
    3233248 SEAL, TRIPLE LIP
    SEAL, TRIPLE LIP
  • 3
    3233701 INPUT COVER, HOUSING (FRONT)
    INPUT COVER, HOUSING (FRONT)
  • 4
    3233700 O-RING
    O-RING
  • 5
    3233699 RING, RETAINING
    RING, RETAINING
  • 6
    3233589 BEARING, BALL
    BEARING, BALL
  • 7
    3233698 PINION, INPUT
    PINION, INPUT
  • 8
    3233541 BUSHING, GARLOCK
    BUSHING, GARLOCK
  • 9
    3233319 SEAL
    SEAL
  • 10
    3233697 BUSHINHG, GARLOCK
    BUSHINHG, GARLOCK
  • 11
    3233324 WASHER
    WASHER
  • 12
    3233711 PLUG, OIL FILL
    PLUG, OIL FILL
  • 13
    7080409 CLAMP, WIRE ROUTING
    CLAMP, WIRE ROUTING
  • 14
    8450003-1525 FUEL LINE (1/4 ID 1525 CM.) (OPT)
    FUEL LINE (1/4 ID 1525 CM.) (OPT)
  • 15
    7080307 CLAMP
    CLAMP
  • 16
    3233524 TUBE, VENT
    TUBE, VENT
  • 17
    3233696 GEARCASE
    GEARCASE
  • 18
    3233710 SUBASM, OUTPUT SHAFT HOUSING (FRONT)
    SUBASM, OUTPUT SHAFT HOUSING (FRONT)
  • 18
    3233694 OUTPUT SHAFT, HOUSING (FRONT)
    OUTPUT SHAFT, HOUSING (FRONT)
  • 18
    3233695 GEAR HOUSING (29 TEETH/FRONT)
    GEAR HOUSING (29 TEETH/FRONT)
  • 19
    3233020 BEARING
    BEARING
  • 20
    3233554 SHIM (OPT)
    SHIM (OPT)
  • 21
    3233693 O-RING
    O-RING
  • 22
    3233692 OUTPUT COVER, HOUSING (FRONT)
    OUTPUT COVER, HOUSING (FRONT)
  • 23
    3233583 SHIM (OPT)
    SHIM (OPT)
  • 24
    3233702 BUTTON, THRUST
    BUTTON, THRUST
  • 25
    3233254 PLUG, WASHER
    PLUG, WASHER
  • 26
    3233253 PLUG, HEXAGON FLANGE
    PLUG, HEXAGON FLANGE
  • 27
    7552603 WASHER
    WASHER
  • 28
    7512492 SCREW
    SCREW
