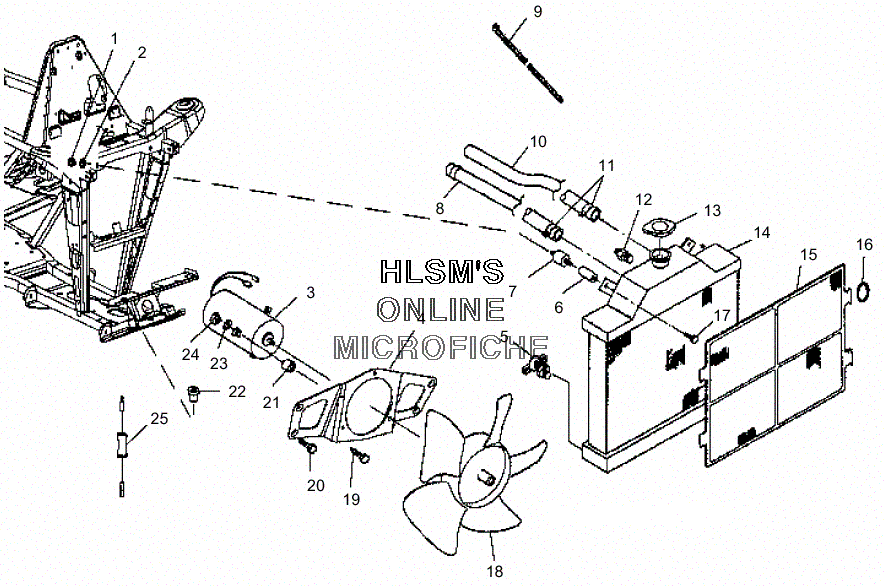

COOLING SYSTEM для Polaris SCRAMBLER 400 (A00BG38CA) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7542122 NUT LOCK
    NUT LOCK
  • 2
    7558301 WASHER
    WASHER
  • 3
    4170013 MOTOR, FAN LIQ D-SHAFT CONN. (BUILT BEFORE 1/01/00)
    MOTOR, FAN LIQ D-SHAFT CONN. (BUILT BEFORE 1/01/00)
  • 3
    2410141 FAN MOTOR, CONN. (BUILT AFTER 1/01/00)
    FAN MOTOR, CONN. (BUILT AFTER 1/01/00)
  • 4
    5241355-067 BRACKET COOLING FAN (BLACK)
    BRACKET COOLING FAN (BLACK)
  • 5
    7052181 VALVE, DRAIN COCK
    VALVE, DRAIN COCK
  • 6
    5020937 SPACER, RADIATOR MOUNT
    SPACER, RADIATOR MOUNT
  • 7
    3110032 MOUNT, RUBBER
    MOUNT, RUBBER
  • 9
    7080492 STRAP, WEATHER-RESIST (BLACK)
    STRAP, WEATHER-RESIST (BLACK)
  • 11
    7080614 CLAMP, HOSE
    CLAMP, HOSE
  • 12
    4110226 SWITCH, THERMAL FAN L/C
    SWITCH, THERMAL FAN L/C
  • 13
    2511189 CAP, PRESSURE (13 LB)
    CAP, PRESSURE (13 LB)
  • 14
    1240015 RADIATOR, ''U'' FLOW
    RADIATOR, ''U'' FLOW
  • 15
    5431610 COVER, RADIATOR W/MESH (BUILT BEFORE 9/01/99)
    COVER, RADIATOR W/MESH (BUILT BEFORE 9/01/99)
  • 16
    5410607 O-RING (BUILT BEFORE 9/01/99)
    O-RING (BUILT BEFORE 9/01/99)
  • 17
    7515133 SCREW
    SCREW
  • 18
    5242550 BLADE, FAN NYLON (8'')
    BLADE, FAN NYLON (8'')
  • 19
    7517475 SCREW
    SCREW
  • 20
    7512232 BOLT
    BOLT
  • 21
    5432870 SPACER, FAN BRACKET
    SPACER, FAN BRACKET
  • 22
    5410584 BUSHING, MOUNT (LOWER/RED)
    BUSHING, MOUNT (LOWER/RED)
  • 23
    7558201 WASHER, FLAT
    WASHER, FLAT
  • 24
    7547004 NUT
    NUT
  • 25
    4010369 SENSOR
    SENSOR
