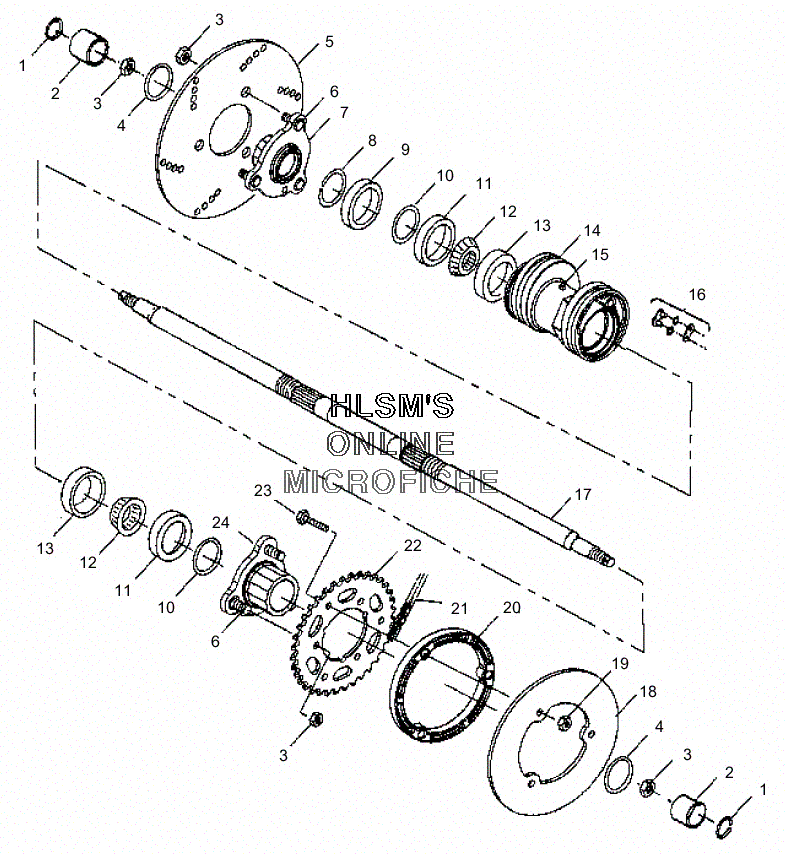

HOUSING - REAR W/ AXLE для Polaris SCRAMBLER 400 (A00BG38CA) - 2000 года выпуска`
-
№АртикулНазвание
-
17710472 RING, RETAININGRING, RETAINING
-
25510313 EXTRUSION, RETAINER NUTEXTRUSION, RETAINER NUT
-
37542439 NUT, LOCKNUT, LOCK
-
45411555 SEAL, FOAMSEAL, FOAM
-
55211849 DISC, BRAKE VENTEDDISC, BRAKE VENTED
-
67515513 STUDSTUD
-
71520259 HUB ASSY., BRAKE DISC LOCKING (INCL. 6)HUB ASSY., BRAKE DISC LOCKING (INCL. 6)
-
87710496 RET, RING EATONRET, RING EATON
-
95010462 SPACER, AXLESPACER, AXLE
-
105410889 O-RINGO-RING
-
113610070 SEAL, LIPSEAL, LIP
-
123554518 BEARING, CONE TAPEREDBEARING, CONE TAPERED
-
133554517 BEARING, CUP TAPEREDBEARING, CUP TAPERED
-
145132098 HOUSING, AXLE (REAR/MACH)HOUSING, AXLE (REAR/MACH)
-
157080306 FITTING, LUBE W/BALL CHECKFITTING, LUBE W/BALL CHECK
-
163225027 LINK, CONNECT (520 ORD)LINK, CONNECT (520 ORD)
-
175020944 AXLE ASSY., CDS KITAXLE ASSY., CDS KIT
-
185211585-067 GUARD, SPROCKET (38 TEETH/BLACK ALUMINUM)GUARD, SPROCKET (38 TEETH/BLACK ALUMINUM)
-
197547108 NUTNUT
-
205630586 SPACER, SPROCKET GUARDSPACER, SPROCKET GUARD
-
213221111-076 CHAIN, O-RING (76P, 520 ORD)CHAIN, O-RING (76P, 520 ORD)
-
223222109 SPROCKET, AXLE (36 TEETH/REAR)SPROCKET, AXLE (36 TEETH/REAR)
-
237512404 BOLTBOLT
-
241520258 HUB ASSY., SPROCKET LOCKING (INCL. 6)HUB ASSY., SPROCKET LOCKING (INCL. 6)
