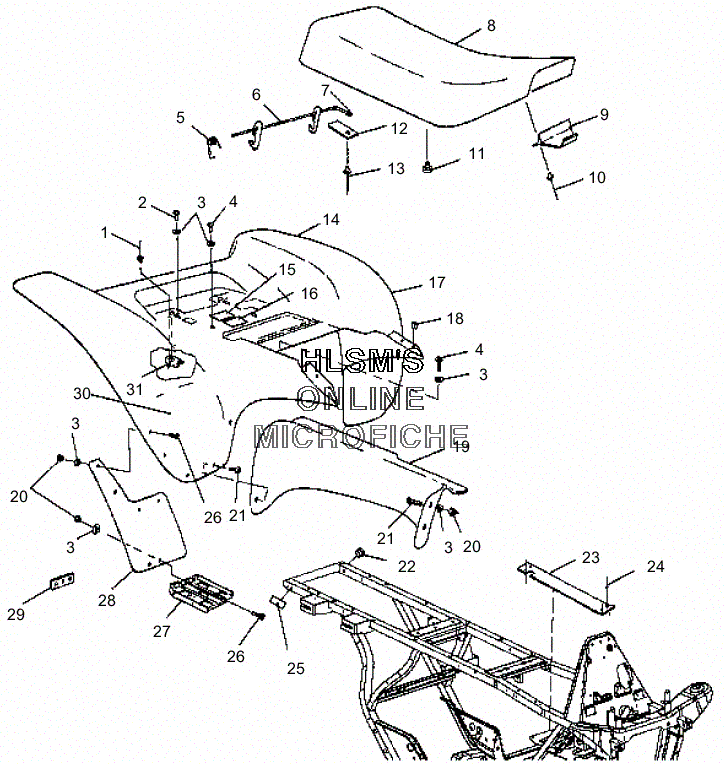

FENDER - REAR W/ SEAT для Polaris SCRAMBLER 400 (A00BG38CA) - 2000 года выпуска`
-
№АртикулНазвание
-
17621472 RIVETRIVET
-
27512232 BOLTBOLT
-
37555859 WASHER, FLATWASHER, FLAT
-
47512242 SCREWSCREW
-
57041607 SPRING, LATCH LIGHTSPRING, LATCH LIGHT
-
61040412 LATCH, SEATBACKLATCH, SEATBACK
-
75411392 CAP, SEATLATCH (GEN 3)CAP, SEATLATCH (GEN 3)
-
82682453-288 SEAT, ''POLARIS'' (RED W/WHITE)SEAT, ''POLARIS'' (RED W/WHITE)
-
82681769-288 COVER, SEAT (BLAZE RED)COVER, SEAT (BLAZE RED)
-
95431986 TONGUE, SEATTONGUE, SEAT
-
107621479 RIVETRIVET
-
115410414 BUMPER, RUBBERBUMPER, RUBBER
-
125211033 BRACKET, LEVER RETAINERBRACKET, LEVER RETAINER
-
137621403 BLIND RIVETBLIND RIVET
-
145810991 FOIL, FENDER SMALL (REAR)FOIL, FENDER SMALL (REAR)
-
157073761 DECAL, CARBUREATOR INFO.DECAL, CARBUREATOR INFO.
-
167072791 DECAL, FILTER ELEMENTDECAL, FILTER ELEMENT
-
175432820-288 FENDER (REAR/GEN 3/BLAZING RED)FENDER (REAR/GEN 3/BLAZING RED)
-
187670057 NUT, SPEEDNUT, SPEED
-
195431869-070 SHIELD, MUFFLER/FOIL ASSY. (GEN3)SHIELD, MUFFLER/FOIL ASSY. (GEN3)
-
195811113 FOIL, FOAMFOIL, FOAM
-
207542122 NUT, LOCKNUT, LOCK
-
217517264 SCREWSCREW
-
225432831 PLUG, ENDCAP RIBBEDPLUG, ENDCAP RIBBED
-
235241403-067 GUARD, CLUTCH (BLACK)GUARD, CLUTCH (BLACK)
-
247661638 RIVET, INTERLOCKRIVET, INTERLOCK
-
252670133 REFLECTOR ASSY. (RED)REFLECTOR ASSY. (RED)
-
267512282 BOLT (BLACK)BOLT (BLACK)
-
285850147 MUDFLAP (REAR/LEFT)MUDFLAP (REAR/LEFT)
-
285850148 MUDFLAP (REAR/RIGHT)MUDFLAP (REAR/RIGHT)
-
295211131-067 BRACKET, MUD FLAP (LEFT)BRACKET, MUD FLAP (LEFT)
-
305810957 FOIL, FENDER (REAR)FOIL, FENDER (REAR)
-
315220880 BRACKET, HOLDDOWN (REAR)BRACKET, HOLDDOWN (REAR)
