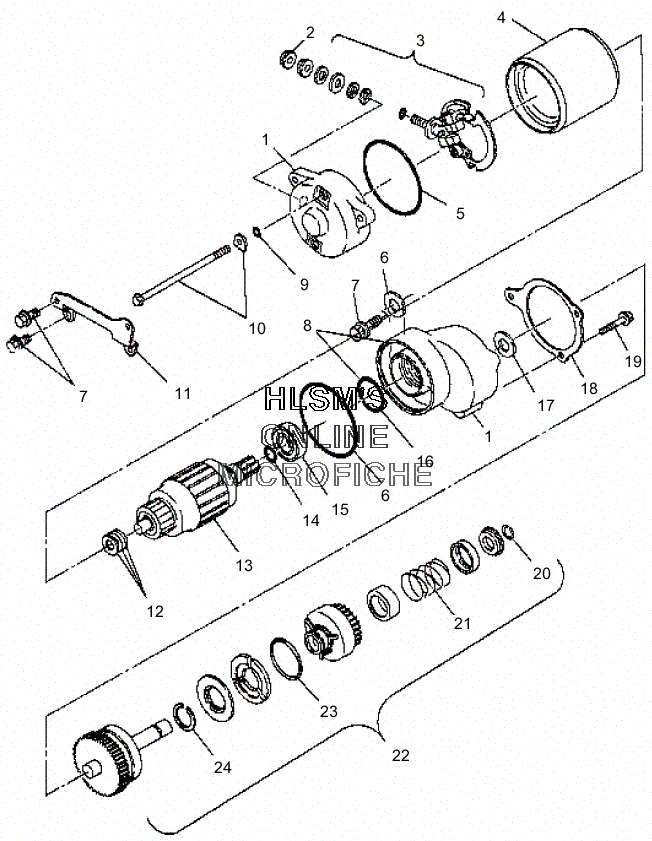

STARTING MOTOR для Polaris SCRAMBLER 400 (A00BG38CA) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    3085032 COVER, STARTER (REAR)
    COVER, STARTER (REAR)
  • 2
    3083649 NUT, FLANGE
    NUT, FLANGE
  • 3
    3084406 BRUSH, COMPL. 2-POLE
    BRUSH, COMPL. 2-POLE
  • 4
    3085392 MOTOR ASSY., STARTER (INCL. 1-5,8-10,12-17,20-24)
    MOTOR ASSY., STARTER (INCL. 1-5,8-10,12-17,20-24)
  • 4
    3085393 STARTER MOTOR ASSY. (INCL. 1-5,8-10,12-16)
    STARTER MOTOR ASSY. (INCL. 1-5,8-10,12-16)
  • 5
    3084405 RING, RUBBER
    RING, RUBBER
  • 6
    3082758 WASHER, FLAT
    WASHER, FLAT
  • 7
    3086782 BOLT, FLANGE
    BOLT, FLANGE
  • 8
    3085305 COVER (FRONT) (INCL. 16)
    COVER (FRONT) (INCL. 16)
  • 9
    3084408 O-RING
    O-RING
  • 10
    3084407 BOLT, THROUGH
    BOLT, THROUGH
  • 11
    3086780 BRACKET
    BRACKET
  • 12
    3083754 WASHER SET
    WASHER SET
  • 13
    3084404 ARMATURE ASSY. (INCL. 14,15)
    ARMATURE ASSY. (INCL. 14,15)
  • 14
    3083934 O-RING
    O-RING
  • 15
    3083777 BALL BEARING
    BALL BEARING
  • 16
    3083741 O-RING
    O-RING
  • 17
    3083737 WASHER
    WASHER
  • 18
    3085283 GASKET, STARTER (NON-ASBESTOS)
    GASKET, STARTER (NON-ASBESTOS)
  • 19
    3086781 BOLT, FLANGE
    BOLT, FLANGE
  • 20
    3084409 CLIP
    CLIP
  • 21
    3084410 SPRING, RETURN
    SPRING, RETURN
  • 22
    3085394 ASSY., GEAR SHAFT (INCL. 17,20-24)
    ASSY., GEAR SHAFT (INCL. 17,20-24)
  • 23
    3084411 SPRING, WEIGHT
    SPRING, WEIGHT
  • 24
    3084412 CLIP
    CLIP
