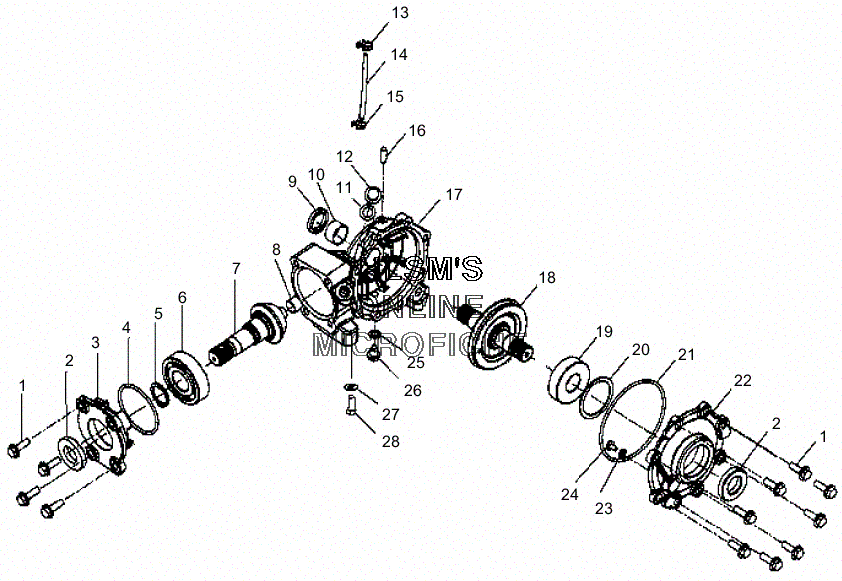

FRONT - GEARCASE (BUILT AFTER APRIL 23- 1999) для Polaris SCRAMBLER 400 (A00BG38CA) - 2000 года выпуска`
-
№АртикулНазвание
-
01341323 GEARCASE, ASSY. (FRONT) (INCL. 1-12,16-26) (BUILT AFTER APRIL 23, 1999)GEARCASE, ASSY. (FRONT) (INCL. 1-12,16-26) (BUILT AFTER APRIL 23, 1999)
-
13233252 SCREWSCREW
-
23233248 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
33233701 INPUT COVER, HOUSING (FRONT)INPUT COVER, HOUSING (FRONT)
-
43233700 O-RINGO-RING
-
53233699 RING, RETAININGRING, RETAINING
-
63233589 BEARING, BALLBEARING, BALL
-
73233726 PINION, INPUT (14 TEETH)PINION, INPUT (14 TEETH)
-
83233541 BUSHING, GARLOCKBUSHING, GARLOCK
-
93233319 SEALSEAL
-
103233697 BUSHINHG, GARLOCKBUSHINHG, GARLOCK
-
113233324 WASHERWASHER
-
123233711 PLUG, OIL FILLPLUG, OIL FILL
-
137080409 CLAMP, WIRE ROUTINGCLAMP, WIRE ROUTING
-
148450003-1525 FUEL LINE (1/4 ID 1525 CM.) (OPT)FUEL LINE (1/4 ID 1525 CM.) (OPT)
-
157080307 CLAMPCLAMP
-
163233524 TUBE, VENTTUBE, VENT
-
173233696 GEARCASEGEARCASE
-
183233725 SHAFT, OUTPUT (29 TEETH)SHAFT, OUTPUT (29 TEETH)
-
193233020 BEARINGBEARING
-
203233554 SHIM (OPT)SHIM (OPT)
-
213233693 O-RINGO-RING
-
223233724 COVER, OUTPUTCOVER, OUTPUT
-
233233583 SHIM (OPT)SHIM (OPT)
-
243233582 THRUST BUTTONTHRUST BUTTON
-
253233254 PLUG, WASHERPLUG, WASHER
-
263233253 PLUG, HEXAGON FLANGEPLUG, HEXAGON FLANGE
-
277552603 WASHERWASHER
-
287512492 SCREWSCREW
