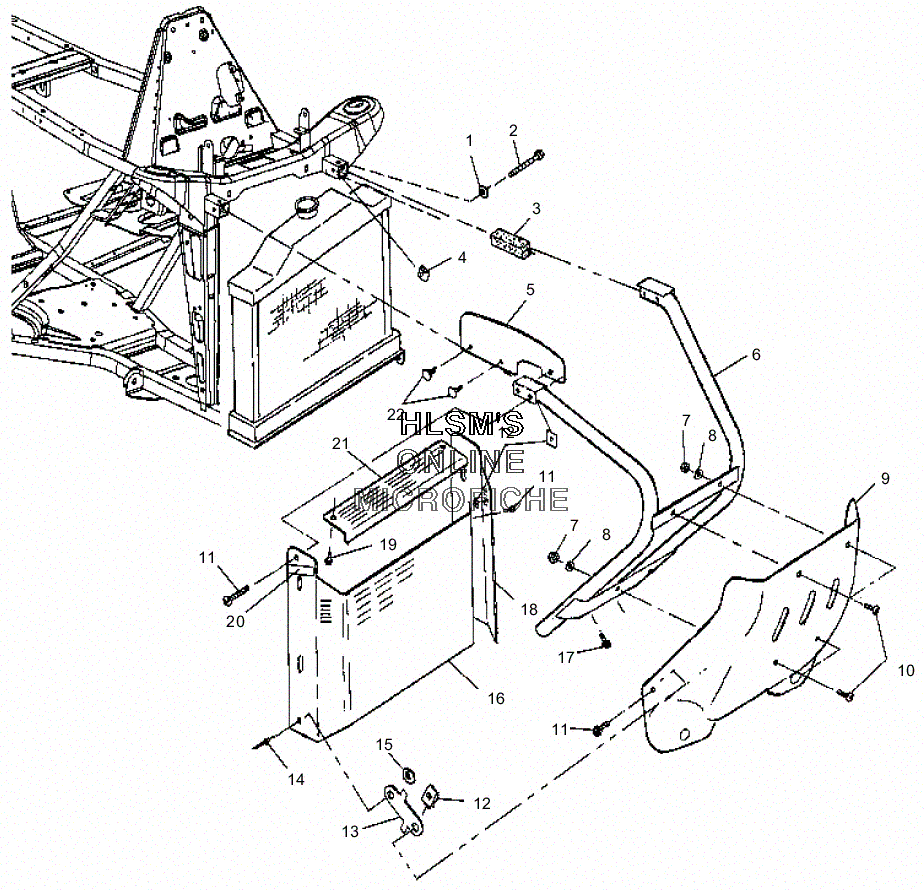

BUMPER AND SHIELDS - FRONT для Polaris SCRAMBLER 400 (A00BG38CA) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7558402 WASHER, STEEL
    WASHER, STEEL
  • 2
    7512329 BOLT
    BOLT
  • 3
    5810467 PLUG, FRAME
    PLUG, FRAME
  • 4
    7547071 NUT
    NUT
  • 5
    5850140 SHIELD, DEFLECTOR (LEFT)
    SHIELD, DEFLECTOR (LEFT)
  • 5
    5850141 SHIELD, DEFLECTOR (RIGHT)
    SHIELD, DEFLECTOR (RIGHT)
  • 6
    1012773-067 BUMPER (FRONT/GEN 3/BLACK)
    BUMPER (FRONT/GEN 3/BLACK)
  • 7
    7542122 NUT, LOCK
    NUT, LOCK
  • 8
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 9
    5432378-070 PLATE, SKID BUMPER (BLACK)
    PLATE, SKID BUMPER (BLACK)
  • 10
    7517264 SCREW
    SCREW
  • 11
    7517561 SCREW
    SCREW
  • 12
    7547085 NUT, U-TYPE
    NUT, U-TYPE
  • 13
    5242694-067 BRACKET, RADIATOR SHIELD (BLACK)
    BRACKET, RADIATOR SHIELD (BLACK)
  • 14
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 15
    7558201 WASHER, FLAT
    WASHER, FLAT
  • 16
    5242997-067 SHIELD, RADIATOR (SIDE/RIGHT/ST/BLACK)
    SHIELD, RADIATOR (SIDE/RIGHT/ST/BLACK)
  • 17
    7515399 SCREW
    SCREW
  • 18
    5242996-067 SHIELD, RADIATOR (SIDE/LEFT/ST/BLACK)
    SHIELD, RADIATOR (SIDE/LEFT/ST/BLACK)
  • 19
    7512252 SCREW
    SCREW
  • 20
    2670134 REFLECTOR ASSY. (AMBER)
    REFLECTOR ASSY. (AMBER)
  • 21
    5242683-067 SHIELD, RADIATOR (UPPER/ST/BLACK)
    SHIELD, RADIATOR (UPPER/ST/BLACK)
  • 22
    7670088 CLIP, PLASTIC DART NYLON
    CLIP, PLASTIC DART NYLON
