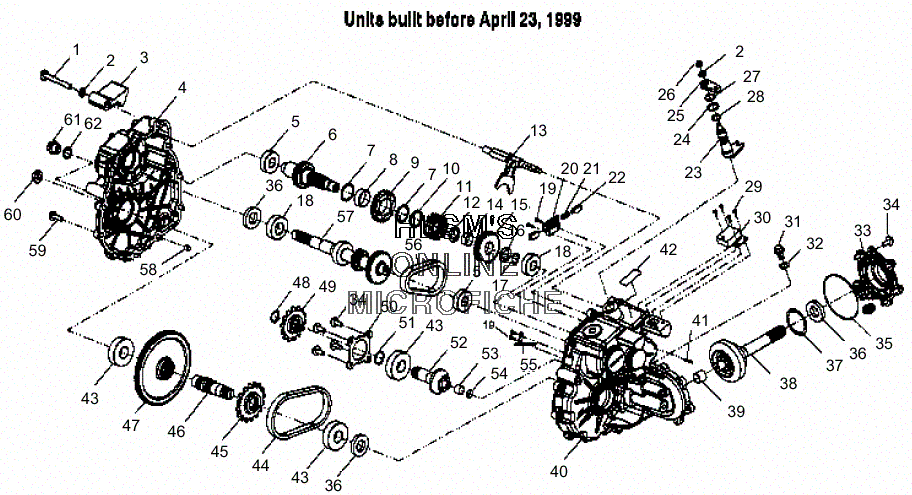

GEARCASE (BUILT BEFORE APRIL 23- 1999) для Polaris SCRAMBLER 400 (A00BG38CA) - 2000 года выпуска

  • №
    Артикул
    Название
  • 0
    1341285 GEARCASE, HR, CDS (INCL. 1-62) (BUILT BEFORE APRIL 23, 1999)
    GEARCASE, HR, CDS (INCL. 1-62) (BUILT BEFORE APRIL 23, 1999)
  • 1
    3233525 SCREW
    SCREW
  • 2
    3233054 WASHER
    WASHER
  • 3
    5432856 DAMPENER, CARB. VIBRATION, SCB
    DAMPENER, CARB. VIBRATION, SCB
  • 4
    3233632 GEARCASE (LEFT)
    GEARCASE (LEFT)
  • 5
    3233018 BEARING
    BEARING
  • 6
    3233531 SHAFT, REVERSE (33 TEETH)
    SHAFT, REVERSE (33 TEETH)
  • 7
    3233012 WASHER
    WASHER
  • 8
    3233014 BEARING, NEEDLE
    BEARING, NEEDLE
  • 9
    3233532 SPROCKET (24 TEETH, 12-POINT)
    SPROCKET (24 TEETH, 12-POINT)
  • 10
    3233029 RING, RETAINING
    RING, RETAINING
  • 11
    3233533 DOG, ENGAGE HI/REV (12 POINT)
    DOG, ENGAGE HI/REV (12 POINT)
  • 12
    3233010 WASHER
    WASHER
  • 13
    3233633 FORK, SHIFT HIGH/REV
    FORK, SHIFT HIGH/REV
  • 14
    3233534 BUSHING, GARLOCK
    BUSHING, GARLOCK
  • 15
    3233535 GEAR (30 TEETH, 12-POINT)
    GEAR (30 TEETH, 12-POINT)
  • 16
    3233176 WASHER
    WASHER
  • 17
    3233177 RING, RETAINING
    RING, RETAINING
  • 18
    3233019 BEARING
    BEARING
  • 19
    3233033 SCREW, TAPPING W/LOCK WASHER
    SCREW, TAPPING W/LOCK WASHER
  • 20
    3233309 BRACKET, INTERLOCK
    BRACKET, INTERLOCK
  • 21
    3233550 SPRING, SHIFT.INTERLOCK
    SPRING, SHIFT.INTERLOCK
  • 22
    3233308 PIN, INTERLOCK
    PIN, INTERLOCK
  • 23
    3233549 SHAFT, SHIFT
    SHAFT, SHIFT
  • 24
    3233040 WASHER
    WASHER
  • 25
    3233547 BELLCRANK
    BELLCRANK
  • 26
    3233055 NUT
    NUT
  • 27
    3233045 RING, RETAINING
    RING, RETAINING
  • 28
    3233548 O-RING
    O-RING
  • 29
    3233616 SCREW, TAP
    SCREW, TAP
  • 30
    3233635 SWITCH, H/R ITW
    SWITCH, H/R ITW
  • 31
    3233325 PLUG, OIL FILL
    PLUG, OIL FILL
  • 32
    3233324 WASHER
    WASHER
  • 33
    3233556 COVER, SNORKEL
    COVER, SNORKEL
  • 34
    3233539 SCREW
    SCREW
  • 35
    3233555 O-RING
    O-RING
  • 36
    3233248 SEAL, TRIPLE LIP
    SEAL, TRIPLE LIP
  • 37
    3233554 SHIM (OPT)
    SHIM (OPT)
  • 38
    3233553 GEAR, SNORKEL
    GEAR, SNORKEL
  • 39
    3233552 BUSHING, GARLOCK
    BUSHING, GARLOCK
  • 40
    3233634 GEARCASE (RIGHT/HR)
    GEARCASE (RIGHT/HR)
  • 41
    3233037 VENT
    VENT
  • 41
    8360009-600 FUEL LINE (1/8 ID 600 CM) (OPT)
    FUEL LINE (1/8 ID 600 CM) (OPT)
  • 42
    3233636 DECAL, SWITCH
    DECAL, SWITCH
  • 43
    3233020 BEARING
    BEARING
  • 44
    3233546 CHAIN, ROLLER
    CHAIN, ROLLER
  • 45
    3233545 SPROCKET (16/26 TEETH)
    SPROCKET (16/26 TEETH)
  • 46
    3233544 SHAFT, OUTPUT
    SHAFT, OUTPUT
  • 47
    3233543 GEAR, HCR. (96 TEETH)
    GEAR, HCR. (96 TEETH)
  • 48
    3233537 RING, RETAINING
    RING, RETAINING
  • 49
    3233538 SPROCKET (14/22 TEETH)
    SPROCKET (14/22 TEETH)
  • 50
    3233263 COVER, DRIVE BEARING (CENTER)
    COVER, DRIVE BEARING (CENTER)
  • 51
    3233306 RING, RETAINING
    RING, RETAINING
  • 52
    3233540 SHAFT, PINION (13 TEETH)
    SHAFT, PINION (13 TEETH)
  • 53
    3233541 BUSHING, GARLOCK
    BUSHING, GARLOCK
  • 54
    3233542 WASHER, THRUST
    WASHER, THRUST
  • 55
    3233043 DEFLECTOR, OIL
    DEFLECTOR, OIL
  • 56
    3233036 CHAIN, SILENT (34 P)
    CHAIN, SILENT (34 P)
  • 57
    3233536 SHAFT, INPUT HI/REV (HCR) (EXT.)
    SHAFT, INPUT HI/REV (HCR) (EXT.)
  • 58
    3233529 PIPE, KNOCK
    PIPE, KNOCK
  • 59
    3233252 SCREW
    SCREW
  • 60
    3233527 BUSHING, PIVOT
    BUSHING, PIVOT
  • 61
    3233448 PLUG
    PLUG
  • 62
    3233035 WASHER
    WASHER
