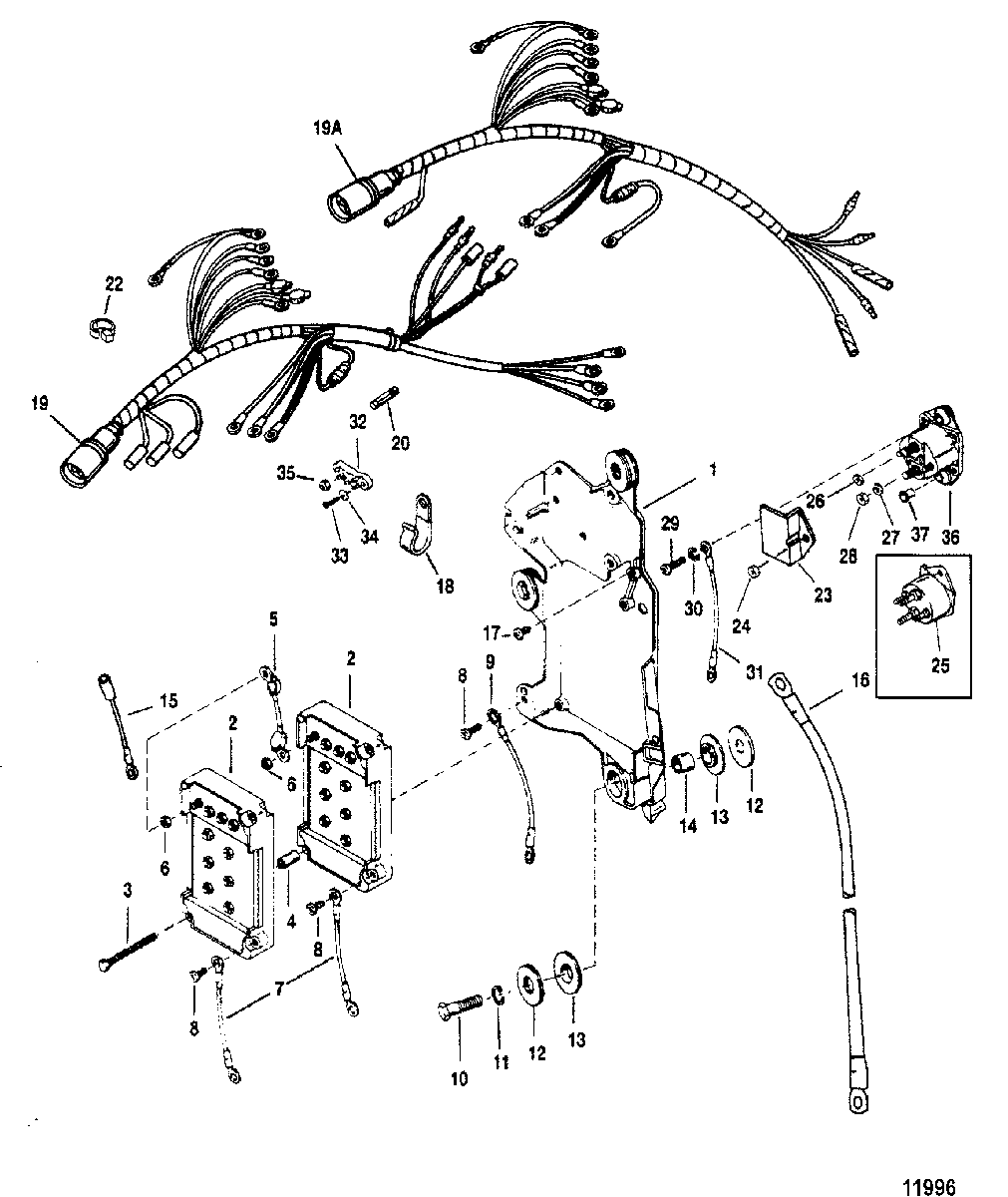

Wiring Harness/Starter Solenoid для Mercury - V-200XRI (EFI) 0D082000 THRU 0G303045

  • №
    Артикул
    Название
  • 1
    434292 IGNITION PLATE
    IGNITION PLATE
  • 2
    332-7778A12 SWITCHBOX ASSEMBLY
    SWITCHBOX ASSEMBLY
  • 3
    10-13669 SCREW, (#12-24 x 2.00)
    SCREW, (#12-24 x 2.00)
  • 4
    23-94453 BUSHING
    BUSHING
  • 5
    84-62310A2 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 6
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 7
    84-60871A10 WIRE ASSEMBLY
    WIRE ASSEMBLY
  • 8
    10-878607 SCREW, (#10-16 x .380)
    SCREW, (#10-16 x .380)
  • 9
    84-65999A3 CABLE ASSEMBLY, Black, Black
    CABLE ASSEMBLY, Black, Black
  • 10
    10-60411 SCREW, (1.25)
    SCREW, (1.25)
  • 11
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 12
    12-36042 WASHER
    WASHER
  • 13
    12-67264 WASHER, (Rubber), Rubber
    WASHER, (Rubber), Rubber
  • 14
    23-67268 BUSHING
    BUSHING
  • 15
    84-91865A1 CABLE ASSEMBLY (3" - White/Black)
    CABLE ASSEMBLY (3" - White/Black)
  • 15
    84-88528A2 CABLE ASSEMBLY (6" - Red/White)
    CABLE ASSEMBLY (6" - Red/White)
  • 16
    84-88439A3 CABLE ASSEMBLY, Positive - Battery
    CABLE ASSEMBLY, Positive - Battery
  • 16
    84-88439A4 CABLE ASSEMBLY, Battery - Negative
    CABLE ASSEMBLY, Battery - Negative
  • 17
    10-87926 SCREW, (#10-32 x .500)
    SCREW, (#10-32 x .500)
  • 18
    54-814634 CLAMP, Old Design
    CLAMP, Old Design
  • 19A
    84-826730A4 HARNESS ASSEMBLY, Engine Wiring
    SN# 0G201875 & Up
    HARNESS ASSEMBLY, Engine Wiring
    SN# 0G201875 & Up
  • 19
    84-96220A16 HARNESS ASSEMBLY, Engine Wiring
    SN# 0G201874 & Below
    HARNESS ASSEMBLY, Engine Wiring
    SN# 0G201874 & Below
  • 20
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 22
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 23
    85-78866 INSULATOR
    INSULATOR
  • 24
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 25
    89-853654A1 SOLENOID ASSEMBLY, Starter
    (Design I)
    SOLENOID ASSEMBLY, Starter
    (Design I)
  • 26
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 27
    13-53166 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 28
    11-68292 NUT, (.312-18)
    NUT, (.312-18)
  • 29
    10-455611 SCREW, (.250-20 x 1.12), Use With Ref. #36
    SCREW, (.250-20 x 1.12), Use With Ref. #36
  • 29
    10-31716 SCREW, (.250-20 x .620), Use With Ref. #25
    SCREW, (.250-20 x .620), Use With Ref. #25
  • 30
    13-26992 LOCKWASHER, (.250) Stainless Steel, Use With Ref. #25
    LOCKWASHER, (.250) Stainless Steel, Use With Ref. #25
  • 31
    84-65999A2 CABLE ASSEMBLY, Black, Black
    CABLE ASSEMBLY, Black, Black
  • 32
    86-194372 TERMINAL BLOCK
    TERMINAL BLOCK
  • 33
    10-38055 SCREW, (.190-32 x .620)
    SCREW, (.190-32 x .620)
  • 34
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 35
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 36
    89-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
    (Design II)
    SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
    (Design II)
  • 37
    23-818968 BUSHING
    (Design II)
    BUSHING
    (Design II)
