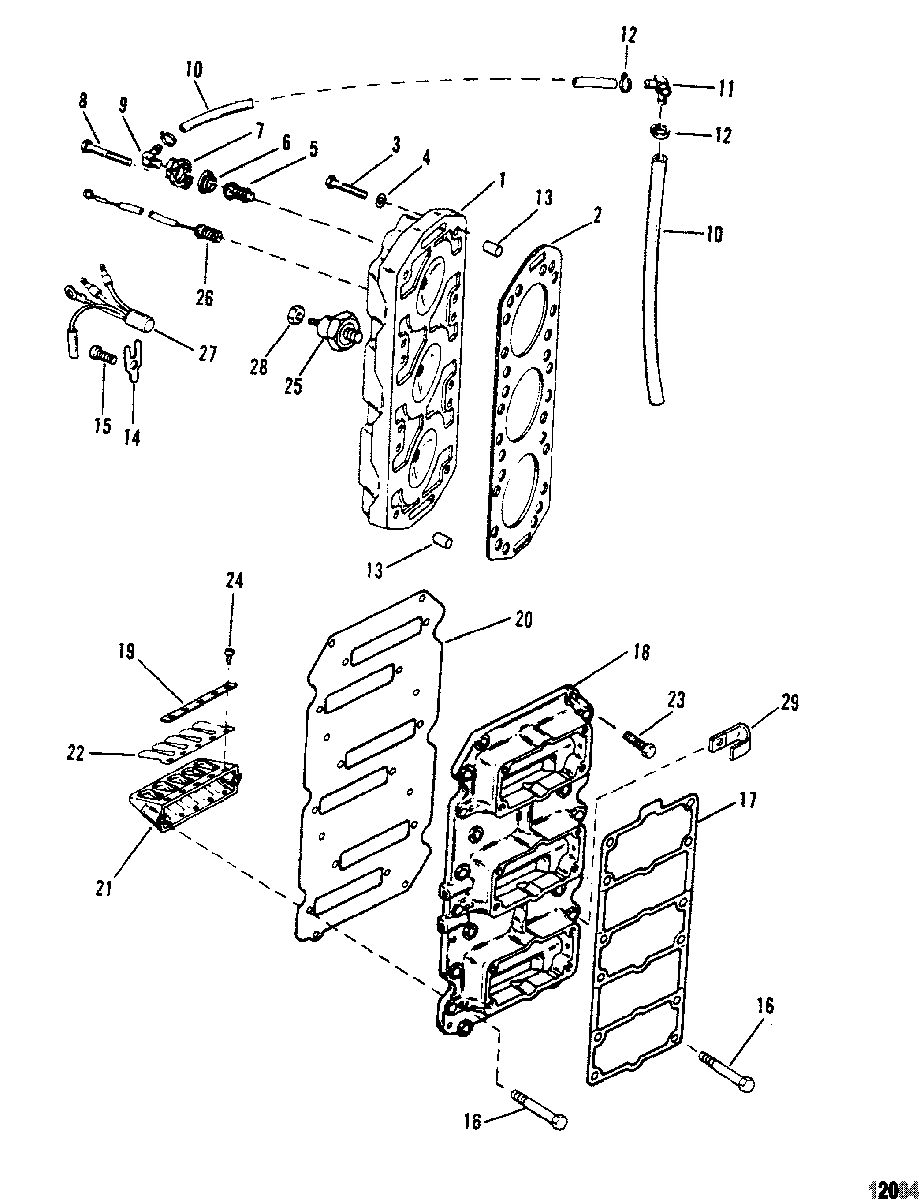

Reed Block And Cylinder Head для Mercury - V-200XRI (EFI) 0D082000 THRU 0G303045

  • №
    Артикул
    Название
  • 1
    900-8M0143213 CYLINDER HEAD (Casting #18488C3)
    (150) SN# 0D262673 & Below
    CYLINDER HEAD (Casting #18488C3)
    (150) SN# 0D262673 & Below
  • 1
    900-8M0143213 CYLINDER HEAD (Casting #18488C3)
    (175) SN# 0D262673 & Below
    CYLINDER HEAD (Casting #18488C3)
    (175) SN# 0D262673 & Below
  • 1
    900-8M0143213 CYLINDER HEAD (Casting #18488C3)
    (200) SN# 0D262673 & Below
    CYLINDER HEAD (Casting #18488C3)
    (200) SN# 0D262673 & Below
  • 1
    18488F2 HEAD (Casting #18488C2)
    (200XL/CXL) SN# 0D246107 THRU 0G052594
    HEAD (Casting #18488C2)
    (200XL/CXL) SN# 0D246107 THRU 0G052594
  • 1
    900-8M0143213 CYLINDER HEAD (Casting #18488C4)
    (150/175) SN# D262674 & Up
    CYLINDER HEAD (Casting #18488C4)
    (150/175) SN# D262674 & Up
  • 1
    900-8M0143213 CYLINDER HEAD (Cast #18488C4)
    (200) SN# D26674 THRU G052594
    CYLINDER HEAD (Cast #18488C4)
    (200) SN# D26674 THRU G052594
  • 1
    18488F2 CYLINDER HEAD ASSEMBLY (Casting #18488C5)
    (200) SN# G052595 & Up
    CYLINDER HEAD ASSEMBLY (Casting #18488C5)
    (200) SN# G052595 & Up
  • 2
    27-822844T05 GASKET
    GASKET
  • 3
    10-98534 SCREW, (.375-16 x 2.30)
    (QTY. OF 24 ON 150/175)
    SCREW, (.375-16 x 2.30)
    (QTY. OF 24 ON 150/175)
  • 3
    10-13450 SCREW, (.375-16 x 2.30)
    (200) SN# G146482 & Below
    SCREW, (.375-16 x 2.30)
    (200) SN# G146482 & Below
  • 3
    10-827426 SCREW
    (200) SN# G146483 & Up
    SCREW
    (200) SN# G146483 & Up
  • 4
    12-25909 WASHER, (.406 x .812 x .065), Use Where Applicable
    WASHER, (.406 x .812 x .065), Use Where Applicable
  • 5
    75692 THERMOSTAT
    THERMOSTAT
  • 6
    27-62386001 GASKET
    GASKET
  • 7
    90390A1 COVER KIT
    COVER KIT
  • 8
    10-35386 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 9
    22-687271 FITTING, (.250-18) 90 Degree - Brass
    FITTING, (.250-18) 90 Degree - Brass
  • 10
    32-77653101 HOSE, (24.500 Inches Bulk)
    HOSE, (24.500 Inches Bulk)
  • 11
    22-68728 FITTING
    FITTING
  • 12
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 13
    17-63779 PIN, Dowel (.250 x .625)
    PIN, Dowel (.250 x .625)
  • 14
    137151 RETAINER
    RETAINER
  • 15
    10-98257 SCREW, (.312-18 x .500)
    SCREW, (.312-18 x .500)
  • 16
    10-55715 SCREW, (.250-20 x .880)
    SCREW, (.250-20 x .880)
  • 16
    10-90197 SCREW, (.250-20 x 1.125)
    SCREW, (.250-20 x 1.125)
  • -
    27-815791A92 GASKET SET, Engine
    GASKET SET, Engine
  • 17
    27-167371 GASKET
    GASKET
  • 18
    17735A2 ADAPTOR PLATE ASSEMBLY
    ADAPTOR PLATE ASSEMBLY
  • 19
    961832 CLAMP, Reed
    CLAMP, Reed
  • 20
    27-146972 GASKET
    GASKET
  • 21
    75953 REED BLOCK
    REED BLOCK
  • 22
    34-75362A1 REED ASSEMBLY
    REED ASSEMBLY
  • 23
    10-28668 SCREW, (.250-20 x .875) Stainless Steel
    SCREW, (.250-20 x .875) Stainless Steel
  • 24
    10-823588 SCREW, (#8-32 x .250)
    SCREW, (#8-32 x .250)
  • 25
    825164A1 SENSOR ASSEMBLY, Detonation
    Black (200) SN# D239647 & Below
    SENSOR ASSEMBLY, Detonation
    Black (200) SN# D239647 & Below
  • 25
    825164 SENSOR, Detonation
    Gray (200) SN# D239648 THRU G146482
    SENSOR, Detonation
    Gray (200) SN# D239648 THRU G146482
  • 25
    826858 SENSOR, Knock
    (200) SN# G146483 & Up
    SENSOR, Knock
    (200) SN# G146483 & Up
  • 26
    97465 SENDER, Temperature, Starboard
    SENDER, Temperature, Starboard
  • 27
    13536A6 SENSOR ASSEMBLY, Temperature, Port (4-Wire)
    SENSOR ASSEMBLY, Temperature, Port (4-Wire)
  • 28
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 29
    54-55098 J CLIP
    J CLIP
  • -
    27-815791A92 GASKET SET, Engine
    GASKET SET, Engine
