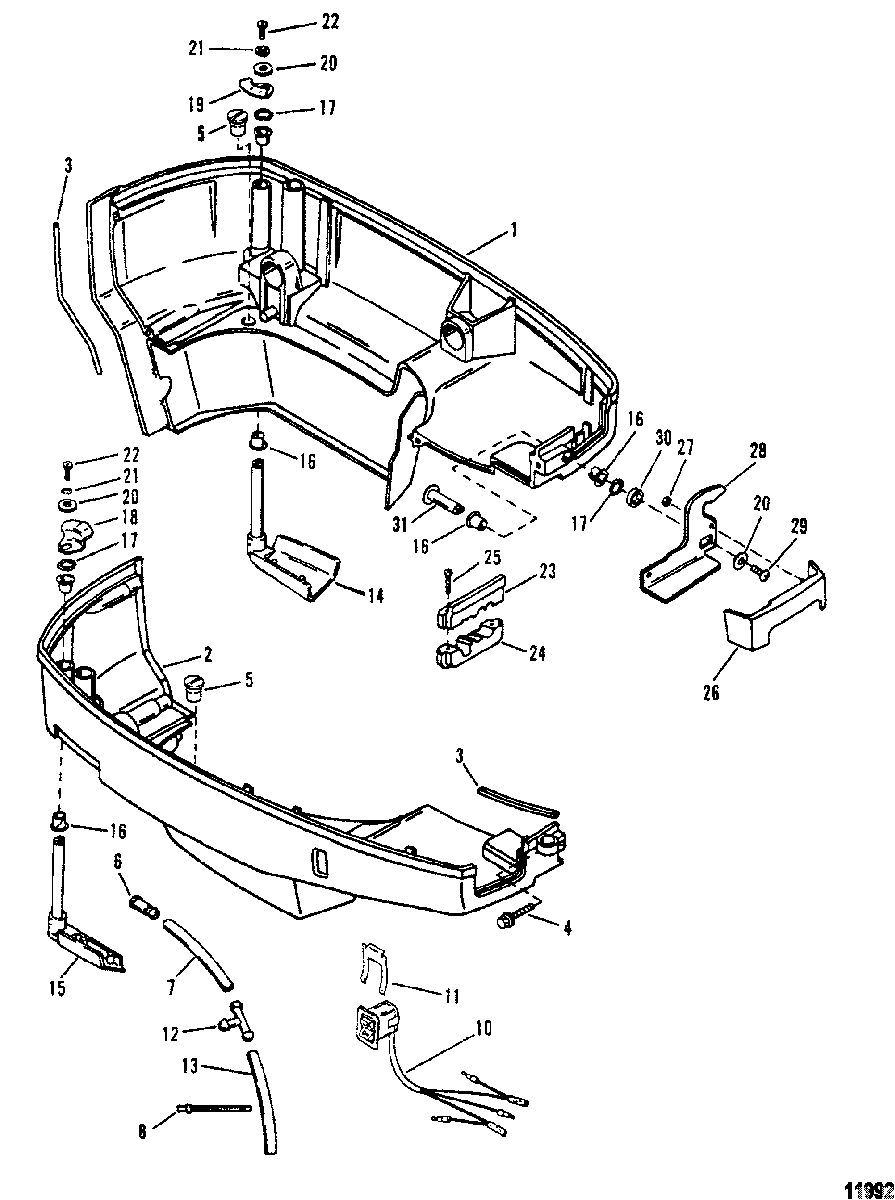

Bottom Cowl для Mercury - V-200XRI (EFI) 0D082000 THRU 0G303045

  • №
    Артикул
    Название
  • 1
    2197-9744A16 BOTTOM COWL ASSEMBLY, Black
    (Port)
    BOTTOM COWL ASSEMBLY, Black
    (Port)
  • 1
    2197-9744A16 BOTTOM COWL ASSEMBLY , Gray
    (Port)
    BOTTOM COWL ASSEMBLY , Gray
    (Port)
  • 1
    2197-9744A16 BOTTOM COWL ASSEMBLY, Tracker
    (Port)
    BOTTOM COWL ASSEMBLY, Tracker
    (Port)
  • 2
    2197-9745A5 BOTTOM COWL ASSEMBLY, Black
    (Starboard)
    BOTTOM COWL ASSEMBLY, Black
    (Starboard)
  • 2
    2197-9745A6 BOTTOM COWL ASSEMBLY, Gray
    (Starboard)
    BOTTOM COWL ASSEMBLY, Gray
    (Starboard)
  • 2
    2197-9745A7 BOTTOM COWL ASSEMBLY, Tracker
    (Starboard)
    BOTTOM COWL ASSEMBLY, Tracker
    (Starboard)
  • 3
    18701A1 SEAL KIT, Bottom Cowls
    SEAL KIT, Bottom Cowls
  • 4
    10-18699 SCREW, (.250-20 x 1.320), Cowl
    (Starboard)
    SCREW, (.250-20 x 1.320), Cowl
    (Starboard)
  • 5
    21-817519A1 CHECK VALVE ASSEMBLY, Drain
    CHECK VALVE ASSEMBLY, Drain
  • 6
    22-813613 FITTING, Tell Tale
    FITTING, Tell Tale
  • 7
    32-8M0108355 LINE, (57.00 Inches Bulk), Tell Tale
    LINE, (57.00 Inches Bulk), Tell Tale
  • 8
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 10
    87-8M0042301 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 11
    8M0032848 RETAINER
    RETAINER
  • 12
    22-815914 T-FITTING, Tell Tale
    T-FITTING, Tell Tale
  • 13
    32-77653101 HOSE, (24.500 Inches Bulk)
    HOSE, (24.500 Inches Bulk)
  • 14
    19648A2 HANDLE ASSEMBLY, Black
    (Port)
    HANDLE ASSEMBLY, Black
    (Port)
  • 14
    19648A2 HANDLE ASSEMBLY, Gray
    (Port)
    HANDLE ASSEMBLY, Gray
    (Port)
  • 14
    19648A7 HANDLE ASSEMBLY, Tracker
    (Port)
    HANDLE ASSEMBLY, Tracker
    (Port)
  • 15
    19647A3 HANDLE ASSEMBLY, Black
    (Starboard)
    HANDLE ASSEMBLY, Black
    (Starboard)
  • 15
    19647A3 HANDLE ASSEMBLY, Gray
    (Starboard)
    HANDLE ASSEMBLY, Gray
    (Starboard)
  • 15
    19647A7 HANDLE ASSEMBLY, Tracker
    (Starboard)
    HANDLE ASSEMBLY, Tracker
    (Starboard)
  • 16
    23-65830 NYLINER
    NYLINER
  • 17
    13-99611 WAVE WASHER
    WAVE WASHER
  • 18
    19369 PAWL
    (Starboard)
    PAWL
    (Starboard)
  • 19
    19370 PAWL
    (Port)
    PAWL
    (Port)
  • 20
    12-69057 WASHER, (.281 x .734 x .063)
    WASHER, (.281 x .734 x .063)
  • 21
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 22
    10-73286 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 23
    54-19749 CLAMP, Upper
    CLAMP, Upper
  • 24
    54-197481 CLAMP, Lower
    CLAMP, Lower
  • 25
    10-92799 SCREW, (#10-16 x 1.12)
    SCREW, (#10-16 x 1.12)
  • 26
    18872A1 COVER ASSEMBLY, Black
    COVER ASSEMBLY, Black
  • 26
    18872A1 COVER ASSEMBLY, Gray
    COVER ASSEMBLY, Gray
  • 26
    18872A4 COVER ASSEMBLY, Tracker
    COVER ASSEMBLY, Tracker
  • 27
    11-8136921 LOCKNUT
    LOCKNUT
  • 28
    8130764 FRONT HANDLE
    FRONT HANDLE
  • 29
    10-181921 SCREW, (.250-20 x .875)
    SCREW, (.250-20 x .875)
  • 30
    23-19666 BUSHING
    BUSHING
  • 31
    18727 ROD
    ROD
