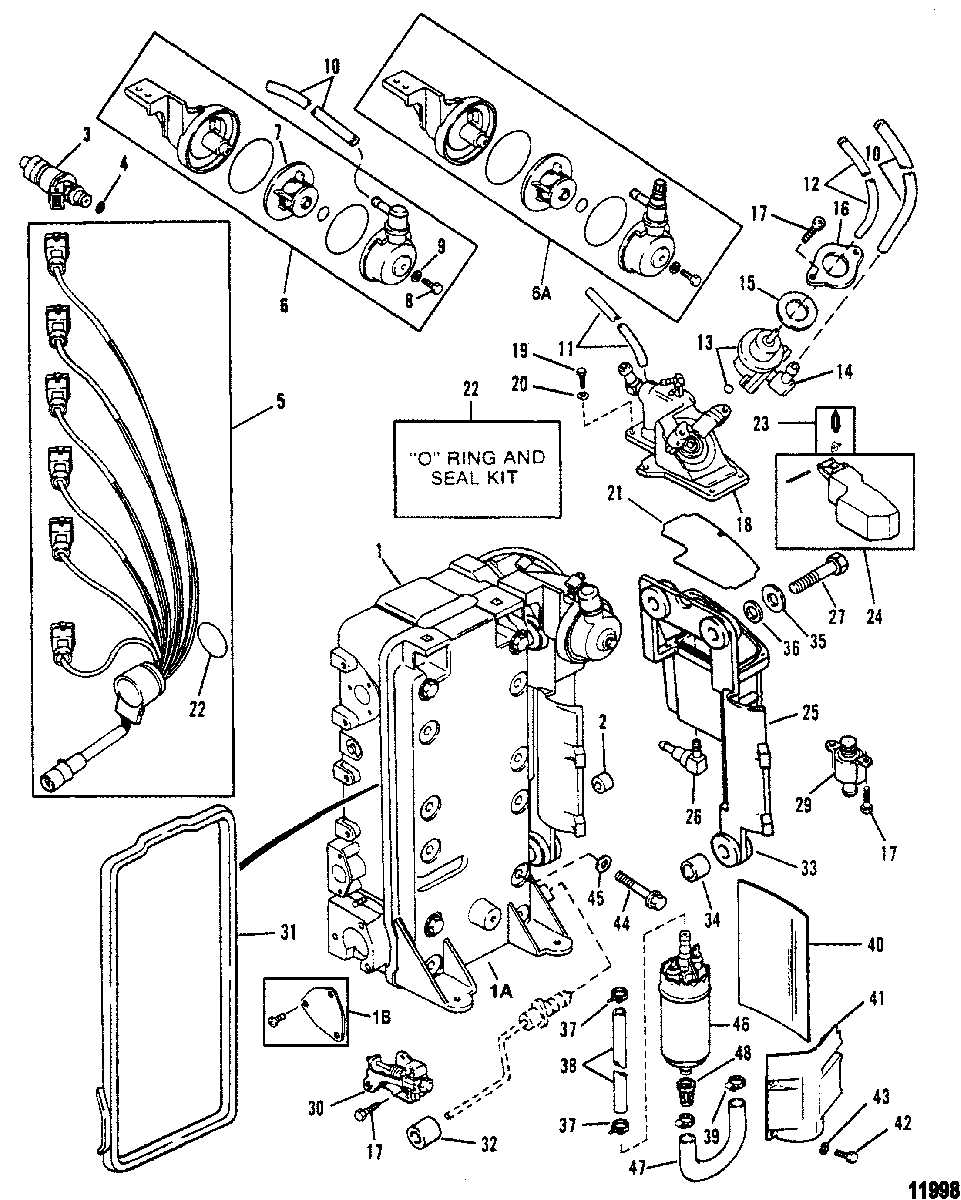

Fuel Management System(Breakdown) для Mercury - V-200XRI (EFI) 0D082000 THRU 0G303045

  • №
    Артикул
    Название
  • -
    14817A19 MANAGEMENT ASSEMBLY, Fuel
    MANAGEMENT ASSEMBLY, Fuel
  • 1
    827693 THROTTLE BODY
    THROTTLE BODY
  • 1A
    827692 COVER
    COVER
  • 1B
    827696 RETAINER KIT
    RETAINER KIT
  • 2
    67748 ROLLER, CAM
    ROLLER, CAM
  • 3
    18715T INJECTOR, Fuel
    INJECTOR, Fuel
  • 4
    35-17422 FILTER, INJECTOR
    FILTER, INJECTOR
  • 5
    84-15443 HARNESS KIT
    HARNESS KIT
  • 6
    35-15442 FILTER KIT, Fuel
    (Design I)
    FILTER KIT, Fuel
    (Design I)
  • 6A
    35-154422 FILTER KIT, Fuel
    (Design II)
    FILTER KIT, Fuel
    (Design II)
  • 7
    35-150282 FILTER, Fuel
    FILTER, Fuel
  • 8
    10-400034 SCREW, (M5 x 14), Filter Cover
    SCREW, (M5 x 14), Filter Cover
  • 9
    13-400255 LOCKWASHER, (M5), Cover Screw
    LOCKWASHER, (M5), Cover Screw
  • 10
    32-1350385 TUBING, (30.00 Inches Bulk) (.50" O.D.)
    TUBING, (30.00 Inches Bulk) (.50" O.D.)
  • 11
    32-9912688 TUBING, (36.00 Inches Bulk) (.125" I.D.)
    TUBING, (36.00 Inches Bulk) (.125" I.D.)
  • 12
    32-892024122 TUBING, (20.00 Feet Bulk) (.0937" I.D.)
    TUBING, (20.00 Feet Bulk) (.0937" I.D.)
  • 13
    15027 REGULATOR, Pressure
    REGULATOR, Pressure
  • 14
    814233 ELBOW KIT
    ELBOW KIT
  • 15
    27-18791 GASKET, Pressure Regulator
    GASKET, Pressure Regulator
  • 16
    814012 PLATE, Pressure Regulator
    PLATE, Pressure Regulator
  • 17
    10-814076 SCREW
    SCREW
  • 18
    814010 COVER KIT
    COVER KIT
  • 19
    10-4001987 SCREW, (M4 x 16), Cover To Seperator
    SCREW, (M4 x 16), Cover To Seperator
  • 20
    13-26995 LOCKWASHER, (#8) Stainless Steel, Cover Screw
    LOCKWASHER, (#8) Stainless Steel, Cover Screw
  • 21
    26-18790 SEAL, Vapor Seperator
    SEAL, Vapor Seperator
  • 22
    15029 O-RING AND SEAL KIT
    O-RING AND SEAL KIT
  • 23
    15446 VALVE KIT, Float
    VALVE KIT, Float
  • 24
    15445 FLOAT KIT
    FLOAT KIT
  • 25
    814011 BODY KIT
    BODY KIT
  • 26
    21-424811 CHECK VALVE
    CHECK VALVE
  • 27
    10-4000332 SCREW, (M6 x 35), Separator
    SCREW, (M6 x 35), Separator
  • 29
    21-18241 CHECK VALVE
    CHECK VALVE
  • 30
    814077 VALVE, Shut-Off
    VALVE, Shut-Off
  • 31
    26-18792 SEAL, Injector Manifold
    SEAL, Injector Manifold
  • 32
    23-19275 SPACER
    SPACER
  • 34
    23-814913 SPACER
    SPACER
  • 35
    12-35280 WASHER, (.255 x .620 x .030) Stainless Steel, Large
    WASHER, (.255 x .620 x .030) Stainless Steel, Large
  • 36
    12-69057 WASHER, (.281 x .734 x .063), Small
    WASHER, (.281 x .734 x .063), Small
  • 37
    54-13791 CLAMP, (15.7), Hose
    CLAMP, (15.7), Hose
  • 38
    32-1350385 TUBING, (30.00 Inches Bulk) (Cut to 1.75 Inch Length)
    TUBING, (30.00 Inches Bulk) (Cut to 1.75 Inch Length)
  • 39
    54-F698772 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 40
    14639 BLANKET, Fuel Pump
    BLANKET, Fuel Pump
  • 41
    14640T COVER, Fuel Pump
    COVER, Fuel Pump
  • 42
    10-32228 SCREW, (#10-32 x .625)
    SCREW, (#10-32 x .625)
  • 43
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 44
    10-845674 SCREW, (.250-20 x 4)
    SCREW, (.250-20 x 4)
  • 45
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 46
    14307T01 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 47
    32-146332 HOSE
    HOSE
  • 48
    35-885188 FILTER, Fuel
    FILTER, Fuel
