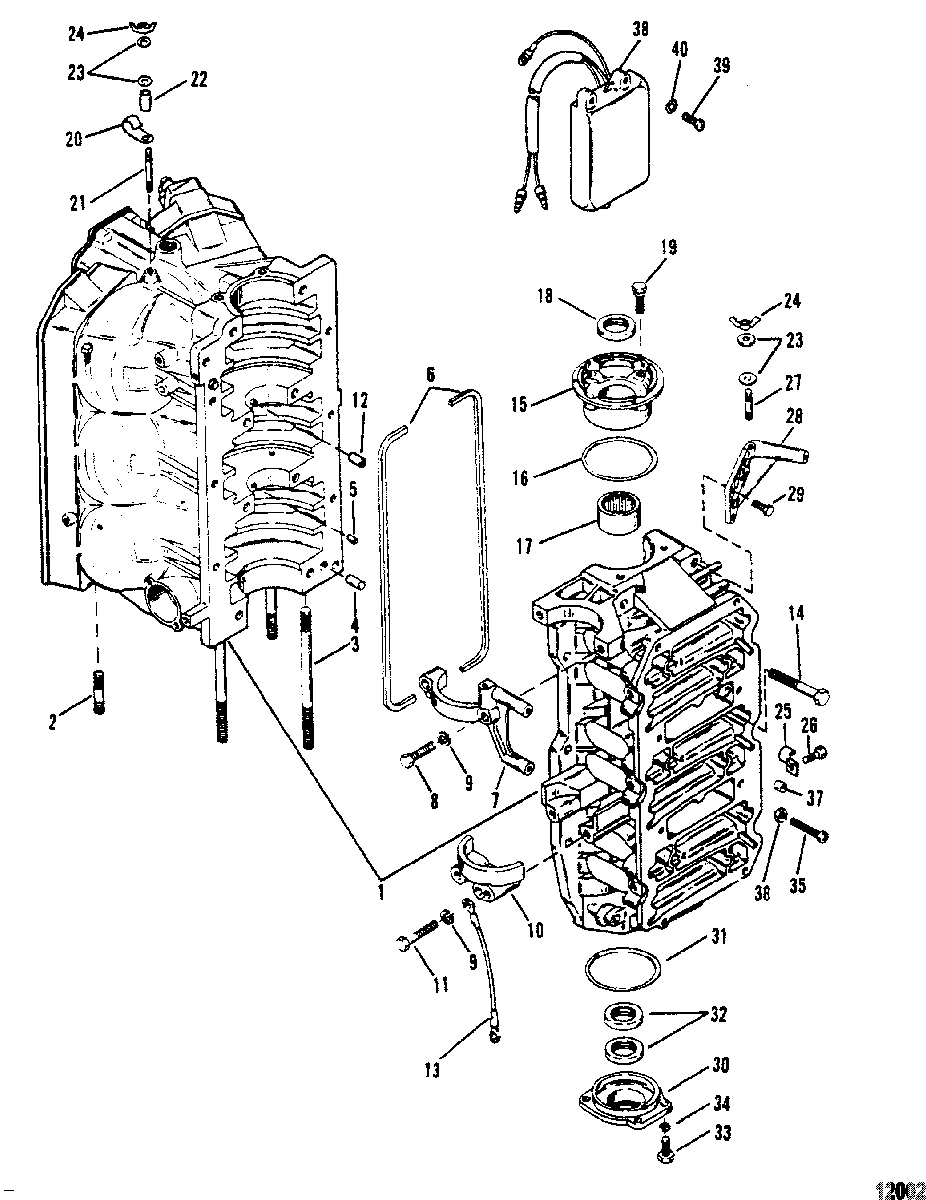

Cylinder Block And End Caps для Mercury - V-200XRI (EFI) 0D082000 THRU 0G303045

  • №
    Артикул
    Название
  • 1
    884-9763T23 CYLINDER BLOCK (150)
    CYLINDER BLOCK (150)
  • 1
    884-9763T17 CYLINDER BLOCK (175)
    CYLINDER BLOCK (175)
  • 1
    884-9763T61 CYLINDER BLOCK (200)
    CYLINDER BLOCK (200)
  • 2
    16-76175 STUD, Powerhead (1.875) (Old Design)
    STUD, Powerhead (1.875) (Old Design)
  • 2
    16-8M0034455 STUD, Powerhead (1.75")
    STUD, Powerhead (1.75")
  • 3
    16-670654 STUD, Powerhead (5.50")
    STUD, Powerhead (5.50")
  • 3
    16-8M0034454 STUD, Powerhead (6.75")
    STUD, Powerhead (6.75")
  • 4
    17-43044 PIN, Dowel - Without Hole (.375 x .625), Locating
    PIN, Dowel - Without Hole (.375 x .625), Locating
  • 5
    17-8M0036405 PIN, Bearing Race
    PIN, Bearing Race
  • 6
    27-11338 GASKET, Sealing
    GASKET, Sealing
  • 7
    8M0088723 COVER, Starter Motor-Upper
    COVER, Starter Motor-Upper
  • 8
    10-828213 SCREW, (.312-18 x 1.500) Hex Flange, Hex Flange
    SCREW, (.312-18 x 1.500) Hex Flange, Hex Flange
  • 8
    10-73657 SCREW, (.312-18 x 1.50), Use with Lockwasher
    SCREW, (.312-18 x 1.50), Use with Lockwasher
  • 9
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 10
    76867 COVER, Lower
    COVER, Lower
  • 11
    10-815549 SCREW, (.312-18 x 2.00)
    SCREW, (.312-18 x 2.00)
  • 11
    10-828214 SCREW, (.312-18 x 2.00) Hex Flange, Hex Head Flange
    SCREW, (.312-18 x 2.00) Hex Flange, Hex Head Flange
  • 12
    23-99448 BUSHING
    BUSHING
  • 13
    84-88807A20 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 14
    10-66717 SCREW, (.375-16 x 3.250)
    SCREW, (.375-16 x 3.250)
  • 14
    10-74824 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 15
    1159-858521T1 END CAP ASSEMBLY, Upper
    END CAP ASSEMBLY, Upper
  • 16
    25-54029 O-RING, (2.800 x .103)
    O-RING, (2.800 x .103)
  • 17
    31-16756A4 BEARING KIT
    BEARING KIT
  • 18
    26-41953 SEAL
    SEAL
  • 19
    10-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00)
    SCREW AND LOCKWASHER, (.312-18 x 1.00)
  • 20
    54-63153 J CLIP
    J CLIP
  • 21
    16-15094 STUD, (.190-32 x 1.870)
    STUD, (.190-32 x 1.870)
  • 22
    23-67269 SPACER
    SPACER
  • 23
    12-49221 WASHER, (.187 x .500 x .062) Neoprene
    WASHER, (.187 x .500 x .062) Neoprene
  • 24
    11-816874 WING NUT, (#10-32)
    WING NUT, (#10-32)
  • 25
    54-16793 CLAMP
    CLAMP
  • 26
    10-41508 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 27
    16-8M0034435 STUD, (#10-32 x 1.00)
    STUD, (#10-32 x 1.00)
  • 28
    422482 BRACKET
    BRACKET
  • 29
    10-49668 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 30
    1156-7809T1 END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 31
    25-62700 O-RING, (3.237 x .103)
    O-RING, (3.237 x .103)
  • 32
    26-41953 SEAL
    SEAL
  • 33
    10-28636 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 34
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 35
    10-64022 SCREW, (.250-20 x 2.125)
    SCREW, (.250-20 x 2.125)
  • 36
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 37
    26852 CAP, Nylon
    CAP, Nylon
  • 38
    87076A10 IDLE SPEED CONTROL
    IDLE SPEED CONTROL
  • 39
    10-690201 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 40
    12-38833 WASHER
    WASHER
  • -
    27-815791A92 GASKET SET, Engine
    GASKET SET, Engine
  • -
    823434R97 POWERHEAD ASSEMBLY (150)
    POWERHEAD ASSEMBLY (150)
  • -
    812817R97 POWERHEAD ASSEMBLY (175)
    POWERHEAD ASSEMBLY (175)
  • -
    813043R97 POWERHEAD ASSEMBLY (200)
    POWERHEAD ASSEMBLY (200)
