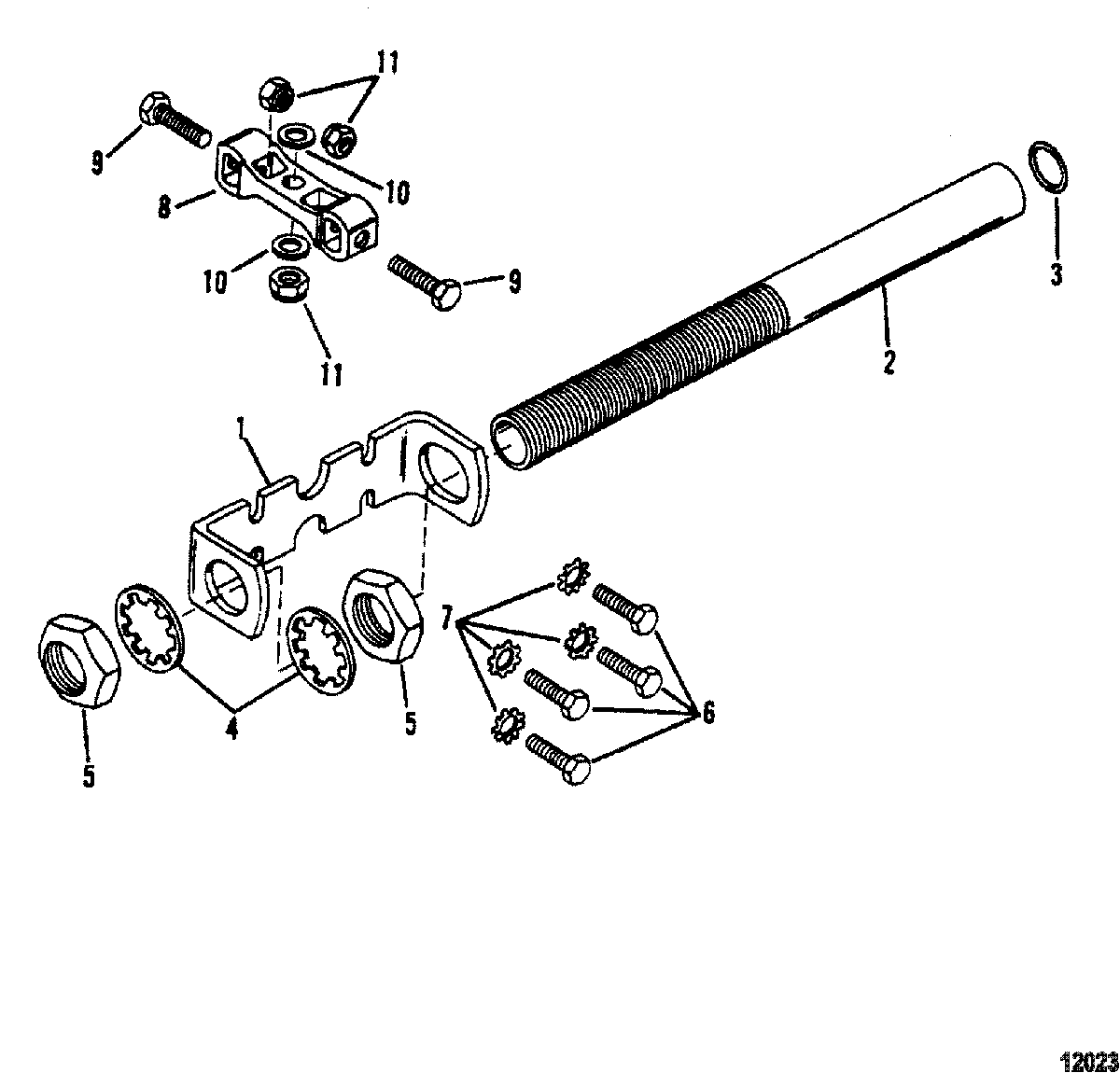

Steering Attaching Kit для Mercury - V-200XRI (EFI) 0D082000 THRU 0G303045

  • №
    Артикул
    Название
  • -
    92876A8 ATTACHING KIT, Steering, Single
    ATTACHING KIT, Steering, Single
  • 1
    41055A1 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 2
    71565A2 TUBE ASSEMBLY
    TUBE ASSEMBLY
  • 3
    25-48462 O-RING, (.614 x .070)
    O-RING, (.614 x .070)
  • 4
    13-821203 LOCKWASHER
    LOCKWASHER
  • 5
    11-8M0041651 NUT, (.875-14)
    NUT, (.875-14)
  • 6
    10-38601 SCREW, (.250-28 x 1.250)
    SCREW, (.250-28 x 1.250)
  • 7
    13-93702 WASHER, (.250 External Star)
    WASHER, (.250 External Star)
  • 8
    850791T COUPLING
    COUPLING
  • 9
    10-73732 SCREW, (.375-24 x 1.120)
    SCREW, (.375-24 x 1.120)
  • 10
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel
    WASHER, (.406 x .734 x .063) Stainless Steel
  • 11
    11-8M0042636 NUT, (.375-24)
    NUT, (.375-24)
