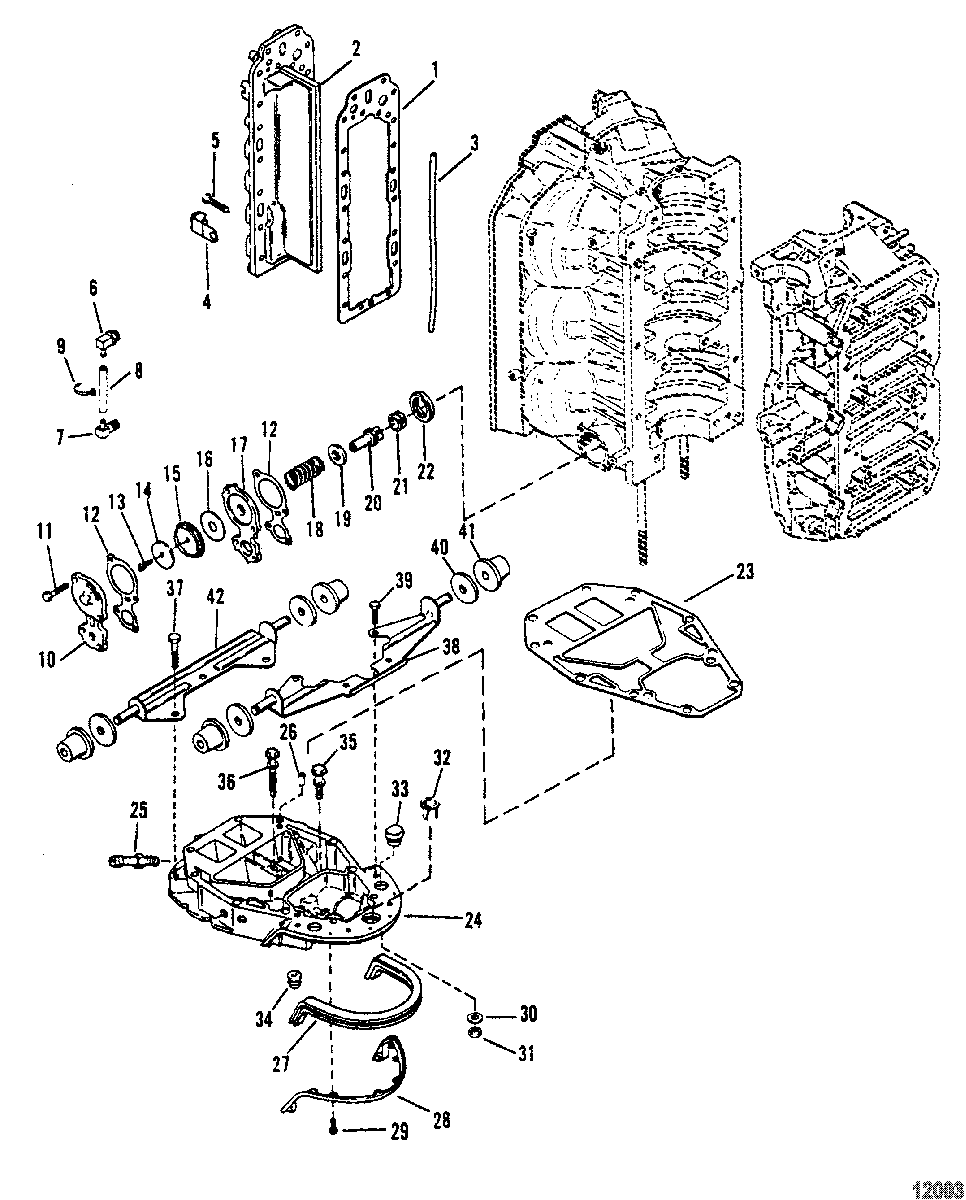

Exhaust Manifold And Exhaust Plate для Mercury - V-200XRI (EFI) 0D082000 THRU 0G303045

  • №
    Артикул
    Название
  • 1
    27-190503 GASKET
    GASKET
  • 2
    827323A2 PLATE, Divider
    PLATE, Divider
  • 3
    26-814754 SEAL, (12.50 Inches)
    SEAL, (12.50 Inches)
  • 4
    54-814634 CLAMP
    CLAMP
  • 5
    10-8263561 SCREW AND WASHER, (.312-18 x 1.500)
    SCREW AND WASHER, (.312-18 x 1.500)
  • 6
    22-8144301 FITTING, (.500-14)
    FITTING, (.500-14)
  • 7
    22-920071 FITTING, (.250-18) (90_)
    FITTING, (.250-18) (90_)
  • 8
    32-8M0108355 LINE, (57.00 Inches Bulk) (Cut to 23.50 Inch Length)
    LINE, (57.00 Inches Bulk) (Cut to 23.50 Inch Length)
  • 9
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 10
    8M0039767 COVER, Relief Valve
    COVER, Relief Valve
  • 11
    10-74824 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 12
    27-78690002 GASKET
    GASKET
  • 13
    10-69570 SCREW, (#10-16 x .750)
    SCREW, (#10-16 x .750)
  • 14
    12-76451 WASHER
    WASHER
  • 15
    144791 DIAPHRAGM
    DIAPHRAGM
  • 16
    16496 DEFLECTOR, Water
    DEFLECTOR, Water
  • 17
    16497A1 PLATE
    PLATE
  • 18
    24-64878 SPRING, (Black)
    SPRING, (Black)
  • 19
    12-85303 WASHER
    WASHER
  • 20
    14480 POPPET
    POPPET
  • 21
    25-64872 GROMMET
    GROMMET
  • 22
    65848 CARRIER
    CARRIER
  • 23
    27-991764 GASKET
    GASKET
  • 24
    18260T2 PLATE ASSEMBLY, Exhaust
    PLATE ASSEMBLY, Exhaust
  • 25
    22-89772Q1 CONNECTOR, (.125-27), Straight
    CONNECTOR, (.125-27), Straight
  • 26
    17-43044 PIN, Dowel
    PIN, Dowel
  • 27
    8M0043164 SEAL
    SEAL
  • 28
    680101 BRACKET
    BRACKET
  • 29
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 30
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 31
    11-69254 NUT
    NUT
  • 32
    23-27132 BUSHING
    BUSHING
  • 33
    25-19564001 GROMMET
    GROMMET
  • 34
    25-12602002 GROMMET
    SN# 0G201874 & Below
    GROMMET
    SN# 0G201874 & Below
  • 34
    25-19565002 GROMMET
    SN# 0G201875 & Up
    GROMMET
    SN# 0G201875 & Up
  • 35
    10-66727 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 36
    10-68783 SCREW, (.312-18 x 2.50)
    SCREW, (.312-18 x 2.50)
  • 37
    10-898833 SCREW, (.375-16 x 3.50)
    SCREW, (.375-16 x 3.50)
  • 38
    812905T BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 39
    10-90285 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • 39A
    12-56720 WASHER, (.330 x .750 x .060) Stainless Steel
    WASHER, (.330 x .750 x .060) Stainless Steel
  • 40
    12-187031 WASHER
    WASHER
  • 41
    25-18778001 GROMMET
    GROMMET
  • 42
    18578T09 BRACKET ASSEMBLY, Rear
    BRACKET ASSEMBLY, Rear
  • -
    27-815791A92 GASKET SET, Engine
    GASKET SET, Engine
