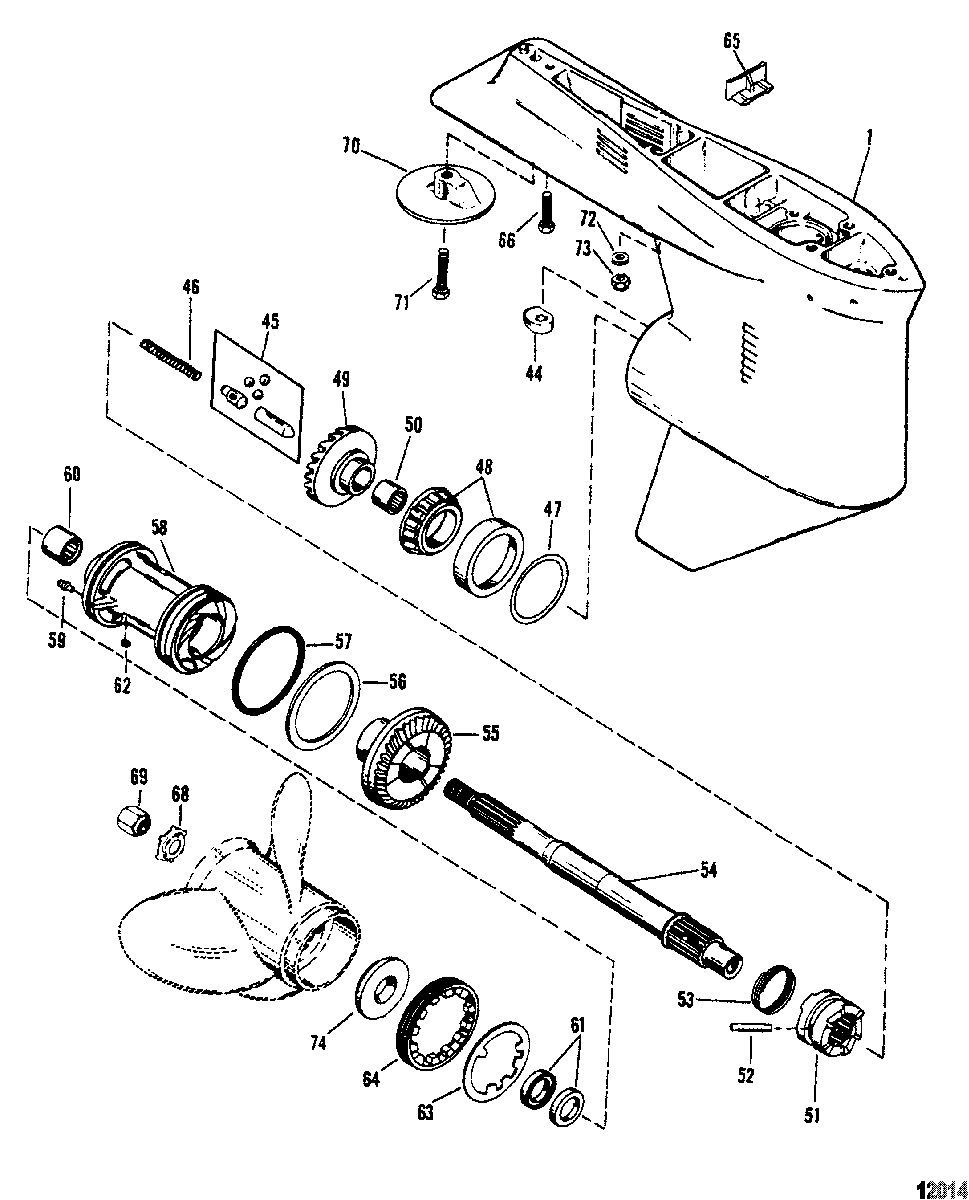

Gear Housing, Propshaft 1.78:1 Gear Ratio 4.25 Inch Dia для Mercury - V-200XRI (EFI) 0D082000 THRU 0G303045

  • №
    Артикул
    Название
  • 1
    1674-814247T1 GEAR HOUSING ASSEMBLY, Basic - Black
    GEAR HOUSING ASSEMBLY, Basic - Black
  • 1
    1674-814247T1 GEAR HOUSING ASSEMBLY, Basic - Gray
    GEAR HOUSING ASSEMBLY, Basic - Gray
  • 44
    760394 CAM, Shift Control
    CAM, Shift Control
  • 45
    850315A1 FOLLOWER KIT, Cam
    FOLLOWER KIT, Cam
  • 46
    24-30622 SPRING
    SPRING
  • 47
    15-8M0063266 SHIM SET
    SHIM SET
  • 48
    31-30894A1 BEARING SET, Cup And Cone
    BEARING SET, Cup And Cone
  • 49
    43-16279A2 GEAR ASSEMBLY, Forward
    GEAR ASSEMBLY, Forward
  • 50
    31-30895T BEARING, Needle
    BEARING, Needle
  • 51
    52-822539T CLUTCH
    CLUTCH
  • 52
    17-8M0100263 PIN, Cross
    PIN, Cross
  • 53
    24-30893 SPRING
    SPRING
  • 54
    44-12238T PROPELLER SHAFT
    PROPELLER SHAFT
  • 55
    N.S.S. Not Sold Separate, Reverse Gear (Part Of 43- 16279A 2)
    Not Sold Separate, Reverse Gear (Part Of 43- 16279A 2)
  • 56
    12-76358 THRUST WASHER
    THRUST WASHER
  • 57
    25-29976 O-RING
    O-RING
  • 58
    41529T2 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 59
    22-98727 FITTING, Grease
    FITTING, Grease
  • 60
    31-30956T BEARING, Needle
    BEARING, Needle
  • 61
    26-76868 SEAL
    SEAL
  • 62
    28-30281 KEY
    KEY
  • 63
    14-52700 TAB WASHER
    TAB WASHER
  • 64
    52699 COVER
    COVER
  • 65
    8M0039169 FILLER BLOCK
    FILLER BLOCK
  • 66
    10-65210 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 68
    14-816629Q TAB WASHER
    TAB WASHER
  • 69
    11-52707Q1 PROP NUT KIT, (.750-16)
    PROP NUT KIT, (.750-16)
  • 70
    97-31640Q4 TRIM TAB
    TRIM TAB
  • 71
    10-806327 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 72
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    WASHER, (.453 x .812 x .105) Stainless Steel
  • 73
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 74
    13191Q01 THRUST WASHER
    THRUST WASHER
  • -
    27-815791A92 GASKET SET, Engine
    GASKET SET, Engine
  • -
    26-89238A2 SEAL KIT
    SEAL KIT
