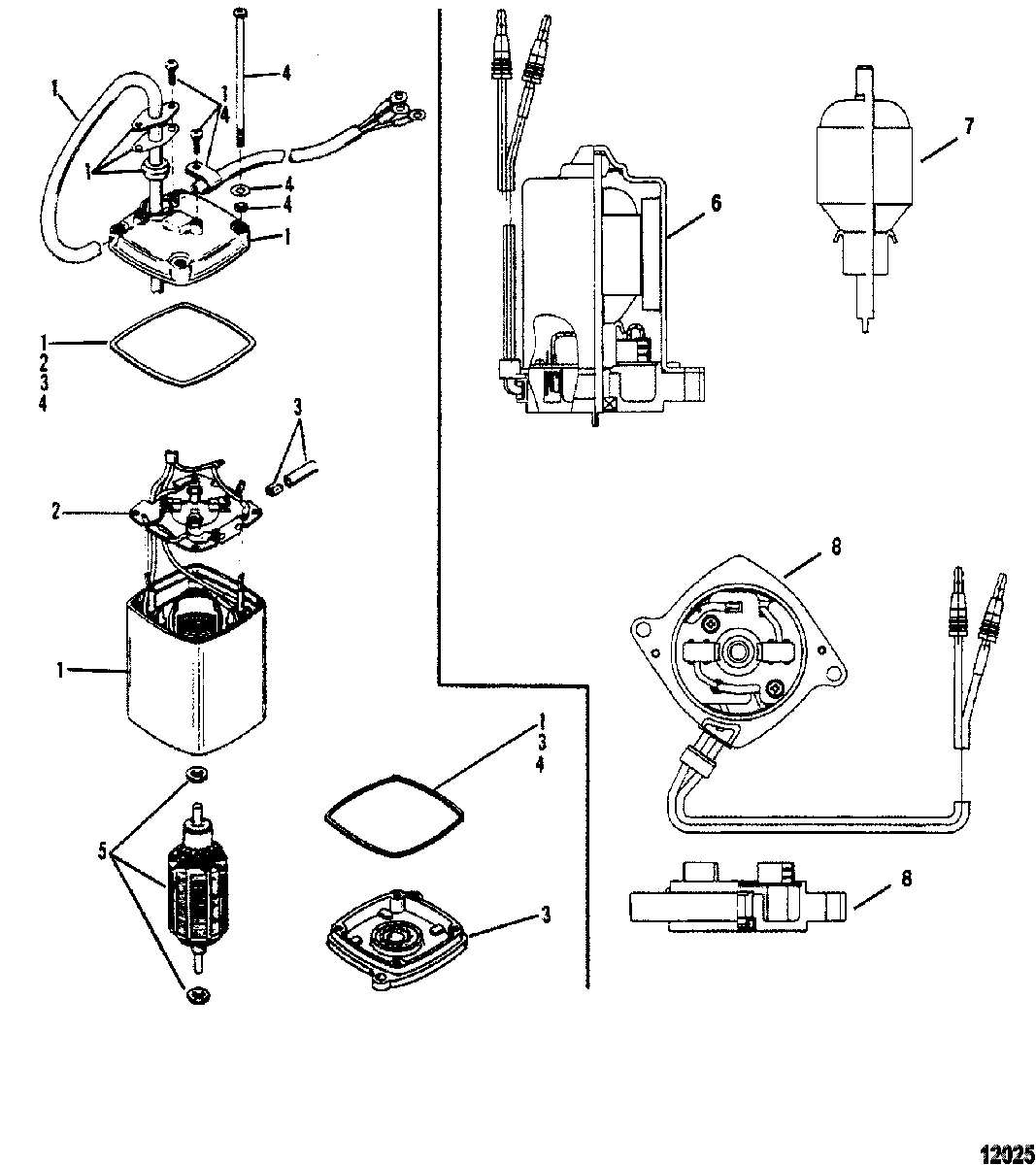

Power Trim Motor для Mercury - V-200XRI (EFI) 0D082000 THRU 0G303045

  • №
    Артикул
    Название
  • -
    878265A6 TRIM MOTOR
    SN# 0G201874 & Below
    TRIM MOTOR
    SN# 0G201874 & Below
  • -
    8M0031551 MOTOR ASSEMBLY
    SN# 0G201875 & Up
    MOTOR ASSEMBLY
    SN# 0G201875 & Up
  • 1
    811624 FRAME AND FIELD KIT
    SN# 0G201874 & Below
    FRAME AND FIELD KIT
    SN# 0G201874 & Below
  • 2
    811625 BRUSH CARD KIT
    SN# 0G201874 & Below
    BRUSH CARD KIT
    SN# 0G201874 & Below
  • 3
    811623 END FRAME KIT
    SN# 0G201874 & Below
    END FRAME KIT
    SN# 0G201874 & Below
  • 4
    811626 SEAL KIT
    SN# 0G201874 & Below
    SEAL KIT
    SN# 0G201874 & Below
  • 5
    878265A6 ARMATURE KIT
    SN# 0G201874 & Below
    ARMATURE KIT
    SN# 0G201874 & Below
  • 6
    828714A1 BRUSH AND SEAL KIT
    SN# 0G201875 & Up
    BRUSH AND SEAL KIT
    SN# 0G201875 & Up
  • 7
    828713T1 ARMATURE KIT
    SN# 0G201875 & Up
    ARMATURE KIT
    SN# 0G201875 & Up
  • 8
    828715A1 END FRAME, Complete
    SN# 0G201875 & Up
    END FRAME, Complete
    SN# 0G201875 & Up
