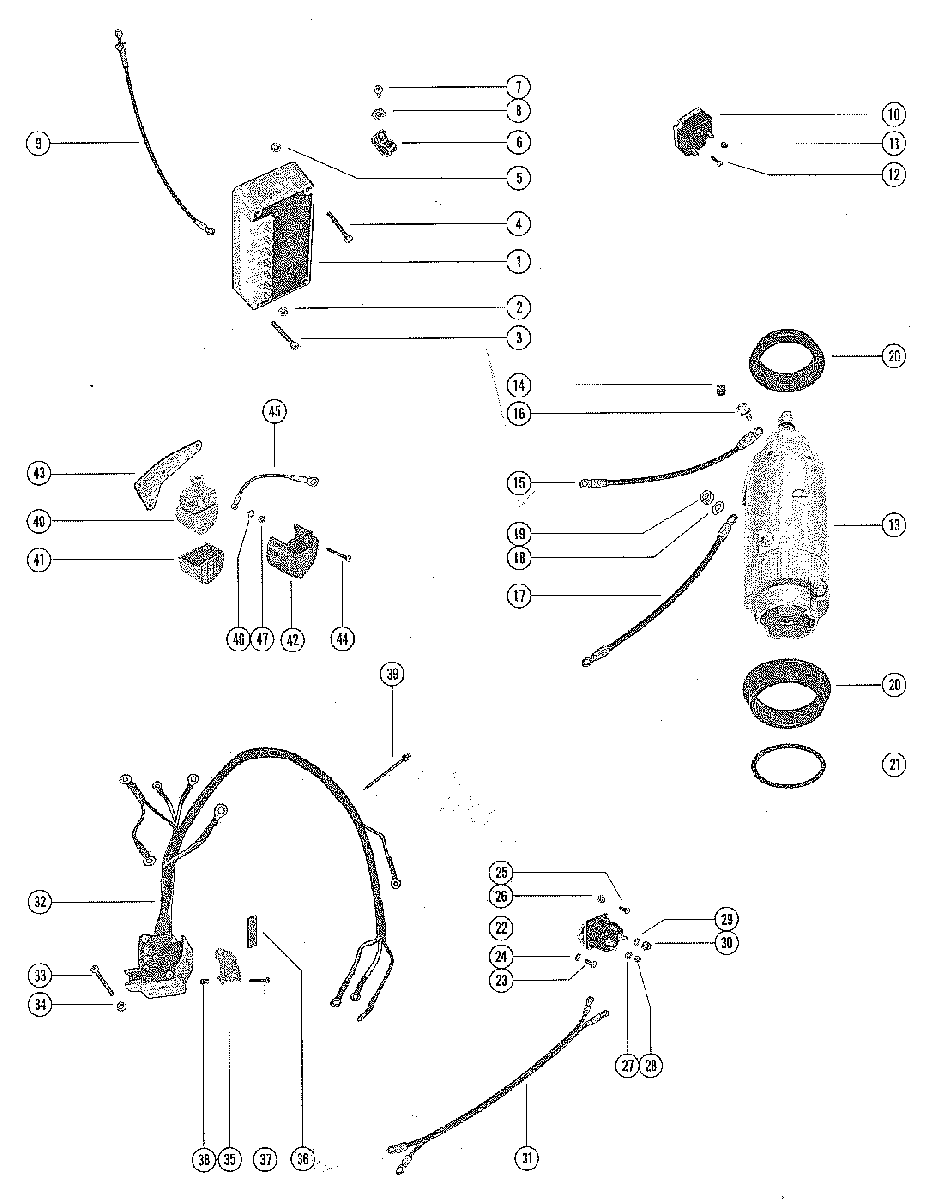

STARTER MOTOR, STARTER SOLENOID, RECTIFIER & WIRING HARNESS для Mercury - 650 (3 CYL.) 3293184 THRU 3525440

  • №
    Артикул
    Название
  • 1
    332-4796A6 SWITCH BOX ASSEMBLY, COMPLETE
    SWITCH BOX ASSEMBLY, COMPLETE
  • 2
    11-45076 NUT, SWITCH TERMINAL
    NUT, SWITCH TERMINAL
  • 3
    10-64022 SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (2 1/8")
    SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (2 1/8")
  • 4
    10-63506 SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (2 1/8")
    SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (2 1/8")
  • 5
    11-20184 NUT, SWITCH BOX SCREW ATTACHING
    NUT, SWITCH BOX SCREW ATTACHING
  • 6
    54-22875 CLAMP, ELECTRICAL LEADS TO SWITCH BOX
    CLAMP, ELECTRICAL LEADS TO SWITCH BOX
  • 7
    10-69079 SCREW, CLAMP TO SWITCH BOX (7/16")
    SCREW, CLAMP TO SWITCH BOX (7/16")
  • 8
    8M0084613 "D" WASHER, CLAMP FASTENING SCREW
    "D" WASHER, CLAMP FASTENING SCREW
  • 9
    56318A5 CABLE ASSEMBLY, COIL TO SWITCH BOX (GREEN)
    CABLE ASSEMBLY, COIL TO SWITCH BOX (GREEN)
  • 10
    8M0058226 RECTIFIER ASSEMBLY
    RECTIFIER ASSEMBLY
  • 11
    11-45076 NUT, RECTIFIER TERMINAL
    NUT, RECTIFIER TERMINAL
  • 12
    10-25764 SCREW, RECTIFIER TO FRONT SUPPORT BRACKET (1/2")
    SCREW, RECTIFIER TO FRONT SUPPORT BRACKET (1/2")
  • 13
    50-44369A1 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 14
    8M0043376 STOP, RUBBER - STARTER MOTOR
    STOP, RUBBER - STARTER MOTOR
  • 15
    84-60872 CABLE, STARTER TO FRONT SUPPORT BRACKET (9 1/2")
    CABLE, STARTER TO FRONT SUPPORT BRACKET (9 1/2")
  • 16
    10-69035 SCREW, CABLE TO STARTER MOTOR (5/8")
    SCREW, CABLE TO STARTER MOTOR (5/8")
  • 17
    84-68890 CABLE, STARTER SOLENOID TO STARTER MOTOR (YELLOW)
    CABLE, STARTER SOLENOID TO STARTER MOTOR (YELLOW)
  • 18
    13-26992 LOCKWASHER, STARTER MOTOR TERMINAL
    LOCKWASHER, STARTER MOTOR TERMINAL
  • 19
    11-20890 NUT, STARTER MOTOR TERMINAL
    NUT, STARTER MOTOR TERMINAL
  • 20
    23-8M0034918 COLLAR, RUBBER - STARTER MOTOR MOUNT
    COLLAR, RUBBER - STARTER MOTOR MOUNT
  • 21
    23-56774 SPACER, COLLAR TO MOUNTING BRACKETS
    SPACER, COLLAR TO MOUNTING BRACKETS
  • 22
    89-853654A1 STARTER SOLENOID
    STARTER SOLENOID
  • 23
    10-69054 SCREW, SOLENOID TO FRONT SUPPORT BRACKET (5/8")
    SCREW, SOLENOID TO FRONT SUPPORT BRACKET (5/8")
  • 24
    13-26992 LOCKWASHER, SOLENOID MOUNTING SCREW
    LOCKWASHER, SOLENOID MOUNTING SCREW
  • 25
    10-98256 SCREW, SOLENOID TO FRONT SUPPORT BRACKET (1/2")
    SCREW, SOLENOID TO FRONT SUPPORT BRACKET (1/2")
  • 26
    11-20184 NUT, SOLENOID MOUNTING SCREW
    NUT, SOLENOID MOUNTING SCREW
  • 27
    13-26996 LOCKWASHER, SOLENOID TERMINAL (#10)
    LOCKWASHER, SOLENOID TERMINAL (#10)
  • 28
    11-68219 NUT, SOLENOID TERMINAL (#10)
    NUT, SOLENOID TERMINAL (#10)
  • 29
    13-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")
    LOCKWASHER, SOLENOID TERMINAL (5/16")
  • 30
    11-21908 NUT, SOLENOID TERMINAL (5/16")
    NUT, SOLENOID TERMINAL (5/16")
  • 31
    84-61378A2 CABLE, BATTERY TO STARTER SOLENOID
    CABLE, BATTERY TO STARTER SOLENOID
  • 32
    84-60795 WIRING HARNESS (INTERNAL)
    WIRING HARNESS (INTERNAL)
  • 33
    10-72202 SCREW, WIRING HARNESS TO FRONT SUPPORT BRACKET (1 1/4")
    SCREW, WIRING HARNESS TO FRONT SUPPORT BRACKET (1 1/4")
  • 34
    11-46438 NUT, WIRING HARNESS SCREW
    NUT, WIRING HARNESS SCREW
  • 35
    60114A1 BRACKET ASSEMBLY, WIRING HARNESS
    BRACKET ASSEMBLY, WIRING HARNESS
  • 36
    26-60925 SEAL, WIRING HARNESS BRACKET
    SEAL, WIRING HARNESS BRACKET
  • 37
    10-69082 SCREW, WIRING HARNESS BRACKET MOUNTING (2 3/8")
    SCREW, WIRING HARNESS BRACKET MOUNTING (2 3/8")
  • 38
    25-8M0079730 GROMMET, WIRING HARNESS BRACKET SCREW
    GROMMET, WIRING HARNESS BRACKET SCREW
  • 39
    61990 STA-STRAP, INTERNAL WIRING HARNESS
    STA-STRAP, INTERNAL WIRING HARNESS
  • 40
    336-4592A1 IGNITION COIL (2 7/8" HIGH)
    TO IDENTIFY COIL, MEASURE AS SHOWN IN DIAGRAM
    IGNITION COIL (2 7/8" HIGH)
    TO IDENTIFY COIL, MEASURE AS SHOWN IN DIAGRAM
  • 41
    56270 PAD, RUBBER - COIL
    TO IDENTIFY COIL, MEASURE AS SHOWN IN DIAGRAM
    PAD, RUBBER - COIL
    TO IDENTIFY COIL, MEASURE AS SHOWN IN DIAGRAM
  • 42
    56188 COVER, COIL (USE WITH A-336-4592A1 COIL)
    TO IDENTIFY COIL, MEASURE AS SHOWN IN DIAGRAM
    COVER, COIL (USE WITH A-336-4592A1 COIL)
    TO IDENTIFY COIL, MEASURE AS SHOWN IN DIAGRAM
  • 40
    332-4895T2 IGNITION COIL (3 3/8" HIGH)
    TO IDENTIFY COIL, MEASURE AS SHOWN IN DIAGRAM
    IGNITION COIL (3 3/8" HIGH)
    TO IDENTIFY COIL, MEASURE AS SHOWN IN DIAGRAM
  • 41
    72015 PAD, RUBBER - COIL
    TO IDENTIFY COIL, MEASURE AS SHOWN IN DIAGRAM
    PAD, RUBBER - COIL
    TO IDENTIFY COIL, MEASURE AS SHOWN IN DIAGRAM
  • 42
    63195 COVER, COIL (USE WITH A-332-4595A1 COIL)
    TO IDENTIFY COIL, MEASURE AS SHOWN IN DIAGRAM
    COVER, COIL (USE WITH A-332-4595A1 COIL)
    TO IDENTIFY COIL, MEASURE AS SHOWN IN DIAGRAM
  • 43
    62094 BRACKET, COIL MOUNTING
    BRACKET, COIL MOUNTING
  • 44
    10-88856 SCREW, COIL AND BRACKET TO CYLINDER BLOCK (2")
    SCREW, COIL AND BRACKET TO CYLINDER BLOCK (2")
  • 45
    84-60466A1 CABLE ASSEMBLY, GROUND - MOUNTING SCREW
    CABLE ASSEMBLY, GROUND - MOUNTING SCREW
  • 46
    13-26996 LOCKWASHER, IGNITION COIL TERMINAL (#10)
    LOCKWASHER, IGNITION COIL TERMINAL (#10)
  • 47
    11-45076 NUT, IGNITION COIL TERMINAL (#10)
    NUT, IGNITION COIL TERMINAL (#10)
