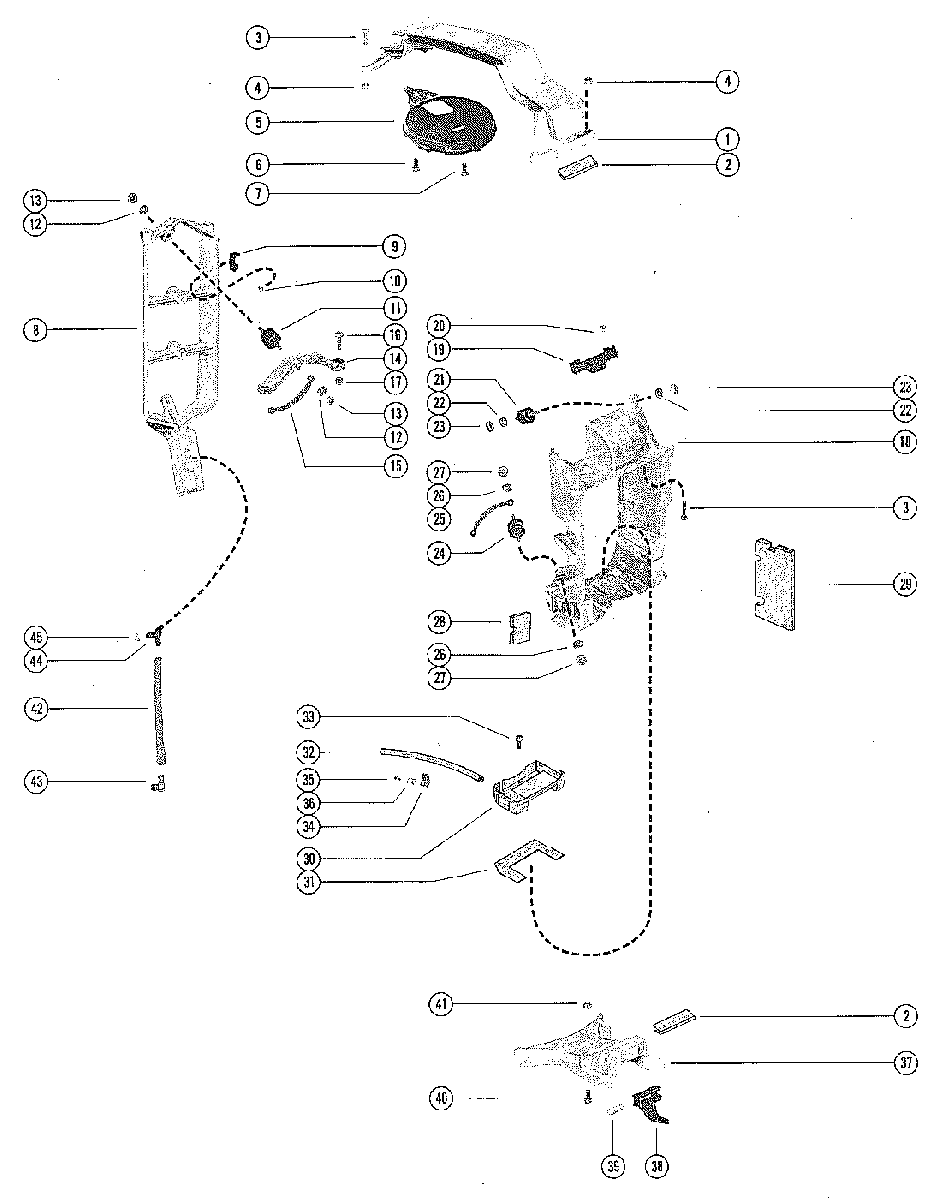

COWL SUPPORT BRACKETS для Mercury - 650 (3 CYL.) 3293184 THRU 3525440

  • №
    Артикул
    Название
  • 1
    60117 BRACKET, COWL SUPPORT - TOP
    BRACKET, COWL SUPPORT - TOP
  • 2
    62444 SEAL, RUBBER - TOP BRACKET AND COVER MOUNTING PLATE
    SEAL, RUBBER - TOP BRACKET AND COVER MOUNTING PLATE
  • 3
    10-60300 SCREW, TOP COWL BRACKET ATTACHING (3/4")
    SCREW, TOP COWL BRACKET ATTACHING (3/4")
  • 4
    11-20184 NUT, SUPPORT BRACKET ATTACHING SCREW
    NUT, SUPPORT BRACKET ATTACHING SCREW
  • 5
    62501A1 SHIELD ASSEMBLY, FLYWHEEL
    SHIELD ASSEMBLY, FLYWHEEL
  • 6
    10-48409 SCREW, SHIELD TO TOP SUPPORT BRACKET (5/8") - REAR
    SCREW, SHIELD TO TOP SUPPORT BRACKET (5/8") - REAR
  • 7
    10-62568 SCREW, SHIELD TO TOP SUPPORT BRACKET (3/8") - FRONT
    SCREW, SHIELD TO TOP SUPPORT BRACKET (3/8") - FRONT
  • 8
    60112 BRACKET, COWL SUPPORT - REAR
    BRACKET, COWL SUPPORT - REAR
  • 9
    60299 RETAINER, SPARK PLUG LEADS
    RETAINER, SPARK PLUG LEADS
  • 10
    10-69079 SCREW, RETAINER TO REAR SUPPORT BRACKET (1/2")
    SCREW, RETAINER TO REAR SUPPORT BRACKET (1/2")
  • 11
    90435 MOUNT, RUBBER - BRACE TO REAR SUPPORT BRACKET
    MOUNT, RUBBER - BRACE TO REAR SUPPORT BRACKET
  • 12
    12-69057 WASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET
    WASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET
  • 13
    11-8267089 NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET
    NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET
  • 14
    60116 BRACE, REAR COWL SUPPORT BRACKET (TOP)
    BRACE, REAR COWL SUPPORT BRACKET (TOP)
  • 15
    49651A1 GROUND STRAP ASS'Y BRACE TO REAR SUPPORT BRACKET
    GROUND STRAP ASS'Y BRACE TO REAR SUPPORT BRACKET
  • 16
    10-24644 SCREW, SUPPORT BRACKET BRACE TO CYL. BLOCK COVER (1 3/8")
    SCREW, SUPPORT BRACKET BRACE TO CYL. BLOCK COVER (1 3/8")
  • 17
    11-20184 NUT, SUPPORT BRACKET BRACE ATTACHING SCREW
    NUT, SUPPORT BRACKET BRACE ATTACHING SCREW
  • 18
    64926 BRACKET, COWL SUPPORT (FRONT)
    BRACKET, COWL SUPPORT (FRONT)
  • 19
    61344 RETAINER, WIRING HARNESS AND BATTERY CABLE
    RETAINER, WIRING HARNESS AND BATTERY CABLE
  • 20
    10-35519 SCREW, RETAINER TO FRONT SUPPORT BRACKET (1/2")
    SCREW, RETAINER TO FRONT SUPPORT BRACKET (1/2")
  • 21
    90435 MOUNT, RUBBER - FRONT SUPPORT BRACKET
    MOUNT, RUBBER - FRONT SUPPORT BRACKET
  • 22
    12-69057 WASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET
    WASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET
  • 23
    11-8267089 NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET
    NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET
  • 24
    90435 MOUNT, RUBBER - FRONT SUPPORT TO DISTRIBUTOR ADAPTOR
    MOUNT, RUBBER - FRONT SUPPORT TO DISTRIBUTOR ADAPTOR
  • 25
    49651A1 GROUND STRAP ASSEMBLY, FRONT SUPPORT BRACKET
    GROUND STRAP ASSEMBLY, FRONT SUPPORT BRACKET
  • 26
    12-69057 WASHER, RUBBER MOUNT ATTACHING
    WASHER, RUBBER MOUNT ATTACHING
  • 27
    11-8267089 NUT, RUBBER MOUNT ATTACHING
    NUT, RUBBER MOUNT ATTACHING
  • 28
    76410 SEAL, FUEL CONNECTOR - FRONT SUPPORT BRACKET
    SEAL, FUEL CONNECTOR - FRONT SUPPORT BRACKET
  • 29
    62391 BLANKET, SOUND - FRONT SUPPORT BRACKET (PORT)
    BLANKET, SOUND - FRONT SUPPORT BRACKET (PORT)
  • 30
    65915A2 DRIP TRAY, FRONT SUPPORT BRACKET
    DRIP TRAY, FRONT SUPPORT BRACKET
  • 31
    62869 BLANKET, SOUND - DRIP TRAY TO FRONT SUPPORT BRACKET
    BLANKET, SOUND - DRIP TRAY TO FRONT SUPPORT BRACKET
  • 32
    32-9912688 HOSE, DRIP TRAY TO REAR SUPPORT BRACKET
    HOSE, DRIP TRAY TO REAR SUPPORT BRACKET
  • 33
    10-35519 SCREW, DRIP TRAY TO FRONT SUPPORT BRACKET (1/2")
    SCREW, DRIP TRAY TO FRONT SUPPORT BRACKET (1/2")
  • 34
    54-22740 CLP, HOSE TO REAR SUPPORT BRACKET
    CLP, HOSE TO REAR SUPPORT BRACKET
  • 35
    10-69079 SCREW, HOSE CLIP FASTENING (7/16")
    SCREW, HOSE CLIP FASTENING (7/16")
  • 36
    8M0084613 "D" WASHER, CLIP FASTENING SCREW
    "D" WASHER, CLIP FASTENING SCREW
  • 34
    54-22875 CLIP, HOSE TO EXHAUST PLATE
    CLIP, HOSE TO EXHAUST PLATE
  • 35
    10-69079 SCREW, HOSE CLIP FASTENING (7/16")
    SCREW, HOSE CLIP FASTENING (7/16")
  • 36
    8M0084613 "D" WASHER, CLIP FASTENING SCREW
    "D" WASHER, CLIP FASTENING SCREW
  • 37
    76251A1 PLATE, FRONT COVER MOUNTING
    PLATE, FRONT COVER MOUNTING
  • 38
    76264 LATCH, FRONT COVER ATTACHING
    LATCH, FRONT COVER ATTACHING
  • 39
    24-60295 SPRING, FRONT COVER LATCH
    SPRING, FRONT COVER LATCH
  • 40
    10-38601 SCREW, COVER PLATE TO SUPPORT BRACKET (5/8")
    SCREW, COVER PLATE TO SUPPORT BRACKET (5/8")
  • 41
    11-20184 NUT, ATTACHING SCREW COVER PLATE
    NUT, ATTACHING SCREW COVER PLATE
  • 42
    32-8M0108355 HOSE, TELL TALE - REAR BRACKET TO EXHAUST PLATE
    HOSE, TELL TALE - REAR BRACKET TO EXHAUST PLATE
  • 43
    22-996642 ELBOW, TELL TALE HOSE TO EXHAUST EXTENSION PLATE
    ELBOW, TELL TALE HOSE TO EXHAUST EXTENSION PLATE
  • 44
    52889 NOZZLE, TELL TALE HOSE TO REAR SUPPORT BRACKET
    NOZZLE, TELL TALE HOSE TO REAR SUPPORT BRACKET
  • 45
    10-35519 SCREW, NOZZLE TO REAR SUPPORT BRACKET (1/2")
    SCREW, NOZZLE TO REAR SUPPORT BRACKET (1/2")
