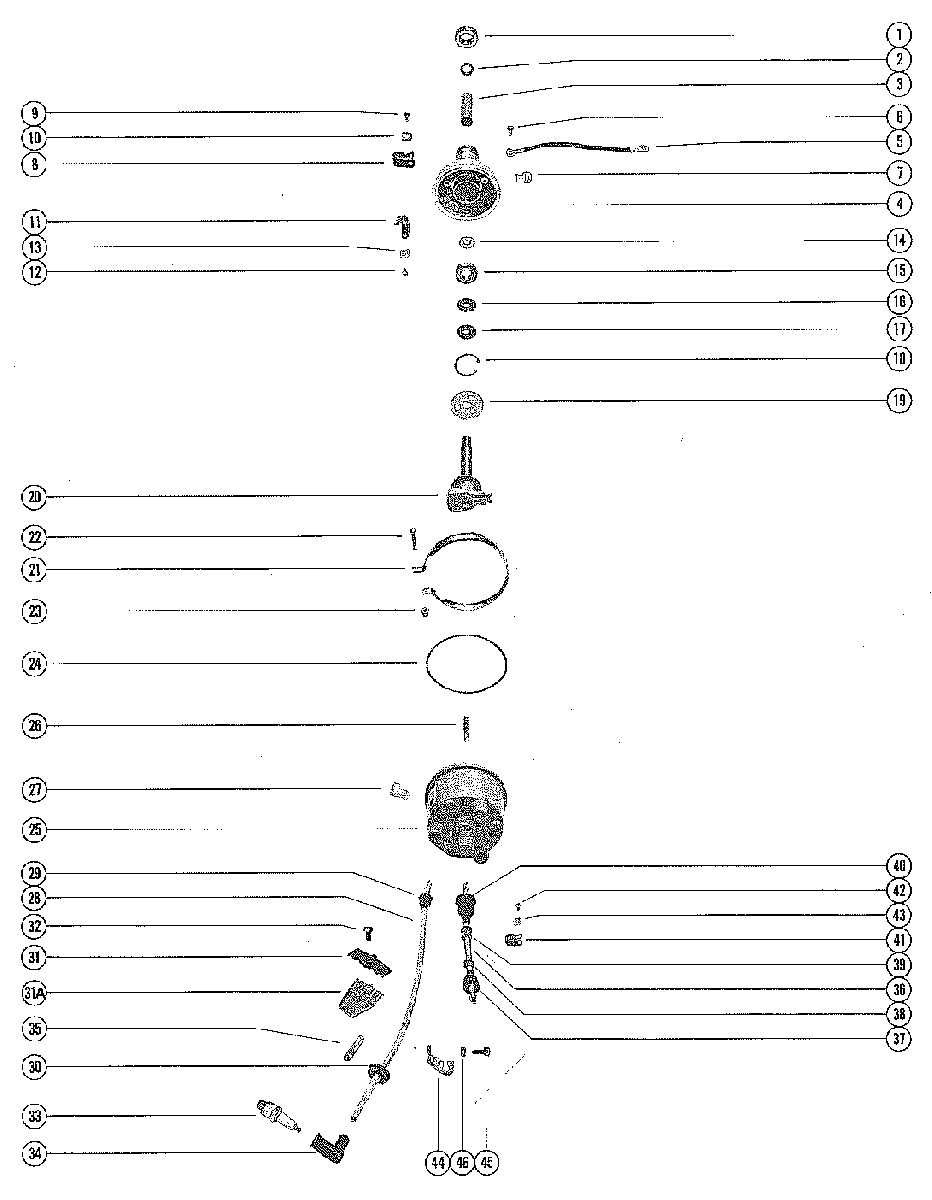

DISTRIBUTOR HOUSING AND ROTOR для Mercury - 650 (3 CYL.) 3293184 THRU 3525440

  • №
    Артикул
    Название
  • 1
    30-20066 BALL BEARING, DISTRIBUTOR HOUSING (UPPER)
    BALL BEARING, DISTRIBUTOR HOUSING (UPPER)
  • 2
    11-54209 NUT, ROTOR SHAFT TO DISTRIBUTOR HOUSING
    NUT, ROTOR SHAFT TO DISTRIBUTOR HOUSING
  • 3
    23-60566 SLEEVE, ROTOR SHAFT
    SLEEVE, ROTOR SHAFT
  • 4
    332-4797A9 HOUSING ASSEMBLY, DISTRIBUTOR
    HOUSING ASSEMBLY, DISTRIBUTOR
  • 5
    53417 GROUND STRAP ASSEMBLY, DISTRIBUTOR TO CRANKCASE
    GROUND STRAP ASSEMBLY, DISTRIBUTOR TO CRANKCASE
  • 6
    10-62568 SCREW, GROUND STRAP ATTACHING (3/8")
    SCREW, GROUND STRAP ATTACHING (3/8")
  • 7
    58807A1 FLAME ARRESTOR ASSEMBLY, DISTRIBUTOR HOUSING
    FLAME ARRESTOR ASSEMBLY, DISTRIBUTOR HOUSING
  • 8
    54-22875 CLAMP, DISTRIBUTOR LEADS TO DISTRIBUTOR HOUSING
    CLAMP, DISTRIBUTOR LEADS TO DISTRIBUTOR HOUSING
  • 9
    10-62568 SCREW, DISTRIBUTOR LEAD CLIP FASTENING (3/8")
    SCREW, DISTRIBUTOR LEAD CLIP FASTENING (3/8")
  • 10
    8M0084613 "D" WASHER, CLIP SCREW
    "D" WASHER, CLIP SCREW
  • 11
    54-22740 CLIP, DISTRIBUTOR LEADS TO FRONT SUPPORT BRACKET
    CLIP, DISTRIBUTOR LEADS TO FRONT SUPPORT BRACKET
  • 12
    10-69079 SCREW, DISTRIBUTOR LEAD CLIP (7/16")
    SCREW, DISTRIBUTOR LEAD CLIP (7/16")
  • 13
    8M0084613 "D" WASHER, CLIP SCREW
    "D" WASHER, CLIP SCREW
  • 14
    15-21148A1 SHIM, BEARING TO SPACER
    SHIM, BEARING TO SPACER
  • 15
    30-26379 BALL BEARING, DISTRIBUTOR HOUSING (LOWER)
    BALL BEARING, DISTRIBUTOR HOUSING (LOWER)
  • 16
    15-55853 SHIM, BEARING TO DISTRIBUTOR HOUSING
    SHIM, BEARING TO DISTRIBUTOR HOUSING
  • 17
    23-53538 SPACER, ROTOR SHAFT
    SPACER, ROTOR SHAFT
  • 18
    53-26406 RING, RETAINING - BALL BEARING TO DISTRIBUTOR HOUSING
    RING, RETAINING - BALL BEARING TO DISTRIBUTOR HOUSING
  • 19
    332-4801 DISC, ROTOR
    DISC, ROTOR
  • 20
    337-4603 ROTOR, DISTRIBUTOR
    ROTOR, DISTRIBUTOR
  • 21
    54-60768 CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
    CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
  • 22
    10-62802 SCREW, DISTRIBUTOR CAP CLAMP (1 1/8")
    SCREW, DISTRIBUTOR CAP CLAMP (1 1/8")
  • 23
    11-26768 NUT, DISTRIBUTOR CAP CLAMP SCREW
    NUT, DISTRIBUTOR CAP CLAMP SCREW
  • 24
    27-55896 GASKET, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
    GASKET, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
  • 25
    393-4606A2 DISTRIBUTOR CAP ASSEMBLY
    DISTRIBUTOR CAP ASSEMBLY
  • 26
    393-1293A1 BRUSH AND SPRING ASSEMBLY
    BRUSH AND SPRING ASSEMBLY
  • 27
    58807A1 FLAME ARRESTOR ASSEMBLY, DISTRIBUTOR CAP
    FLAME ARRESTOR ASSEMBLY, DISTRIBUTOR CAP
  • 28
    84-813715A1 SPARK PLUG LEAD ASSEMBLY #1, #2 AND #3
    SPARK PLUG LEAD ASSEMBLY #1, #2 AND #3
  • --
    8M0084600 CONNECTOR, SPARK PLUG LEAD
    CONNECTOR, SPARK PLUG LEAD
  • 29
    85-94589 SLEEVE, SPARK PLUG LEAD TO DISTRIBUTOR
    SLEEVE, SPARK PLUG LEAD TO DISTRIBUTOR
  • 30
    25-26547 GROMMET, SPARK PLUG LEAD
    GROMMET, SPARK PLUG LEAD
  • 31
    63319 RETAINER, HIGH TENSION LEADS
    RETAINER, HIGH TENSION LEADS
  • 31A
    62877 RETAINER, HIGH TENSION LEADS
    RETAINER, HIGH TENSION LEADS
  • 32
    10-28638 SCREW, HIGH TENSION LEAD RETAINER (3/4")
    SCREW, HIGH TENSION LEAD RETAINER (3/4")
  • 33
    33-97180Q SPARK PLUG (CHAMPION L-77V)
    SPARK PLUG (CHAMPION L-77V)
  • 34
    85-63709A1 PROTECTOR, SPARK PLUG LEAD
    PROTECTOR, SPARK PLUG LEAD
  • 35
    23-57459 SLEEVE, SPARK PLUG LEAD (LEADS 1, 2, 3)
    ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS
    SLEEVE, SPARK PLUG LEAD (LEADS 1, 2, 3)
    ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS
  • 36
    84-821945A10 HIGH TENSION CABLE ASSEMBLY, DISTRIBUTOR CAP TO COIL
    HIGH TENSION CABLE ASSEMBLY, DISTRIBUTOR CAP TO COIL
  • 37
    332-2854T01 BOOT, HIGH TENSION CABLE TO COIL
    BOOT, HIGH TENSION CABLE TO COIL
  • 38
    25-26547 GROMMET, HIGH TENSION LEAD
    GROMMET, HIGH TENSION LEAD
  • 39
    25-56474 GROMMET, HIGH TENSION LEAD
    GROMMET, HIGH TENSION LEAD
  • 40
    85-94589 SLEEVE, HIGH TENSION CABLE
    SLEEVE, HIGH TENSION CABLE
  • 41
    54-22627 CLIP, HIGH TENSION LEAD TO CRANKCASE
    CLIP, HIGH TENSION LEAD TO CRANKCASE
  • 42
    10-69079 SCREW, HIGH TENSION CLIP (7/16")
    SCREW, HIGH TENSION CLIP (7/16")
  • 43
    8M0084613 "D" WASHER, CLIP SCREW
    "D" WASHER, CLIP SCREW
  • 44
    59757 BRACKET, COIL WIRE
    BRACKET, COIL WIRE
  • 45
    10-69054 SCREW, BRACKET TO CRANKCASE (5/8")
    SCREW, BRACKET TO CRANKCASE (5/8")
  • 46
    13-26992 LOCKWASHER, BRACKET SCREW
    LOCKWASHER, BRACKET SCREW
