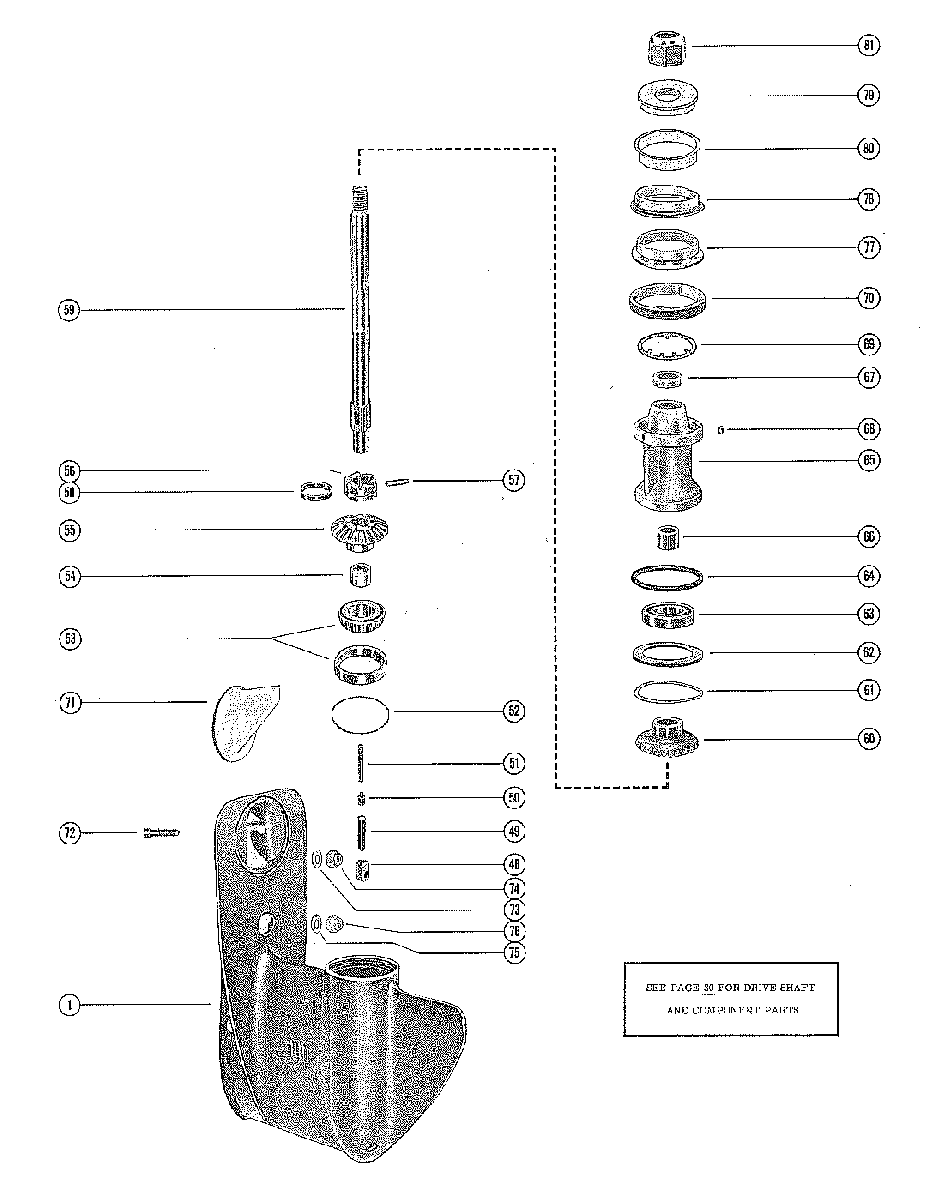

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 650 (3 CYL.) 3293184 THRU 3525440

  • №
    Артикул
    Название
  • -
    1643-6038A19 GEAR HOUSING ASSEMBLY, COMPLETE SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE SEE NOTE BELOW
  • -
    1643-6038A20 GEAR HOUSING ASSEMBLY, COMPLETE SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE SEE NOTE BELOW
  • 1
    1643-6038A6 GEAR HOUSING ASSEMBLY (SEE PAGE 30 FOR BREAKDOWN)
    GEAR HOUSING ASSEMBLY (SEE PAGE 30 FOR BREAKDOWN)
  • 48
    760394 CAM, SHIFT
    CAM, SHIFT
  • 49
    38441 FOLLOWER, CAM
    FOLLOWER, CAM
  • 50
    20843 SLIDE, CROSS PIN
    SLIDE, CROSS PIN
  • 51
    24-39845 SPRING, COMPRESSION - CAM FOLLOWER
    SPRING, COMPRESSION - CAM FOLLOWER
  • 52
    15-38374A1 SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)
    SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)
  • 53
    31-38356A1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 54
    31-21739 BEARING, ROLLER - FORWARD GEAR
    BEARING, ROLLER - FORWARD GEAR
  • 55
    43-60247T5 FORWARD GEAR ASSEMBLY
    FORWARD GEAR ASSEMBLY
  • 56
    52-92911T RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 57
    17-8M0020942 PIN, CROSS - RATCHET TO PROPELLER SHAFT
    PIN, CROSS - RATCHET TO PROPELLER SHAFT
  • 58
    24-38114 SPRING, RETAINING - CROSS PIN
    SPRING, RETAINING - CROSS PIN
  • 59
    44-75365 SHAFT PROPELLER
    SHAFT PROPELLER
  • 60
    43-79159T REVERSE GEAR ASSEMBLY
    REVERSE GEAR ASSEMBLY
  • 61
    15-20927A1 SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
    SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
  • 62
    12-32004 WASHER, THRUST - REVERSE GEAR
    WASHER, THRUST - REVERSE GEAR
  • 63
    30-20839T BEARING, BALL - REVERSE GEAR
    BEARING, BALL - REVERSE GEAR
  • 64
    25-31986 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 65
    69386T1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 66
    31-21700 BEARING, ROLLER - BEARING CARRIER
    BEARING, ROLLER - BEARING CARRIER
  • 67
    26-56788 OIL SEAL, BEARING CARRIER (DOUBLE LIP)
    OIL SEAL, BEARING CARRIER (DOUBLE LIP)
  • 68
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 69
    14-53012 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 70
    11-87763 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 71
    97-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSING
    TRIM TAB ASSEMBLY, GEAR HOUSING
  • 72
    10-66024 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
    SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
  • 73
    12-856774 WASHER, DRIVE SHAFT HOUSING STUD (3/8")
    WASHER, DRIVE SHAFT HOUSING STUD (3/8")
  • 74
    11-8M0042636 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING (3/8")
    NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING (3/8")
  • 75
    12-45176 WASHER, DRIVE SHAFT HOUSING STUD (7/16")
    WASHER, DRIVE SHAFT HOUSING STUD (7/16")
  • 76
    11-34933 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING (7/16")
    NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING (7/16")
  • 77
    65758 THRUST HUB ASSEMBLY, FRONT
    THRUST HUB ASSEMBLY, FRONT
  • 78
    12-62123 WASHER, CUPPED - THRUST HUB
    WASHER, CUPPED - THRUST HUB
  • 79
    62124A1 THRUST HUB ASSEMBLY, REAR
    THRUST HUB ASSEMBLY, REAR
  • 80
    12-31992 WASHER, CUPPED - THRUST HUB
    WASHER, CUPPED - THRUST HUB
  • 81
    11-82671120 NUT, PROPELLER
    NUT, PROPELLER
