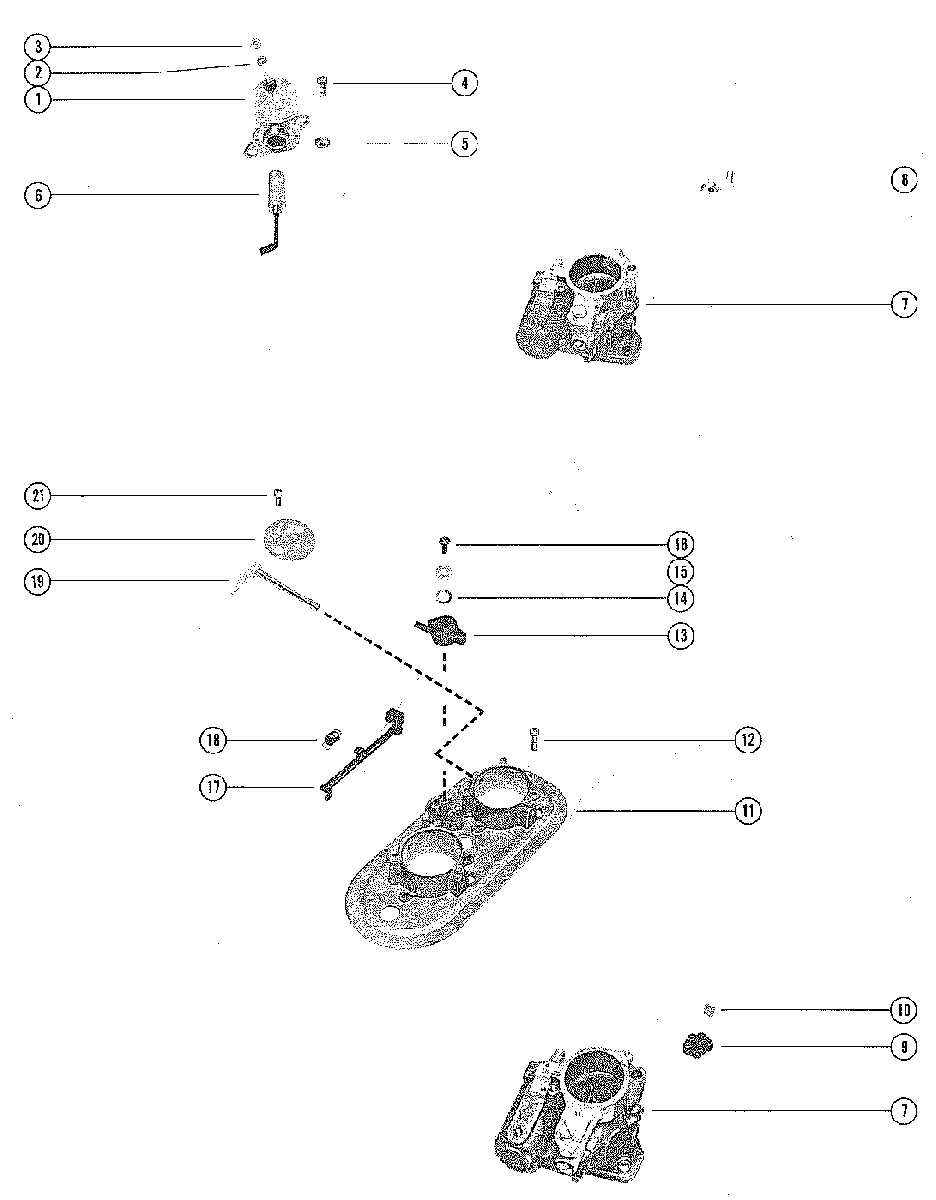

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 650 (3 CYL.) 3293184 THRU 3525440

  • №
    Артикул
    Название
  • 1
    60549A7 CHOKE SOLENOID
    CHOKE SOLENOID
  • 2
    13-26996 LOCKWASHER, HARNESS LEAD TO CHOKE SOLENOID
    LOCKWASHER, HARNESS LEAD TO CHOKE SOLENOID
  • 3
    11-68219 NUT, HARNESS LEAD TO CHOKE SOLENOID ATTACHING
    NUT, HARNESS LEAD TO CHOKE SOLENOID ATTACHING
  • 4
    10-33524 SCREW, CHOKE SOLENOID ATTACHING (5/8")
    SCREW, CHOKE SOLENOID ATTACHING (5/8")
  • 5
    11-29250 NUT, CHOKE SOLENOID ATTACHING SCREWS
    NUT, CHOKE SOLENOID ATTACHING SCREWS
  • 6
    56074A5 PLUNGER ASSEMBLY, CHOKE SOLENOID
    PLUNGER ASSEMBLY, CHOKE SOLENOID
  • 7
    1360-4663A1 CARBURETOR ASSEMBLY, COMPLETE
    CARBURETOR ASSEMBLY, COMPLETE
  • 8
    60568 LEVER, THROTTLE
    LEVER, THROTTLE
  • 9
    60292A1 COUPLING ASSEMBLY, THROTTLE SHAFT
    COUPLING ASSEMBLY, THROTTLE SHAFT
  • 10
    28-89694 INSERT, THROTTLE SHAFT COUPLING
    INSERT, THROTTLE SHAFT COUPLING
  • 11
    60120 HOUSING, CHOKE
    HOUSING, CHOKE
  • 12
    10-38055 SCREW, CHOKE HOUSING MOUNTING (5/8")
    SCREW, CHOKE HOUSING MOUNTING (5/8")
  • 13
    60312 LEVER, MANUAL CHOKE
    LEVER, MANUAL CHOKE
  • 14
    13-34632 WASHER, WAVE - CHOKE LEVER TO CHOKE HOUSING SCREW
    WASHER, WAVE - CHOKE LEVER TO CHOKE HOUSING SCREW
  • 15
    12-34392 WASHER, CHOKE LEVER TO CHOKE HOUSING SCREW
    WASHER, CHOKE LEVER TO CHOKE HOUSING SCREW
  • 16
    10-20597 SCREW, CHOKE LEVER TO CHOKE HOUSING (3/8")
    SCREW, CHOKE LEVER TO CHOKE HOUSING (3/8")
  • 17
    60305 ROD, CHOKE
    ROD, CHOKE
  • 18
    24-60288 SPRING, TENSION - CHOKE ROD
    SPRING, TENSION - CHOKE ROD
  • 19
    60290A1 CHOKE ARM LEVER ASSEMBLY
    CHOKE ARM LEVER ASSEMBLY
  • 20
    60291 SHUTTER, CHOKE - CARBURETOR
    SHUTTER, CHOKE - CARBURETOR
  • 21
    10-60846 SCREW, CHOKE SHUTTER TO CHOKE LEVER (1/4")
    SCREW, CHOKE SHUTTER TO CHOKE LEVER (1/4")
