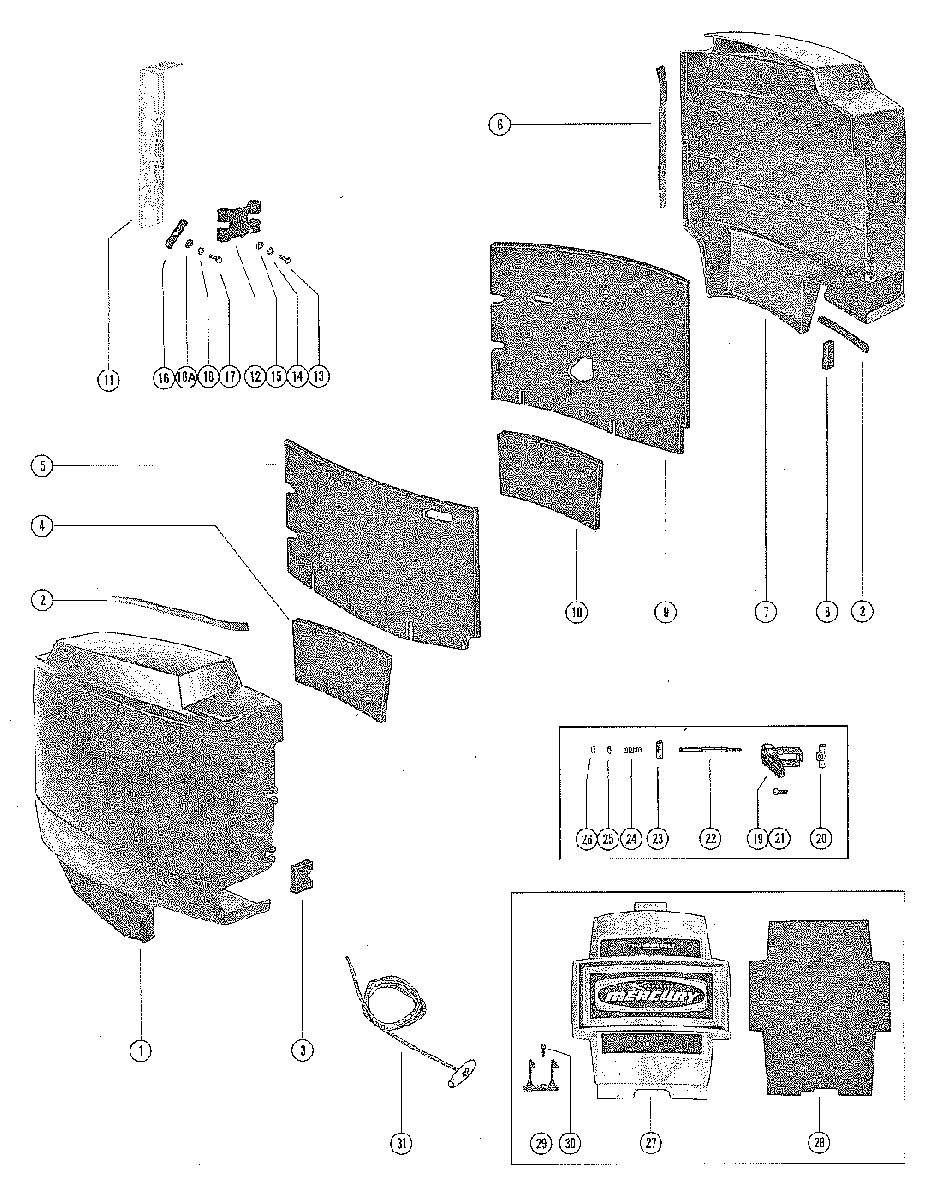

COWLING AND FRONT COVER для Mercury - 650 (3 CYL.) 3293184 THRU 3525440

  • №
    Артикул
    Название
  • 1
    2142-6228A1 COWL ASSEMBLY (STARBOARD)
    COWL ASSEMBLY (STARBOARD)
  • 2
    61661 SEAL, RUBBER - COWL
    SEAL, RUBBER - COWL
  • 3
    26-60297 SEAL, FUEL CONNECTOR - COWL
    SEAL, FUEL CONNECTOR - COWL
  • 4
    61634 BLANKET, SOUND ABSORBING (LOWER)
    BLANKET, SOUND ABSORBING (LOWER)
  • 5
    61633 BLANKET, SOUND ABSORBING (UPPER)
    BLANKET, SOUND ABSORBING (UPPER)
  • 6
    61662 SEAL, RUBBER - COWL
    SEAL, RUBBER - COWL
  • 7
    2141-6227A1 COWL ASSEMBLY (PORT)
    COWL ASSEMBLY (PORT)
  • 2
    61661 SEAL, RUBBER - COWL
    SEAL, RUBBER - COWL
  • 6
    61662 SEAL, RUBBER - COWL
    SEAL, RUBBER - COWL
  • 8
    26-60298 SEAL, CONTROL CABLES - COWL
    SEAL, CONTROL CABLES - COWL
  • 9
    61631 BLANKET, SOUND ABSORBING (UPPER)
    BLANKET, SOUND ABSORBING (UPPER)
  • 10
    61632 BLANKET, SOUND ABSORBING (LOWER)
    BLANKET, SOUND ABSORBING (LOWER)
  • 11
    60121 BRACKET, COWL SEALING - REAR
    BRACKET, COWL SEALING - REAR
  • 12
    90980 BRACKET, COWL HINGE
    BRACKET, COWL HINGE
  • 13
    10-455611 SCREW, HINGE BRACKET TO COWL SEALING BRACKET (1 1/8")
    SCREW, HINGE BRACKET TO COWL SEALING BRACKET (1 1/8")
  • 14
    13-26992 LOCKWASHER, HINGE BRACKET SCREW
    LOCKWASHER, HINGE BRACKET SCREW
  • 15
    12-37998 WASHER, HINGE BRACKET SCREW
    WASHER, HINGE BRACKET SCREW
  • 16
    90979 PIN, COWL HINGE
    PIN, COWL HINGE
  • 17
    10-53167T SCREW, PIN TO COWL (7/8")
    SCREW, PIN TO COWL (7/8")
  • 18
    13-26993 LOCKWASHER, PIN ATTACHING SCREW
    LOCKWASHER, PIN ATTACHING SCREW
  • 18A
    12-20722 WASHER, PIN ATTACHING SCREW (STARBOARD SIDE ONLY)
    WASHER, PIN ATTACHING SCREW (STARBOARD SIDE ONLY)
  • 19
    46785A5 COWL LATCH ASSEMBLY
    COWL LATCH ASSEMBLY
  • 20
    62628 BARREL, COWL LATCH
    BARREL, COWL LATCH
  • 21
    10-31312 SCREW, LATCH ASSEMBLY TO BARREL (7/8")
    SCREW, LATCH ASSEMBLY TO BARREL (7/8")
  • 22
    15222 BAR, ADJUSTMENT - COWL LATCH
    BAR, ADJUSTMENT - COWL LATCH
  • 23
    62629 BARREL, COWL LATCH
    BARREL, COWL LATCH
  • 24
    24-62624 SPRING, TENSION - COWL LATCH
    SPRING, TENSION - COWL LATCH
  • 25
    12-30164 WASHER, ADJUSTMENT BAR TO BARREL
    WASHER, ADJUSTMENT BAR TO BARREL
  • 26
    11-53153 NUT, ADJUSTMENT BAR TO BARREL
    NUT, ADJUSTMENT BAR TO BARREL
  • 27
    2143-7254A3 COWL FRONT COVER ASSEMBLY
    COWL FRONT COVER ASSEMBLY
  • 28
    61663 BLANKET, SOUND ABSORBING - FRONT COVER
    BLANKET, SOUND ABSORBING - FRONT COVER
  • 29
    61158T HOOK, COWL FRONT COVER FASTENING
    HOOK, COWL FRONT COVER FASTENING
  • 30
    10-69570 SCREW, FASTENING HOOK TO COWL FRONT COVER (3/4")
    SCREW, FASTENING HOOK TO COWL FRONT COVER (3/4")
  • 31
    47341A11 STARTER ROPE ASSEMBLY (FOR MANUAL STARTING ONLY)
    STARTER ROPE ASSEMBLY (FOR MANUAL STARTING ONLY)
