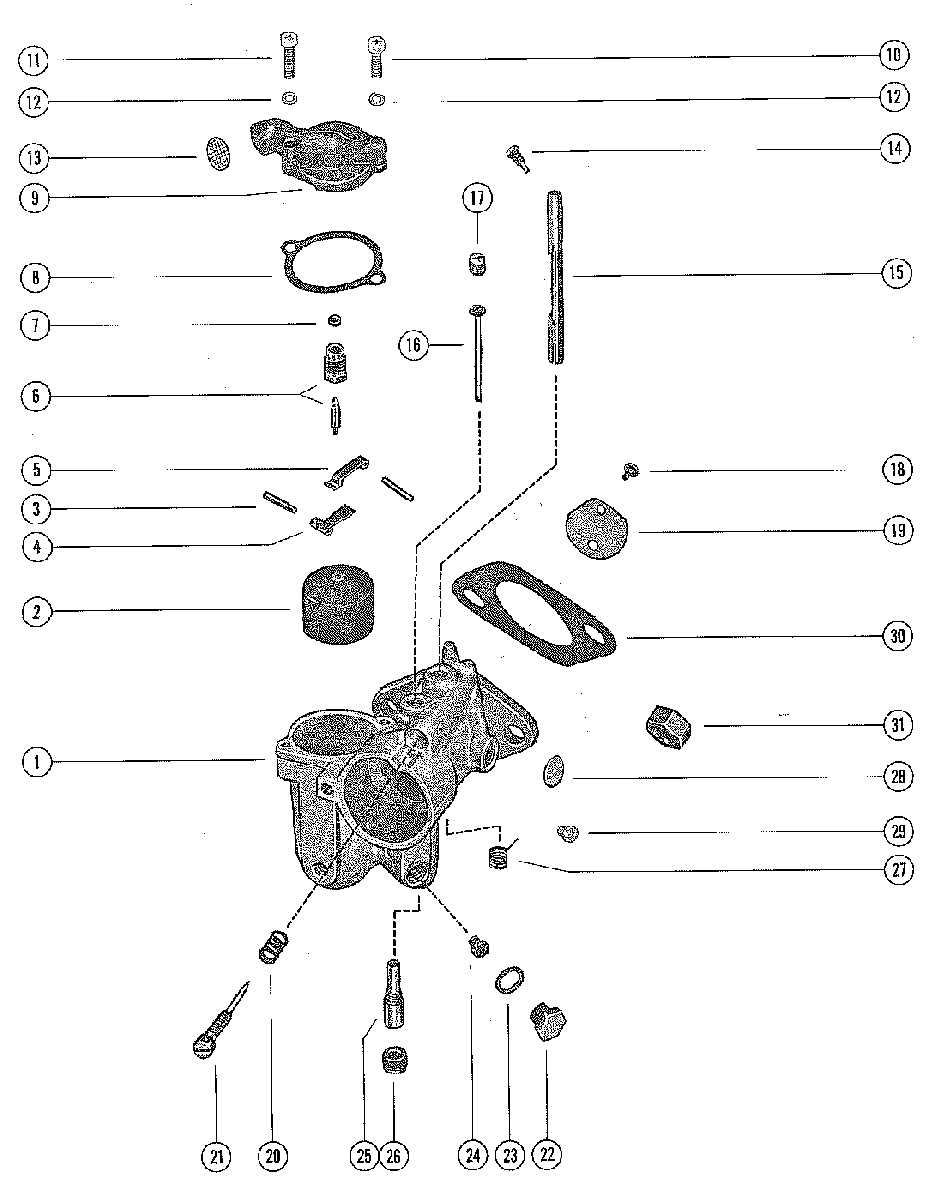

CARBURETOR ASSEMBLY для Mercury - 650 (3 CYL.) 3293184 THRU 3525440
-
№АртикулНазвание
-
11360-4663A1 CARBURETOR ASSEMBLY, COMPLETE (WMK-5)CARBURETOR ASSEMBLY, COMPLETE (WMK-5)
-
21395-8673 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
390-8M0143356 PIN, FLOAT LEVER PINIONPIN, FLOAT LEVER PINION
-
490-8M0143356 LEVER, FLOAT (LOWER)LEVER, FLOAT (LOWER)
-
590-8M0143356 LEVER, FLOAT (UPPER)LEVER, FLOAT (UPPER)
-
61395-83181 INLET NEEDLE, SEAT AND GASKETINLET NEEDLE, SEAT AND GASKET
-
790-8M0143356 GASKET, FLOAT INLET SEATGASKET, FLOAT INLET SEAT
-
890-8M0143356 GASKET, FLOAT BOWL COVERGASKET, FLOAT BOWL COVER
-
91399-5152 COVER, FLOAT BOWLCOVER, FLOAT BOWL
-
1010-52195 SCREW, FLOAT BOWL COVER (SHORT)SCREW, FLOAT BOWL COVER (SHORT)
-
111395-4804 SCREW, FLOAT BOWL COVER (LONG)SCREW, FLOAT BOWL COVER (LONG)
-
1213-26995 LOCKWASHER, FLOAT BOWL COVER SCREWLOCKWASHER, FLOAT BOWL COVER SCREW
-
131395-4805 SCREEN, FILTERSCREEN, FILTER
-
141395-4806 SCREW, THROTTLE STOP LEVERSCREW, THROTTLE STOP LEVER
-
151395-4807 SHAFT, THROTTLESHAFT, THROTTLE
-
1690-8M0143356 TUBE, IDLETUBE, IDLE
-
171395-4540 SCREW, BODY (IDLE TUBE)SCREW, BODY (IDLE TUBE)
-
1890-8M0143356 SCREW AND LOCKWASHER, THROTTLE SHUTTERSCREW AND LOCKWASHER, THROTTLE SHUTTER
-
191395-9017 SHUTTER, THROTTLESHUTTER, THROTTLE
-
2024-27160 SPRING, IDLE ADJUSTMENT SCREWSPRING, IDLE ADJUSTMENT SCREW
-
211399-3515 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
221395-4541 SCREW, PLUG - MAIN FUEL JET CHANNELSCREW, PLUG - MAIN FUEL JET CHANNEL
-
2390-8M0143356 GASKET, JET CHANNEL PLUG SCREWGASKET, JET CHANNEL PLUG SCREW
-
241399-3796 JET, MAIN FUEL (.076)JET, MAIN FUEL (.076)
-
241399-3794 JET, MAIN FUEL (.074) - STANDARDJET, MAIN FUEL (.074) - STANDARD
-
241395-6207 JET, MAIN FUEL (.072)JET, MAIN FUEL (.072)
-
241395-6030 JET, MAIN FUEL (.070)JET, MAIN FUEL (.070)
-
2590-8M0143356 NOZZLE, MAINNOZZLE, MAIN
-
261395-4542 SCREW, PLUG - MAIN NOZZLESCREW, PLUG - MAIN NOZZLE
-
2790-8M0143356 SPRING, THROTTLE SHAFT RETURN (LOWER CARBURETOR)SPRING, THROTTLE SHAFT RETURN (LOWER CARBURETOR)
-
2790-8M0143356 SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR)
-
2890-8M0143356 WELCH PLUG, BODY CHANNELWELCH PLUG, BODY CHANNEL
-
291395-4543 SCREW, BODY CHANNELSCREW, BODY CHANNEL
-
--1395-879194024 GASKET AND PACKING SET (1 PER CARBURETOR)GASKET AND PACKING SET (1 PER CARBURETOR)
-
--1395-51091 REPAIR PARTS KIT (1 PER CARBURETOR)REPAIR PARTS KIT (1 PER CARBURETOR)
-
3027-481641 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
3111-862902 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
