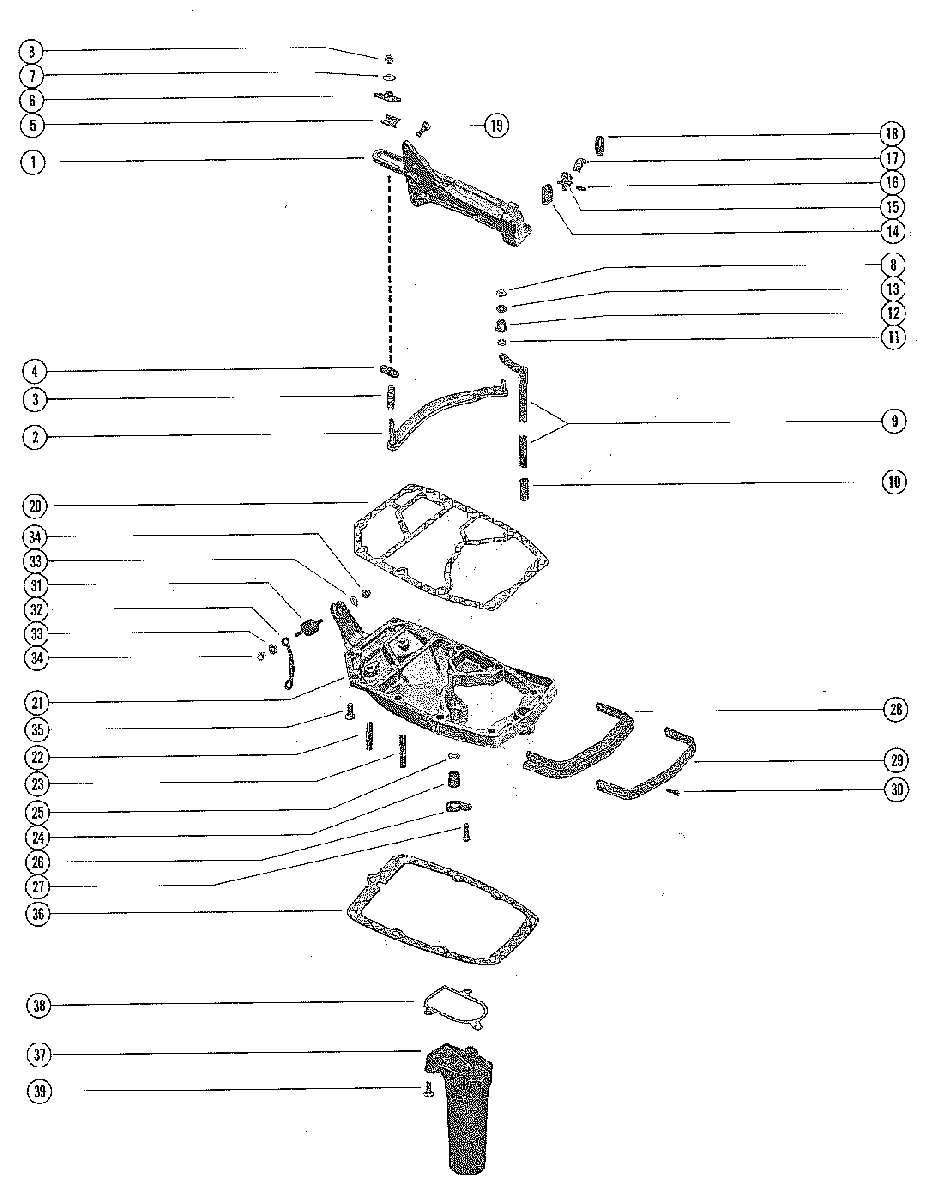

SHIFT LINKAGE AND EXHAUST PLATE для Mercury - 650 (3 CYL.) 3293184 THRU 3525440

  • №
    Артикул
    Название
  • 1
    814283A2 BRACKET, ANCHOR - CONTROL CABLES
    BRACKET, ANCHOR - CONTROL CABLES
  • 2
    60283A1 LINK ASSEMBLY, SHIFT SHAFT AND ANCHOR BRACKET
    LINK ASSEMBLY, SHIFT SHAFT AND ANCHOR BRACKET
  • 3
    24-20099 SPRING, LINK TO ANCHOR BRACKET
    SPRING, LINK TO ANCHOR BRACKET
  • 4
    37896 GUIDE BLOCK, LINK
    GUIDE BLOCK, LINK
  • 5
    52100 WEAR PLATE, NYLON - LINK
    WEAR PLATE, NYLON - LINK
  • 6
    8M0036768 LATCH, LINK TO ANCHOR BRACKET
    LATCH, LINK TO ANCHOR BRACKET
  • 7
    12-69056 WASHER, LINK LATCH
    WASHER, LINK LATCH
  • 8
    11-826709109 NUT, LINK ATTACHING
    NUT, LINK ATTACHING
  • 9
    60304A2 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
    SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
  • 9
    60304A1 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
  • 10
    93960A1 COUPLING, SHIFT SHAFT
    COUPLING, SHIFT SHAFT
  • 11
    13-29720 WASHER, WAVE - SHIFT SHAFT TO LINK
    WASHER, WAVE - SHIFT SHAFT TO LINK
  • 12
    23-26600 BUSHING, NYLON - SHIFT SHAFT TO LINK
    BUSHING, NYLON - SHIFT SHAFT TO LINK
  • 13
    12-24664 WASHER, LINK (SHIFT SHAFT END)
    WASHER, LINK (SHIFT SHAFT END)
  • 14
    39519 CUP, RETAINER - ANCHOR BRACKET
    CUP, RETAINER - ANCHOR BRACKET
  • 15
    87609A1 LEVER, NYLON - SHIFT CABLE LOCKING
    LEVER, NYLON - SHIFT CABLE LOCKING
  • 16
    17-47175 PIN, LOCKING LEVER AND COVER FASTENING
    PIN, LOCKING LEVER AND COVER FASTENING
  • 17
    39536 LINK, LOCKING LEVER TO COVER
    LINK, LOCKING LEVER TO COVER
  • 18
    39667 COVER, NYLON - SHIFT CABLE
    COVER, NYLON - SHIFT CABLE
  • 19
    10-53167T SCREW, ANCHOR BRACKET TO CRANKCASE AND CYL BLOCK (7/8")
    SCREW, ANCHOR BRACKET TO CRANKCASE AND CYL BLOCK (7/8")
  • 20
    27-60317 GASKET, POWERHEAD TO EXHAUST PLATE
    GASKET, POWERHEAD TO EXHAUST PLATE
  • 21
    74007A1 EXHAUST PLATE ASSEMBLY
    EXHAUST PLATE ASSEMBLY
  • 22
    16-8M0034449 STUD, EXHAUST PLATE TO DRIVE SHAFT HOUSING (1 11/16")
    STUD, EXHAUST PLATE TO DRIVE SHAFT HOUSING (1 11/16")
  • 23
    16-68166 STUD, EXHAUST PLATE TO DRIVE SHAFT HOUSING (2 1/8")
    STUD, EXHAUST PLATE TO DRIVE SHAFT HOUSING (2 1/8")
  • 24
    26-38452 SEAL, WATER INLET TUBE
    SEAL, WATER INLET TUBE
  • 25
    12-38453 WASHER, NYLON - WATER INLET TUBE SEAL
    WASHER, NYLON - WATER INLET TUBE SEAL
  • 26
    38500 RETAINER, WATER INLET TUBE SEAL
    RETAINER, WATER INLET TUBE SEAL
  • 27
    10-69069 SCREW, RETAINER TO EXHAUST PLATE (3/4")
    SCREW, RETAINER TO EXHAUST PLATE (3/4")
  • 28
    60307 SEAL, EXHAUST PLATE
    SEAL, EXHAUST PLATE
  • 29
    60306 STRIP, RETAINING - EXHAUST PLATE SEAL
    STRIP, RETAINING - EXHAUST PLATE SEAL
  • 30
    10-62568 SCREW, RETAINING STRIP TO EXHAUST PLATE (3/8")
    SCREW, RETAINING STRIP TO EXHAUST PLATE (3/8")
  • 31
    90435 MOUNT, RUBBER - EXHAUST PLATE TO REAR COWL SUPPORT
    MOUNT, RUBBER - EXHAUST PLATE TO REAR COWL SUPPORT
  • 32
    49651A1 GROUND STRAP ASS'Y, EXHAUST PLATE TO REAR COWL SUPPORT
    GROUND STRAP ASS'Y, EXHAUST PLATE TO REAR COWL SUPPORT
  • 33
    12-69057 WASHER, RUBBER MOUNT ATTACHING
    WASHER, RUBBER MOUNT ATTACHING
  • 34
    11-8267089 NUT, RUBBER MOUNT TO EXHAUST PLATE
    NUT, RUBBER MOUNT TO EXHAUST PLATE
  • 35
    10-35386 SCREW, EXHAUST PLATE TO CYLINDER BLOCK (1")
    SCREW, EXHAUST PLATE TO CYLINDER BLOCK (1")
  • 36
    27-385011 GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING
    GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING
  • 37
    58911 EXHAUST TUBE, ADAPTOR
    EXHAUST TUBE, ADAPTOR
  • 38
    27-602801 GASKET, EXHAUST TUBE TO EXHAUST PLATE
    GASKET, EXHAUST TUBE TO EXHAUST PLATE
  • 39
    10-49668 SCREW, EXHAUST TUBE TO EXHAUST PLATE (3/4")
    SCREW, EXHAUST TUBE TO EXHAUST PLATE (3/4")
