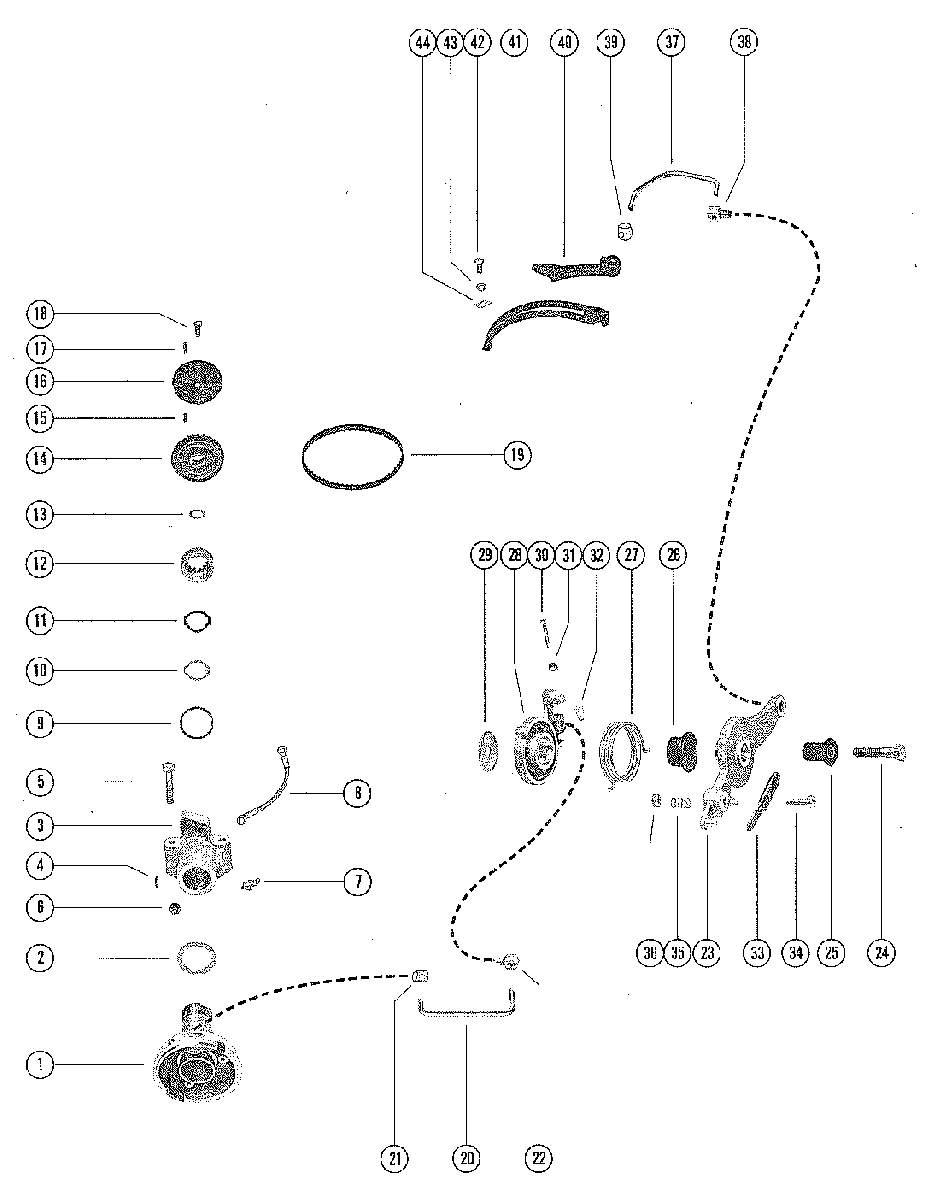

DISTRIBUTOR ADAPTOR AND THROTTLE LINKAGE для Mercury - 650 (3 CYL.) 3293184 THRU 3525440

  • №
    Артикул
    Название
  • 1
    332-4797A9 HOUSING ASSEMBLY, DISTRIBUTOR
    HOUSING ASSEMBLY, DISTRIBUTOR
  • 2
    12-60569 WASHER, DISTRIBUTOR ADAPTOR TO DISTRIBUTOR HOUSING
    WASHER, DISTRIBUTOR ADAPTOR TO DISTRIBUTOR HOUSING
  • 3
    60576 ADAPTOR, DISTRIBUTOR
    ADAPTOR, DISTRIBUTOR
  • 4
    17-8M0084726 PIN, DISTRIBUTOR ADAPTOR TO CRANKCASE LOCATING
    PIN, DISTRIBUTOR ADAPTOR TO CRANKCASE LOCATING
  • 5
    10-69090 SCREW, DISTRIBUTOR ADAPTOR TO CRANKCASE (2 1/4")
    SCREW, DISTRIBUTOR ADAPTOR TO CRANKCASE (2 1/4")
  • 6
    11-29250 NUT, DISTRIBUTOR ADAPTOR SCREW
    NUT, DISTRIBUTOR ADAPTOR SCREW
  • 7
    22-25094 FITTING, GREASE - DISTRIBUTOR ADAPTOR
    FITTING, GREASE - DISTRIBUTOR ADAPTOR
  • 8
    84-60871A3 CABLE ASSEMBLY, ADAPTOR TO FRONT SUPPORT BRACKET
    CABLE ASSEMBLY, ADAPTOR TO FRONT SUPPORT BRACKET
  • 9
    12-27939 WASHER, DISTRIBUTOR ADAPTOR
    WASHER, DISTRIBUTOR ADAPTOR
  • 10
    14-27960 TAB WASHER, ADAPTOR CAP FASTENING
    TAB WASHER, ADAPTOR CAP FASTENING
  • 11
    13-27959 WASHER, WAVE - DISTRIBUTOR ADAPTOR
    WASHER, WAVE - DISTRIBUTOR ADAPTOR
  • 12
    54567 CAP, DISTRIBUTOR HOUSING
    CAP, DISTRIBUTOR HOUSING
  • 13
    23-29909 SPACER, DRIVE PULLEY
    SPACER, DRIVE PULLEY
  • 14
    29906A1 DRIVEN PULLEY ASSEMBLY
    DRIVEN PULLEY ASSEMBLY
  • 15
    17-29908 PIN, ROLL - FLANGE LOCATING
    PIN, ROLL - FLANGE LOCATING
  • 16
    29907 FLANGE, DRIVEN PULLEY
    FLANGE, DRIVEN PULLEY
  • 17
    28-29910 KEY, DISTRIBUTOR DRIVER
    KEY, DISTRIBUTOR DRIVER
  • 18
    10-68554 SCREW, PULLEY CLAMPING (1/2")
    SCREW, PULLEY CLAMPING (1/2")
  • 19
    20140 BELT, TIMING
    BELT, TIMING
  • 20
    60571 ROD, LINK - SPARK ADVANCE
    ROD, LINK - SPARK ADVANCE
  • 21
    60572 BARREL, NYLON - LINK ROD TO DISTRIBUTOR HOUSING
    BARREL, NYLON - LINK ROD TO DISTRIBUTOR HOUSING
  • 22
    27947 SWIVEL, LINK ROD TO SPARK ADVANCE LEVER
    SWIVEL, LINK ROD TO SPARK ADVANCE LEVER
  • 23
    60578 LEVER, THROTTLE CONTROL
    LEVER, THROTTLE CONTROL
  • 24
    737-5537 SCREW, THROTTLE CONTROL LEVER TO CYLINDER BLOCK (1 3/4")
    SCREW, THROTTLE CONTROL LEVER TO CYLINDER BLOCK (1 3/4")
  • 25
    23-55164 BUSHING, THROTTLE CONTROL LEVER SCREW
    BUSHING, THROTTLE CONTROL LEVER SCREW
  • 26
    23-55171 BUSHING, THROTTLE CONTROL LEVER SCREW
    BUSHING, THROTTLE CONTROL LEVER SCREW
  • 27
    24-55162 SPRING, RETURN - SPARK ADVANCE LEVER
    SPRING, RETURN - SPARK ADVANCE LEVER
  • 28
    60579 LEVER, SPARK ADVANCE
    LEVER, SPARK ADVANCE
  • 29
    12-46765 WASHER, THROTTLE CONTROL LEVER SCREW
    WASHER, THROTTLE CONTROL LEVER SCREW
  • 30
    10-45210 SCREW, SPARK ADVANCE ADJUSTING (1 1/4")
    SCREW, SPARK ADVANCE ADJUSTING (1 1/4")
  • 31
    11-68219 NUT, SPARK ADVANCE ADJUSTING SCREW
    NUT, SPARK ADVANCE ADJUSTING SCREW
  • 32
    48039 CAP, SPARK ADVANCE ADJUSTING SCREW
    CAP, SPARK ADVANCE ADJUSTING SCREW
  • 33
    39483 LATCH, THROTTLE CONTROL LEVER (THROTTLE CABLE)
    LATCH, THROTTLE CONTROL LEVER (THROTTLE CABLE)
  • 34
    10-69026 SCREW, LATCH TO THROTTLE CONTROL LEVER (7/8")
    SCREW, LATCH TO THROTTLE CONTROL LEVER (7/8")
  • 35
    24-20099 SPRING, COMPRESSION - LATCH SCREW
    SPRING, COMPRESSION - LATCH SCREW
  • 36
    11-826709109 NUT, LATCH ATTACHING SCREW
    NUT, LATCH ATTACHING SCREW
  • 37
    60573 ROD, LINK - THROTTLE
    ROD, LINK - THROTTLE
  • 38
    27947 SWIVEL, LINK ROD TO THROTTLE CONTROL LEVER
    SWIVEL, LINK ROD TO THROTTLE CONTROL LEVER
  • 39
    60572 BARREL, NYLON - THROTTLE LINK ROD TO ACTUATOR CAM
    BARREL, NYLON - THROTTLE LINK ROD TO ACTUATOR CAM
  • 40
    65914 CAM, NYLON - THROTTLE ACTUATOR
    CAM, NYLON - THROTTLE ACTUATOR
  • 41
    76864 HOUSING, NYLONG - THROTTLE ACTUATOR
    HOUSING, NYLONG - THROTTLE ACTUATOR
  • 42
    10-37571 SCREW, HOUSING TO CRANKCASE (1/2")
    SCREW, HOUSING TO CRANKCASE (1/2")
  • 43
    13-26996 LOCKWASHER, HOUSING TO CRANKCASE SCREW
    LOCKWASHER, HOUSING TO CRANKCASE SCREW
  • 44
    60570 PLATE, RETAINER - ACTUATOR HOUSING
    PLATE, RETAINER - ACTUATOR HOUSING
