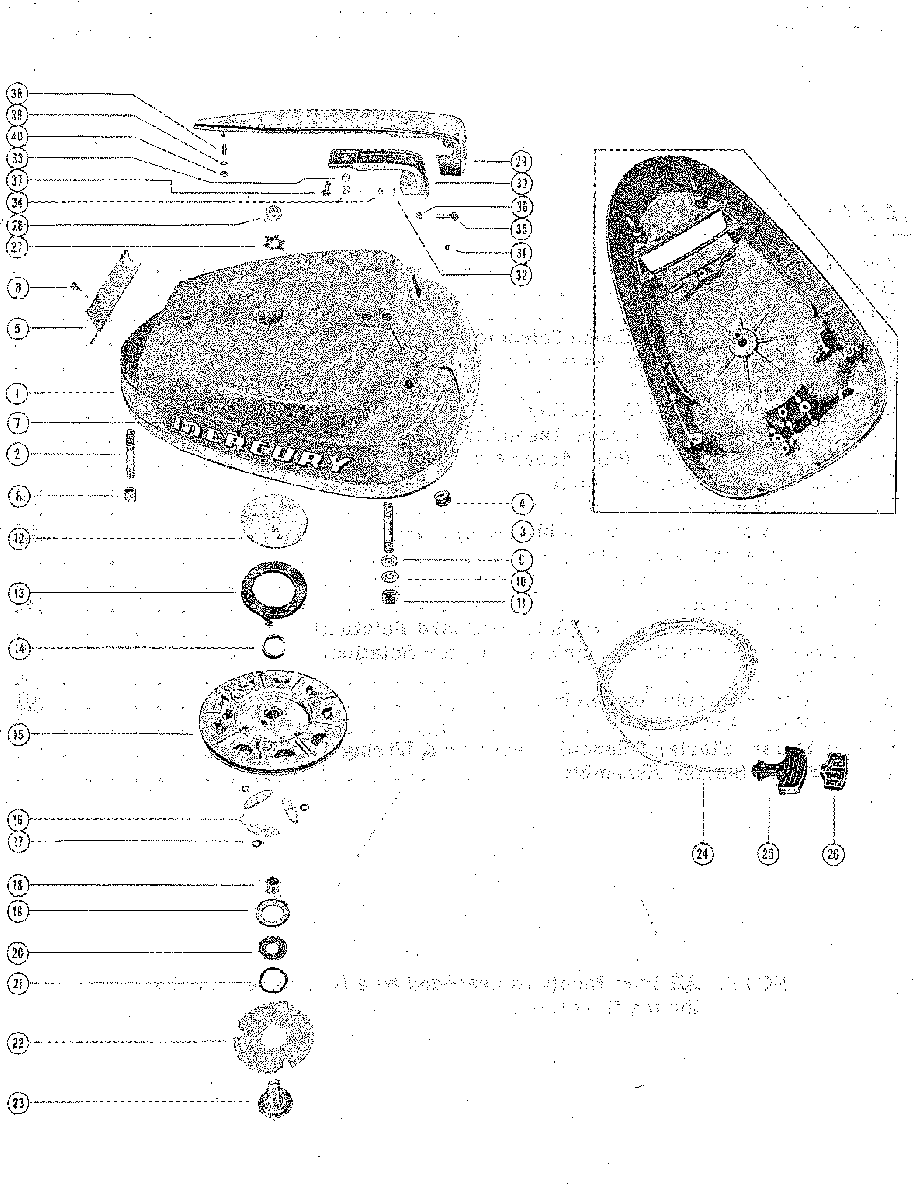

TOP COWL AND STARTER ASSEMBLY для Mercury - 600 (6 CYL.) 1303411 THRU 1542744

  • №
    Артикул
    Название
  • 1
    177-1657A2 TOP COWL ASSEMBLY
    TOP COWL ASSEMBLY
  • 2
    16-20500 STUD, REAR - TOP COWL TO COVER
    STUD, REAR - TOP COWL TO COVER
  • 3
    16-20353 STUD, FRONT - TOP COWL TO CRANKCASE
    STUD, FRONT - TOP COWL TO CRANKCASE
  • 4
    25-20116 GROMMET, CHOKE KNOB
    GROMMET, CHOKE KNOB
  • 5
    28967 SCREEN, VENT - TOP COWL
    SCREEN, VENT - TOP COWL
  • 6
    10-26668 SCREW, VENT SCREEN TO TOP COWL
    SCREW, VENT SCREEN TO TOP COWL
  • 7
    37-29834 DECAL SET, TOP COWL
    DECAL SET, TOP COWL
  • 8
    23-20326 SPACER, TOP COWL STUD
    SPACER, TOP COWL STUD
  • 9
    12-20028 WASHER, TOP COWL STUD (1/16")
    WASHER, TOP COWL STUD (1/16")
  • 10
    12-69057 WASHER, TOP COWL STUD (3/4" OD)
    WASHER, TOP COWL STUD (3/4" OD)
  • --
    12-20583 WASHER, TOP COWL STUD (1/32")
    WASHER, TOP COWL STUD (1/32")
  • 11
    11-8267089 NUT, TOP COWL FASTENING
    NUT, TOP COWL FASTENING
  • 12
    20155 RETAINER, STARTER SPRING
    RETAINER, STARTER SPRING
  • 13
    24-29340T02 SPRING, STARTER REWIND
    SPRING, STARTER REWIND
  • 14
    23-20159 BUSHING, SPRING GUIDE
    BUSHING, SPRING GUIDE
  • 15
    50-64008A1 SHEAVE ASSEMBLY
    SHEAVE ASSEMBLY
  • 16
    20162 PAWL, STARTER
    PAWL, STARTER
  • 17
    13-29402 WASHER, WAVE - STARTER PAWL
    WASHER, WAVE - STARTER PAWL
  • 18
    23-20158 SPACER, SHEAVE SHAFT
    SPACER, SHEAVE SHAFT
  • 19
    26179 RETAINER, WAVE WASHER
    RETAINER, WAVE WASHER
  • 20
    12-26180 WASHER, WAVE WASHER RETAINER
    WASHER, WAVE WASHER RETAINER
  • 21
    13-20160 WASHER, WAVE - RETAINER TENSION
    WASHER, WAVE - RETAINER TENSION
  • 22
    20164 PLATE, RETAINER - STARTER PAWL
    PLATE, RETAINER - STARTER PAWL
  • 23
    20157 SHAFT, SHEAVE
    SHAFT, SHEAVE
  • 24
    50-12066Q10 STARTER CABLE ASSEMBLY
    STARTER CABLE ASSEMBLY
  • 25
    28747 HANDLE, STARTER CABLE
    HANDLE, STARTER CABLE
  • 26
    79470A1 RETAINER, STARTER CABLE AND HANDLE
    RETAINER, STARTER CABLE AND HANDLE
  • 27
    14-20165 TAB WASHER, SHEAVE SHAFT NUT
    TAB WASHER, SHEAVE SHAFT NUT
  • 28
    11-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)
    NUT, SHEAVE SHAFT (LEFT HAND THREAD)
  • 29
    31875 HANDLE, CHROME - TOP COWL
    HANDLE, CHROME - TOP COWL
  • 30
    31003 HANDLE, INSIDE - TOP COWL
    HANDLE, INSIDE - TOP COWL
  • 31
    29413 BUTTON, BUMPER - TOP COWL HANDLE
    BUTTON, BUMPER - TOP COWL HANDLE
  • 32
    12-69057 WASHER, LOWER HANDLE STUD (3/4" OD)
    WASHER, LOWER HANDLE STUD (3/4" OD)
  • 33
    12-29245 WASHER, CENTER HANDLE STUD (1/2" OD)
    WASHER, CENTER HANDLE STUD (1/2" OD)
  • 34
    11-21825 NUT, INSIDE HANDLE TO CHROME HANDLE STUDS
    NUT, INSIDE HANDLE TO CHROME HANDLE STUDS
  • 35
    10-56500 SCREW, FRONT _ HANDLE TO TOP COWL (1 1/4")
    SCREW, FRONT _ HANDLE TO TOP COWL (1 1/4")
  • 36
    11-8267089 NUT, FRONT - HANDLE FASTENING SCREW
    NUT, FRONT - HANDLE FASTENING SCREW
  • 37
    10-29199 SCREW, CENTER - HANDLE TO TOP COWL (1")
    SCREW, CENTER - HANDLE TO TOP COWL (1")
  • 38
    23-29561 BUSHING, REAR HANDLE STUD
    BUSHING, REAR HANDLE STUD
  • 39
    12-29245 WASHER, REAR HANDLE STUD
    WASHER, REAR HANDLE STUD
  • 40
    11-21825 NUT, REAR HANDLE STUD
    NUT, REAR HANDLE STUD
