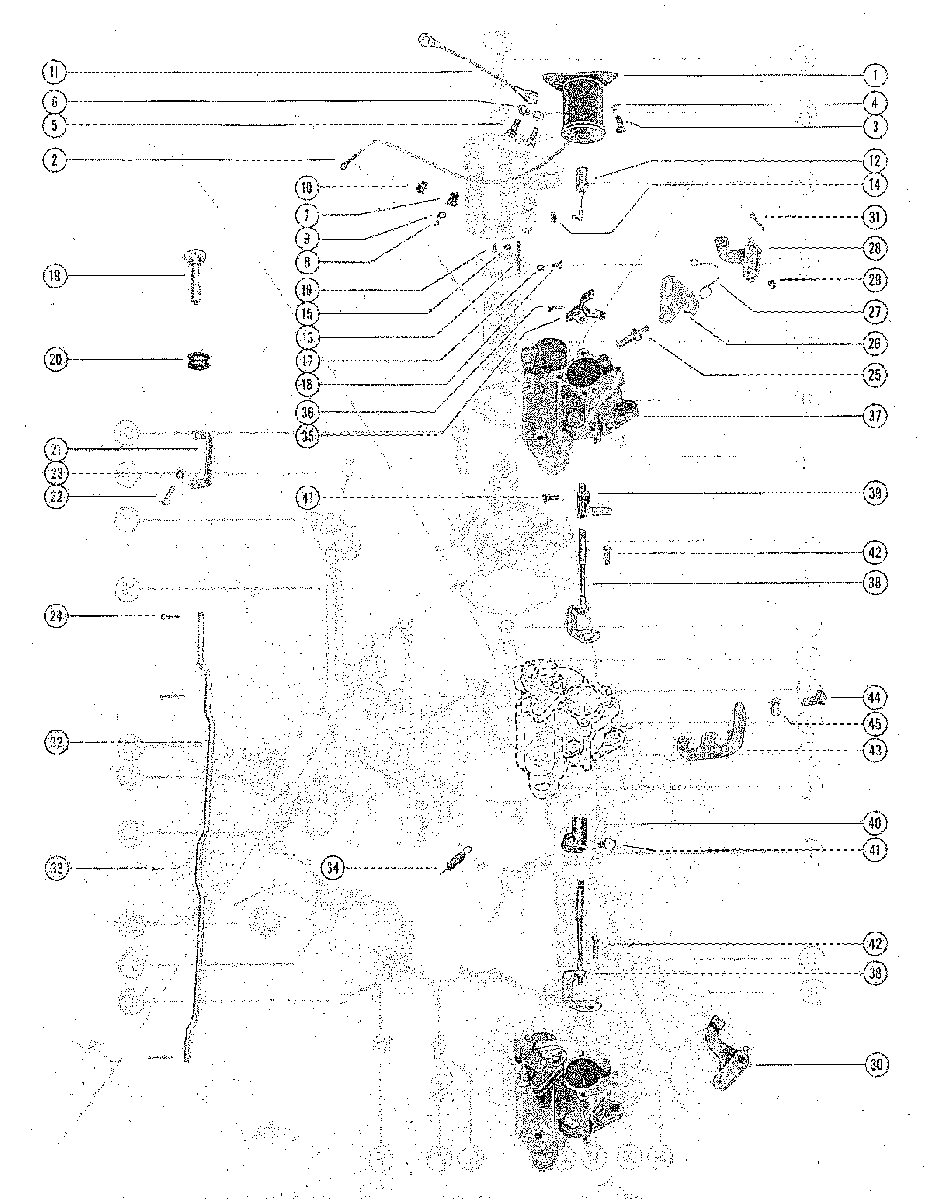

CARBURETOR LINKAGE & CHOKE SOLENOID для Mercury - 600 (6 CYL.) 1303411 THRU 1542744

  • №
    Артикул
    Название
  • 1
    29690 CHOKE SOLENOID, TOP COWL
    CHOKE SOLENOID, TOP COWL
  • 2
    30050 TERMINAL, CHOKE SOLENOID LEAD
    TERMINAL, CHOKE SOLENOID LEAD
  • 3
    10-24773 SCREW, CHOKE SOLENOID TO TOP COWL
    SCREW, CHOKE SOLENOID TO TOP COWL
  • 4
    13-26991 LOCKWASHER, CHOKE SOLENOID SCREW
    LOCKWASHER, CHOKE SOLENOID SCREW
  • 5
    10-20540 SCREW, CHOKE SOLENOID TO TOP COWL
    SCREW, CHOKE SOLENOID TO TOP COWL
  • 6
    13-26992 LOCKWASHER, CHOKE SOLENOID SCREW
    LOCKWASHER, CHOKE SOLENOID SCREW
  • 7
    54-648552 CLIP, CHOKE SOLENOID WIRE
    CLIP, CHOKE SOLENOID WIRE
  • 8
    10-24239 SCREW, WIRE CLIP TO TOP COWL
    SCREW, WIRE CLIP TO TOP COWL
  • 9
    8M0084613 "D" WASHER, WIRE CLIP FASTENING SCREW
    "D" WASHER, WIRE CLIP FASTENING SCREW
  • 10
    54-22783 "S" CLIP, CHOKE SOLENOID WIRE TO TOP COWL
    "S" CLIP, CHOKE SOLENOID WIRE TO TOP COWL
  • 11
    26716A1 GROUND STRAP ASS'Y, CHOKE SOLENOID TO ADAPTOR
    GROUND STRAP ASS'Y, CHOKE SOLENOID TO ADAPTOR
  • 12
    27031A1 PLUNGER AND LINK ASS'Y, CHOKE SOLENOID
    PLUNGER AND LINK ASS'Y, CHOKE SOLENOID
  • 13
    27126 PLATE, ADAPTOR - PLUNGER TO UPPER CHOKE ROD
    PLATE, ADAPTOR - PLUNGER TO UPPER CHOKE ROD
  • 14
    25-26633 GROMMET, ADAPTOR PLATE
    GROMMET, ADAPTOR PLATE
  • 15
    12-26014 WASHER, PLUNGER LINK
    WASHER, PLUNGER LINK
  • 16
    18-26953 COTTER PIN, PLATE TO PLUNGER LINK
    COTTER PIN, PLATE TO PLUNGER LINK
  • 17
    13-26994 LOCKWASHER, ADAPTOR PLATE SCREW
    LOCKWASHER, ADAPTOR PLATE SCREW
  • 18
    10-21281 SCREW, ADAPTOR PLATE TO UPPER CHOKE ROD
    SCREW, ADAPTOR PLATE TO UPPER CHOKE ROD
  • 19
    90242A1 KNOB, CHOKE ROD
    KNOB, CHOKE ROD
  • 20
    25-20116 GROMMET, CHOKE ROD
    GROMMET, CHOKE ROD
  • 21
    29702 "U" LINK, CHOKE KNOB TO UPPER CHOKE ROD
    "U" LINK, CHOKE KNOB TO UPPER CHOKE ROD
  • 22
    10-69022 SCREW, "U" LINK TO CHOKE KNOB
    SCREW, "U" LINK TO CHOKE KNOB
  • 23
    13-26996 LOCKWASHER, "U" LINK SCREW
    LOCKWASHER, "U" LINK SCREW
  • 24
    18-26953 COTTER, PIN, "U" LINK TO UPPER CHOKE ROD
    COTTER, PIN, "U" LINK TO UPPER CHOKE ROD
  • 25
    10-20176 SCREW, CHOKE LEVER PIVOT PIN
    SCREW, CHOKE LEVER PIVOT PIN
  • 26
    30014 SHUTTER, CHOKE
    SHUTTER, CHOKE
  • 27
    24-26067 SPRING, CHOKE SHUTTER
    SPRING, CHOKE SHUTTER
  • 28
    26645A1 CHOKE LEVER ASSEMBLY (UPPER CARBURETOR)
    CHOKE LEVER ASSEMBLY (UPPER CARBURETOR)
  • 29
    23-26888 BUSHING, NYLON - UPPER CHOKE LEVER
    BUSHING, NYLON - UPPER CHOKE LEVER
  • 30
    25881A1 CHOKE LEVER ASSEMBLY (CENTER AND LOWER CARBURETOR)
    CHOKE LEVER ASSEMBLY (CENTER AND LOWER CARBURETOR)
  • 31
    18-26953 COTTER PIN, CHOKE AND ROD FASTENING
    COTTER PIN, CHOKE AND ROD FASTENING
  • 32
    29701 ROD, CHOKE
    ROD, CHOKE
  • 33
    17-25391 RIVET, CHOKE LEVER TO CHOKE ROD
    RIVET, CHOKE LEVER TO CHOKE ROD
  • 34
    24-28965 SPRING, CHOKE ROD POSITIONING
    SPRING, CHOKE ROD POSITIONING
  • 35
    27977 CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
    CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
  • 36
    1395-6027 SCREW, CLUSTER TO THROTTLE LEVER
    SCREW, CLUSTER TO THROTTLE LEVER
  • 37
    1334-1664 CARBURETOR ASSEMBLY, COMPLETE
    CARBURETOR ASSEMBLY, COMPLETE
  • 38
    28007A3 THROTTLE PICKUP BRACKET ASSEMBLY
    THROTTLE PICKUP BRACKET ASSEMBLY
  • 39
    27869 CLAMP, UPPER - THROTTLE PICKUP BRACKET
    CLAMP, UPPER - THROTTLE PICKUP BRACKET
  • 40
    27870 CLAMP, LOWER - THROTTLE PICKUP BRACKET
    CLAMP, LOWER - THROTTLE PICKUP BRACKET
  • 41
    10-69022 SCREW, UPPER AND LOWER CLAMP FASTENING
    SCREW, UPPER AND LOWER CLAMP FASTENING
  • 42
    10-29239 SCREW, THROTTLE BRACKET MOUNTING
    SCREW, THROTTLE BRACKET MOUNTING
  • 43
    26977 BRACKET, COIL AND RETAINER
    BRACKET, COIL AND RETAINER
  • 44
    10-98253 SCREW, RETAINER BRACKET TO CENTER CARBURETOR
    SCREW, RETAINER BRACKET TO CENTER CARBURETOR
  • 45
    13-21272 LOCKWASHER, BRACKET FASTENING SCREW
    LOCKWASHER, BRACKET FASTENING SCREW
