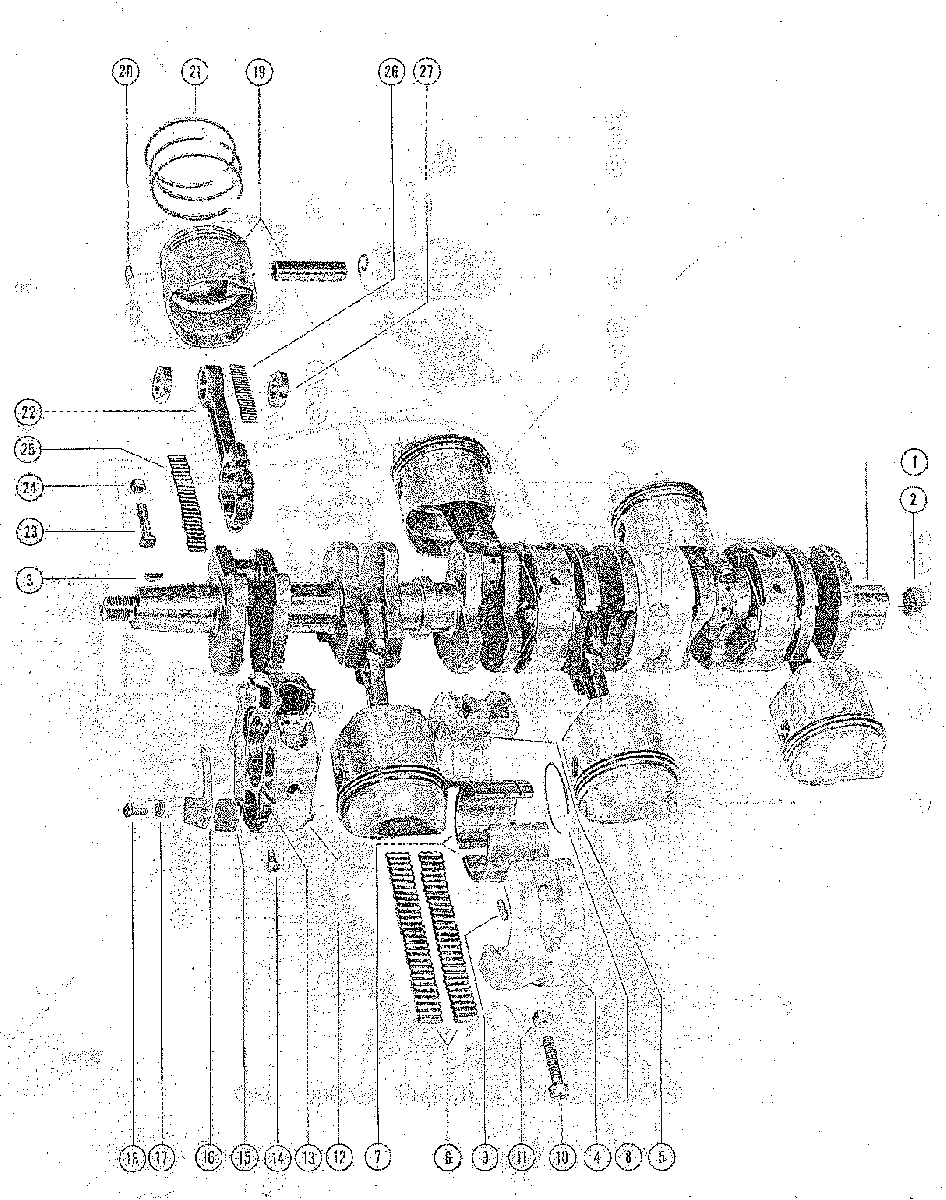

CRANKSHAFT,PISTONS AND CONNECTING RODS для Mercury - 600 (6 CYL.) 1303411 THRU 1542744

  • №
    Артикул
    Название
  • 1
    414-1735 CRANKSHAFT
    CRANKSHAFT
  • 2
    20043 OILER,FELT-DRIVE SHAFT SPLINE
    OILER,FELT-DRIVE SHAFT SPLINE
  • 3
    28-20094 KEY,FYWHEEL DRIVE
    KEY,FYWHEEL DRIVE
  • 4
    521-1490A1 CENTER MAIN BEARING ASSEMBLY
    CENTER MAIN BEARING ASSEMBLY
  • 5
    17-20032 DOWEL PIN,CENTER MAIN BEARING
    DOWEL PIN,CENTER MAIN BEARING
  • 6
    29-714221 ,BEARING,NEEDLE-OUTER RACE
    ,BEARING,NEEDLE-OUTER RACE
  • 7
    26113T RACE,OUTER (PAIR)
    RACE,OUTER (PAIR)
  • 8
    53-26933 RING,SNAP-OUTER RACE
    RING,SNAP-OUTER RACE
  • 9
    17-27732 DOWEL PIN,STEPPED
    DOWEL PIN,STEPPED
  • 10
    10-22968 SCREW,CENTER MAIN BEARING CLAMPING
    SCREW,CENTER MAIN BEARING CLAMPING
  • 11
    11-20184 NUT,BEARING CLAMPING SCREW
    NUT,BEARING CLAMPING SCREW
  • 12
    527-1999A2 MAIN BEARING ASSEMBLY,VALVE TYPE
    MAIN BEARING ASSEMBLY,VALVE TYPE
  • 13
    17-20032 DOWEL PIN,MAIN BEARING
    DOWEL PIN,MAIN BEARING
  • 14
    10-22654 SCREW,MAIN BEARING CLAMPING
    SCREW,MAIN BEARING CLAMPING
  • 15
    34-88498A1 REED SET ,MATCHED-MAIN BEARING
    REED SET ,MATCHED-MAIN BEARING
  • 16
    34-20053 REED STOP,MAIN BEARING REED VALVES
    REED STOP,MAIN BEARING REED VALVES
  • 17
    12-26014 WASHER,REED STOP MOUNTING SCREW
    WASHER,REED STOP MOUNTING SCREW
  • 18
    10-20055 SCREW,REED STOP MOUNTING
    SCREW,REED STOP MOUNTING
  • 19
    724-2537A2 PISTON AND PISTON PIN ASSEMBLY
    PISTON AND PISTON PIN ASSEMBLY
  • 20
    40-20057 LOCK RING,PISTON PIN
    LOCK RING,PISTON PIN
  • 21
    39-27841A12 RING,PISTON
    RING,PISTON
  • 22
    600-2748A2 CONNECTING ROD AND CAP ASSEMBLY (SEE NOTE BELOW)
    CONNECTING ROD AND CAP ASSEMBLY (SEE NOTE BELOW)
  • 23
    10-45379 SCREW,CONNECTING ROD
    SCREW,CONNECTING ROD
  • 24
    11-20061 ,NUT,CONNECTING ROD SCREW
    ,NUT,CONNECTING ROD SCREW
  • 25
    29-20046T BEARING,NEEDLE-CRANKPIN
    BEARING,NEEDLE-CRANKPIN
  • 26
    29-20063 BEARING,NEEDLE-PISTON PIN
    BEARING,NEEDLE-PISTON PIN
  • 27
    12-28121 WASHER,NEEDLE LOCATING
    WASHER,NEEDLE LOCATING
  • --
    724-2553A2 PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
    PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
  • --
    39-28616A12 RINGS,PISTONS (.105 OVERSIZE)
    RINGS,PISTONS (.105 OVERSIZE)
