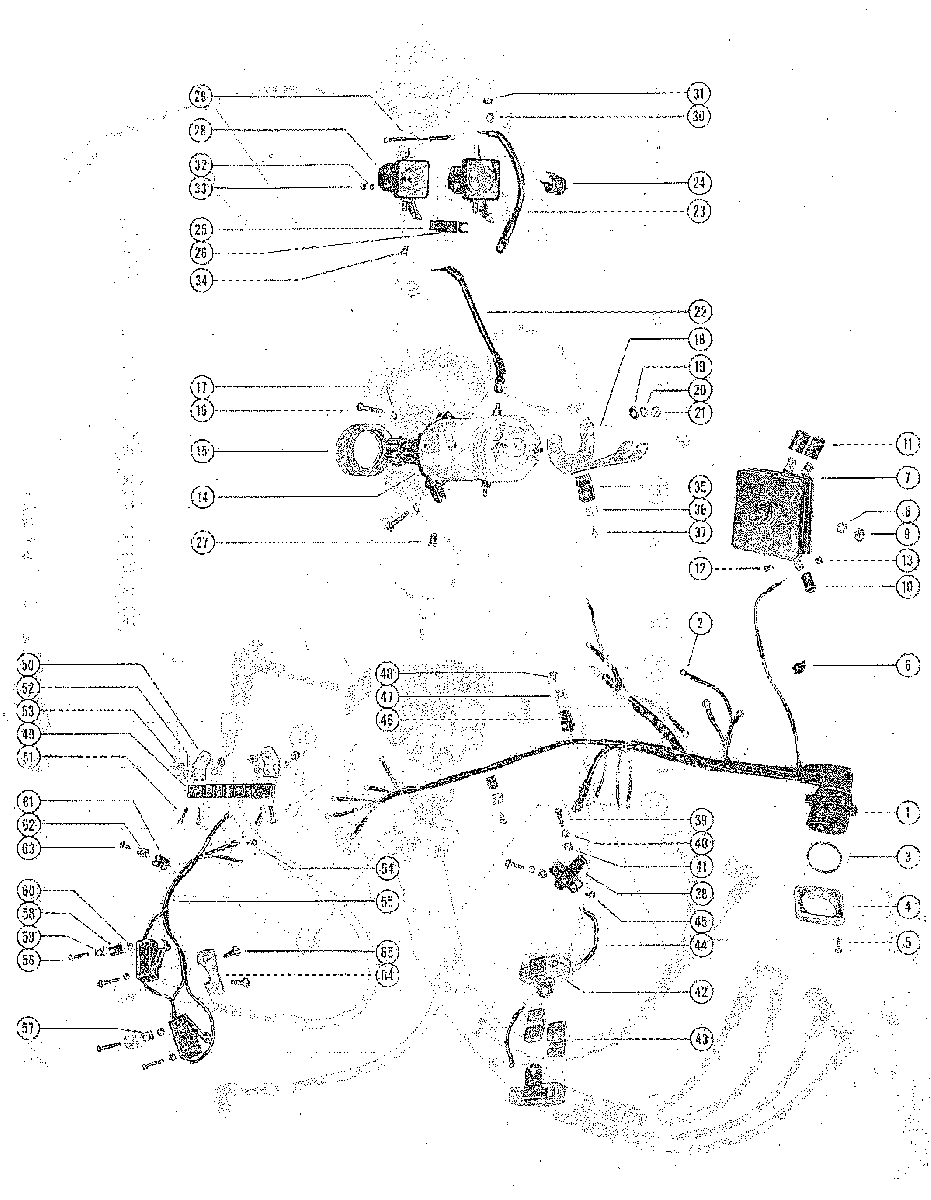

STARTER MOTOR, STARTER SOLENOID, RECTIFIER & WIRING HARNESS для Mercury - 600 (6 CYL.) 1303411 THRU 1542744

  • №
    Артикул
    Название
  • 1
    29999 WIRING HARNESS, INTERNAL
    WIRING HARNESS, INTERNAL
  • 2
    30050 TERMINAL, HARNESS AND MERCURY SWITCH LEADS
    TERMINAL, HARNESS AND MERCURY SWITCH LEADS
  • 3
    24-28975 SPRING, GARTER-INTERNAL WIRING HARNESS
    SPRING, GARTER-INTERNAL WIRING HARNESS
  • 4
    26079A2 PLATE, WIRING HARNESS TO BOTTOM COWL
    PLATE, WIRING HARNESS TO BOTTOM COWL
  • 5
    10-45893 SCREW, HARNESS PLATE FASTENING
    SCREW, HARNESS PLATE FASTENING
  • 6
    54-22783 "S" CLIP, RECTIFIER HARNESS LEAD TO BOTTOM COWL
    "S" CLIP, RECTIFIER HARNESS LEAD TO BOTTOM COWL
  • 7
    32177A2 RECTIFIER ASSEMBLY
    RECTIFIER ASSEMBLY
  • 8
    13-26993 LOCKWASHER, RECTIFIER MOUNTING SCREW
    LOCKWASHER, RECTIFIER MOUNTING SCREW
  • 9
    11-21929 ,NUT, RECTIFIER MOUNTING SCREW
    ,NUT, RECTIFIER MOUNTING SCREW
  • 10
    32-28052 SLEEVE, RUBBER-RECTIFIER HARNESS LEAD
    SLEEVE, RUBBER-RECTIFIER HARNESS LEAD
  • 11
    32-28373 SLEEVE, RUBBER - RECTIFIER STATOR LEAD
    SLEEVE, RUBBER - RECTIFIER STATOR LEAD
  • 12
    10-35400 SCREW, HARNESS AND STATOR LEAD TO RECTIFIER
    SCREW, HARNESS AND STATOR LEAD TO RECTIFIER
  • 13
    11-826709106 NUT, HARNESS AND STATOR LEADS FASTENING SCREW
    NUT, HARNESS AND STATOR LEADS FASTENING SCREW
  • 14
    50-48720 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 15
    15-26496 SHIM, STARTER MOTOR TO CRANKCASE FLANGE
    SHIM, STARTER MOTOR TO CRANKCASE FLANGE
  • 16
    10-22698 SCREW, STARTER MOTOR TO CRANKCASE FLANGE
    SCREW, STARTER MOTOR TO CRANKCASE FLANGE
  • 17
    13-26993 LOCKWASER, STARTER MOTOR FASTENING SCREW
    LOCKWASER, STARTER MOTOR FASTENING SCREW
  • 18
    27026 BRACKET, SUPPORT-STARTER STARTER MOTOR
    BRACKET, SUPPORT-STARTER STARTER MOTOR
  • 19
    12-24664 WASHER, THRU BOLT-BRACKET TO STARTER MOTOR
    WASHER, THRU BOLT-BRACKET TO STARTER MOTOR
  • 20
    13-26992 LOCKWASHER, THRU BOLT-BRACKET TO STARTER MOTOR
    LOCKWASHER, THRU BOLT-BRACKET TO STARTER MOTOR
  • 21
    11-20890 NUT, THRU BOLT-BRACKET TO STARTER MOTOR
    NUT, THRU BOLT-BRACKET TO STARTER MOTOR
  • 22
    26511 CABLE, WIRE-STARTER TO UPPER STARTER SOLENOID
    CABLE, WIRE-STARTER TO UPPER STARTER SOLENOID
  • 23
    84-93389A12 CABLE, WIRE-STARTER TO LOWER STARTER SOLENOID
    CABLE, WIRE-STARTER TO LOWER STARTER SOLENOID
  • 24
    54-20534 CLAMP, LOWER CABLE-STARTER TO STARTER SOLENOID
    CLAMP, LOWER CABLE-STARTER TO STARTER SOLENOID
  • 25
    26478A1 JUMPER ASSEMBLY, SOLENOID TO SOLENOID
    JUMPER ASSEMBLY, SOLENOID TO SOLENOID
  • 26
    32-26627 SLEEVE, JUMPER
    SLEEVE, JUMPER
  • 27
    10-69035 SCREW, WIRING HARNESS GROUND LEAD TO STARTER MOTOR
    SCREW, WIRING HARNESS GROUND LEAD TO STARTER MOTOR
  • 28
    32268 SOLENOID, STARTER
    SOLENOID, STARTER
  • 29
    28922 LEAD, JUMPER-SOLENOID TO SOLENOID
    LEAD, JUMPER-SOLENOID TO SOLENOID
  • 30
    13-26993 LOCKWASHERM SOLENOID TERMINAL (5/16)
    LOCKWASHERM SOLENOID TERMINAL (5/16)
  • 31
    11-22053 NUT, SOLENOID TERMINAL (5/16)
    NUT, SOLENOID TERMINAL (5/16)
  • 32
    13-26996 LOCKWASHER, SOLENOID TERMINAL (#10)
    LOCKWASHER, SOLENOID TERMINAL (#10)
  • 33
    11-68219 NUT, SOLENOID TERMINAL #10)
    NUT, SOLENOID TERMINAL #10)
  • 34
    10-29238 SCREW, SOLENOID TO STARTER MOTOR
    SCREW, SOLENOID TO STARTER MOTOR
  • 35
    54-23567 CLAMP, WIRING HARNESS TO STARTER SUPPORT BRACKET
    CLAMP, WIRING HARNESS TO STARTER SUPPORT BRACKET
  • 36
    8M0084613 "D" WASHER, HARNESS CLAMP
    "D" WASHER, HARNESS CLAMP
  • 37
    10-62568 SCREW, HARNESS CLAMP FASTENING
    SCREW, HARNESS CLAMP FASTENING
  • 38
    29714 BLOCK, TERMINAL-UPPER FUEL PUMP PAD
    BLOCK, TERMINAL-UPPER FUEL PUMP PAD
  • 39
    10-24241 SCREW, TERMINAL BLOCK FASTENING
    SCREW, TERMINAL BLOCK FASTENING
  • 40
    13-26996 LOCKWASHER, TERMINAL BLOCK FASTENING SCREW
    LOCKWASHER, TERMINAL BLOCK FASTENING SCREW
  • 41
    12-26014 WASHER, TERMINAL BLOCK FASTENING SCREW
    WASHER, TERMINAL BLOCK FASTENING SCREW
  • 42
    393-1572 RESISTOR
    RESISTOR
  • 43
    30449 SNUBBER, RESISTOR TO TRANSFER PORT COVER SCREW
    SNUBBER, RESISTOR TO TRANSFER PORT COVER SCREW
  • 44
    29112 JUMPER, RESISTOR TO RESISTOR AND RESISTOR TO TERMINAL BLOCK
    JUMPER, RESISTOR TO RESISTOR AND RESISTOR TO TERMINAL BLOCK
  • 45
    10-35400 SCREW, HARNESS AND RESISTOR LEADS TO TERMINAL BLOCK
    SCREW, HARNESS AND RESISTOR LEADS TO TERMINAL BLOCK
  • 46
    54-22740 CLIP, WIRING HARNESS TO CRANKCASE AND CYLINDER BLOCK COVER
    CLIP, WIRING HARNESS TO CRANKCASE AND CYLINDER BLOCK COVER
  • 47
    8M0084613 "D" WASHER, HARNESS CLIP
    "D" WASHER, HARNESS CLIP
  • 48
    10-8M0113176 SCREW, HARNESS CLIP FASTENING
    SCREW, HARNESS CLIP FASTENING
  • 49
    29765 BLOCK, TERMINAL-EXHAUST COVER
    BLOCK, TERMINAL-EXHAUST COVER
  • 50
    29764 BRACKET, TERMINAL BLOCK TO EXHAUST COVER
    BRACKET, TERMINAL BLOCK TO EXHAUST COVER
  • 51
    10-22523 SCREW, TERMINAL BLOCK TO BRACKET
    SCREW, TERMINAL BLOCK TO BRACKET
  • 52
    12-26014 WASHER, TERMINAL BLOCK FASTENING SCREW
    WASHER, TERMINAL BLOCK FASTENING SCREW
  • 53
    11-20110 NUT, TERMINAL BLOCK FASTENING SCREW
    NUT, TERMINAL BLOCK FASTENING SCREW
  • --
    37-29903 DECAL, TERMINAL BLOCK COLOR LEADS
    DECAL, TERMINAL BLOCK COLOR LEADS
  • 54
    10-35400 SCREW, HARNESS AND SWITCH EADS TO TERMINAL BLOCK
    SCREW, HARNESS AND SWITCH EADS TO TERMINAL BLOCK
  • 55
    29726 SWITCH AND HARNESS ASSEMBLY, FORWARD AND REVERSE
    SWITCH AND HARNESS ASSEMBLY, FORWARD AND REVERSE
  • 56
    10-24219 SCREW, SWITCH AND HARNESS TO GUIDE RACK BRACKET
    SCREW, SWITCH AND HARNESS TO GUIDE RACK BRACKET
  • 57
    54-25231 CLIP, REVERSE SWITCH LEAD (1/8-3)
    CLIP, REVERSE SWITCH LEAD (1/8-3)
  • 58
    54-29721 CLIP, FORWARD SWITCH LEAD (1/4-3)
    CLIP, FORWARD SWITCH LEAD (1/4-3)
  • 59
    8M0084613 "D" WASHER, FORWARD AND REVERSE LEAD CLIP
    "D" WASHER, FORWARD AND REVERSE LEAD CLIP
  • 60
    11-20437 NUT, SWITCH AND HARNESS FASTENING SCREW
    NUT, SWITCH AND HARNESS FASTENING SCREW
  • 61
    54-26550 CLIP, SWITCH AND HARNESS LEAD
    CLIP, SWITCH AND HARNESS LEAD
  • 62
    8M0084613 "D" WASHER, HARNESS LEAD CLIP FASTENING SCREW
    "D" WASHER, HARNESS LEAD CLIP FASTENING SCREW
  • 63
    10-8M0113176 SCREW, HARNESS LEAD CLIP TO CRANKCASE
    SCREW, HARNESS LEAD CLIP TO CRANKCASE
  • 64
    29631 CAM, ACTUATOR-FORWARD AND REVERSE SWITCH
    CAM, ACTUATOR-FORWARD AND REVERSE SWITCH
  • 65
    10-29722 SCREW, ACTUATOR CAM TO PILOT ASSEMBLY
    SCREW, ACTUATOR CAM TO PILOT ASSEMBLY
