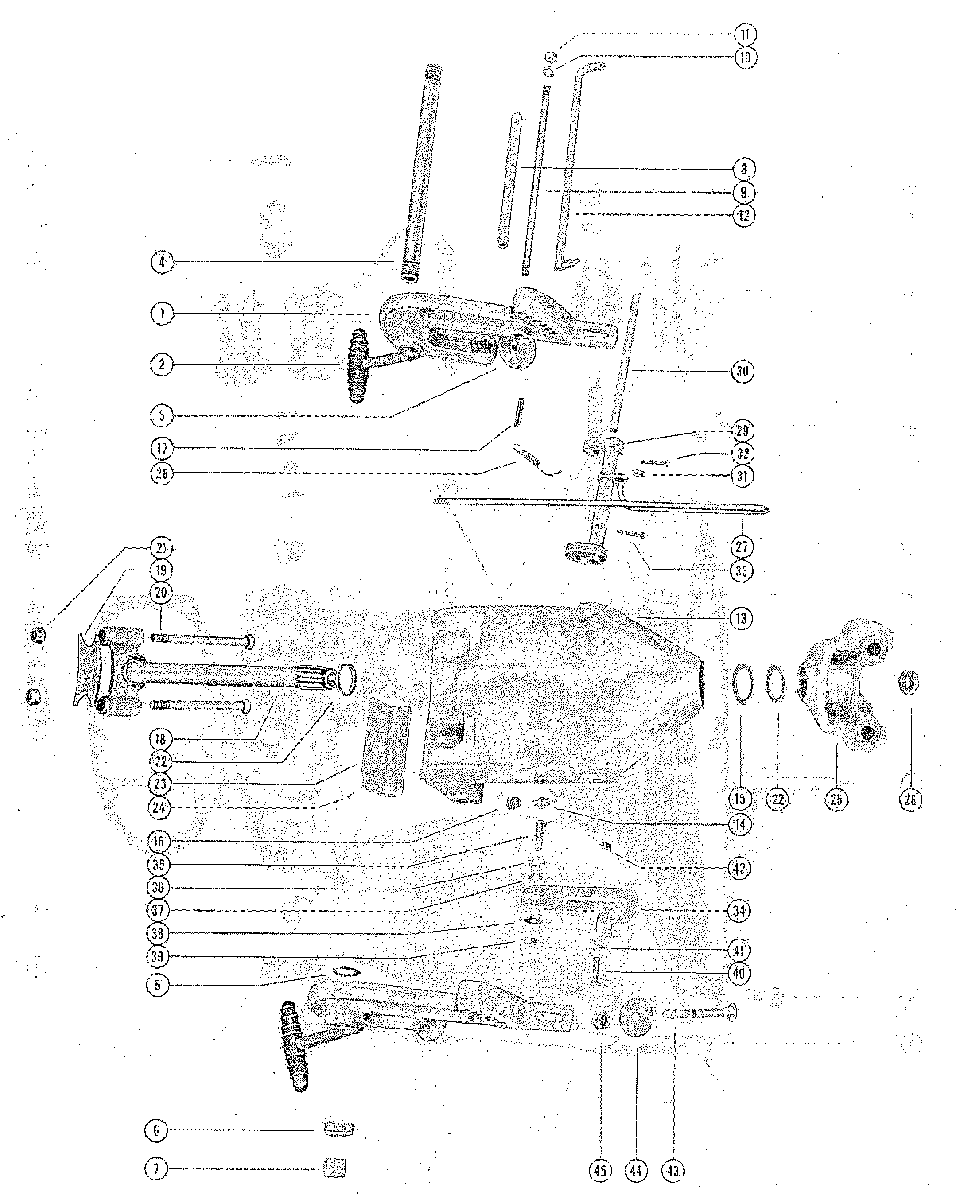

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 600 (6 CYL.) 1303411 THRU 1542744

  • №
    Артикул
    Название
  • 1
    1440-1464A1 CLAMP BRACKET ASSEMBLY
    CLAMP BRACKET ASSEMBLY
  • 2
    28403A3 THUMBS SCREW ASSEMBLY
    THUMBS SCREW ASSEMBLY
  • 3
    12-28404 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 4
    28122 TUBE, TILT-CLAMP BRACKET TO SWIVEL BRACKET
    TUBE, TILT-CLAMP BRACKET TO SWIVEL BRACKET
  • 5
    15-25600 SHIM, CLAMP BRACKET TILT TUBE (.010 - .020)
    SHIM, CLAMP BRACKET TILT TUBE (.010 - .020)
  • 6
    11-8M2014641 NUT, TILT TUBE FASTENING
    NUT, TILT TUBE FASTENING
  • 7
    25606 CAP, PLASTIC - TILT TUBE
    CAP, PLASTIC - TILT TUBE
  • 8
    23-59624 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 9
    16-59625 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 10
    13-26993 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
  • 11
    11-22053 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 12
    17-8M0026068 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 13
    1442-1401A1 SWIVEL BRACKET ASSEMBLY
    SWIVEL BRACKET ASSEMBLY
  • 13
    1441-1533A1 SWIVEL BRACKET ASSEMBLY
    SWIVEL BRACKET ASSEMBLY
  • 14
    22-69059 FITTING, GREASE
    FITTING, GREASE
  • 15
    26-32911 OIL SEAL
    OIL SEAL
  • 16
    19-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTING
    LUBRICAP, SWIVEL BRACKET GREASE FITTING
  • 17
    17-25598 PIN, REVERSE LOCK SPRING ATTACHING
    PIN, REVERSE LOCK SPRING ATTACHING
  • 18
    17-28211A1 SWIVEL PIN AND TOP YOKE ASSEMBLY
    SWIVEL PIN AND TOP YOKE ASSEMBLY
  • 18
    17-28254A2 SWIVEL PIN AND TOP YOKE ASSEMBLY
    SWIVEL PIN AND TOP YOKE ASSEMBLY
  • 19
    28203 BUMPER, TOP YOKE
    BUMPER, TOP YOKE
  • 20
    10-28255 BOLT, TOP YOKE TO UPPER MOUNT
    BOLT, TOP YOKE TO UPPER MOUNT
  • 21
    11-34933 NUT, TOP YOKE BOLT FASTENING
    NUT, TOP YOKE BOLT FASTENING
  • 22
    12-25176 WASHER, SWIVEL PIN (TOP WASHER OPTIONAL)
    WASHER, SWIVEL PIN (TOP WASHER OPTIONAL)
  • 23
    38-29536 SERIAL PLATE
    SERIAL PLATE
  • 24
    10-25612 SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
    SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
  • 25
    30197 YOKE, BOTTOM
    YOKE, BOTTOM
  • 26
    11-71956 NUT, SWIVEL PIN RETAINING
    NUT, SWIVEL PIN RETAINING
  • 27
    29484 ROD, PUSH - REVERSE LOCK
    ROD, PUSH - REVERSE LOCK
  • 27
    29485 ROD, PUSH - REVERSE LOCK
    ROD, PUSH - REVERSE LOCK
  • 28
    24-26625 SPRING, REVERSE LOCK TENSION
    SPRING, REVERSE LOCK TENSION
  • 29
    26903A4 REVERSE LOCK ASSEMBLY
    REVERSE LOCK ASSEMBLY
  • 30
    56349 SHAFT, REVERSE LOCK PIVOT
    SHAFT, REVERSE LOCK PIVOT
  • 31
    12-20546 WASHER, PUSH ROD
    WASHER, PUSH ROD
  • 32
    18-25191 COTTER PIN, PUSH ROD TO REVERSE LOCK
    COTTER PIN, PUSH ROD TO REVERSE LOCK
  • 33
    18-45882 COTTER PIN, REVERSE LOCK TO SHAFT
    COTTER PIN, REVERSE LOCK TO SHAFT
  • --
    29057 LEVER, TILT STOP (STARBOARD SIDE)
    LEVER, TILT STOP (STARBOARD SIDE)
  • 34
    29056 LEVER, TILT STOP (PORT SIDE)
    LEVER, TILT STOP (PORT SIDE)
  • 35
    10-27791 SCREW, TILT STOP LEVER ANCHOR
    SCREW, TILT STOP LEVER ANCHOR
  • 36
    23-29055 SPACER, TILT STOP LEVER
    SPACER, TILT STOP LEVER
  • 37
    13-34632 WASHER, WAVE - LEVER ANCHOR SCREW
    WASHER, WAVE - LEVER ANCHOR SCREW
  • 38
    15-20473 SHIM, LEVER ANCHOR SCREW (.010)
    SHIM, LEVER ANCHOR SCREW (.010)
  • 39
    11-20184 NUT, LEVER ANCHOR SCREW
    NUT, LEVER ANCHOR SCREW
  • 40
    10-27791 SCREW, TILT STOP LEVER RETAINING
    SCREW, TILT STOP LEVER RETAINING
  • 41
    13-20846 WASHER, WAVE - RETAINING SCREW
    WASHER, WAVE - RETAINING SCREW
  • 42
    11-20184 NUT, LEVER RETAINING SCREW
    NUT, LEVER RETAINING SCREW
  • 43
    10-68298 BOLT, CLAMP BRACKET TO BOAAT TRANSOM
    BOLT, CLAMP BRACKET TO BOAAT TRANSOM
  • 44
    12-46765 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 45
    11-82670912 NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
