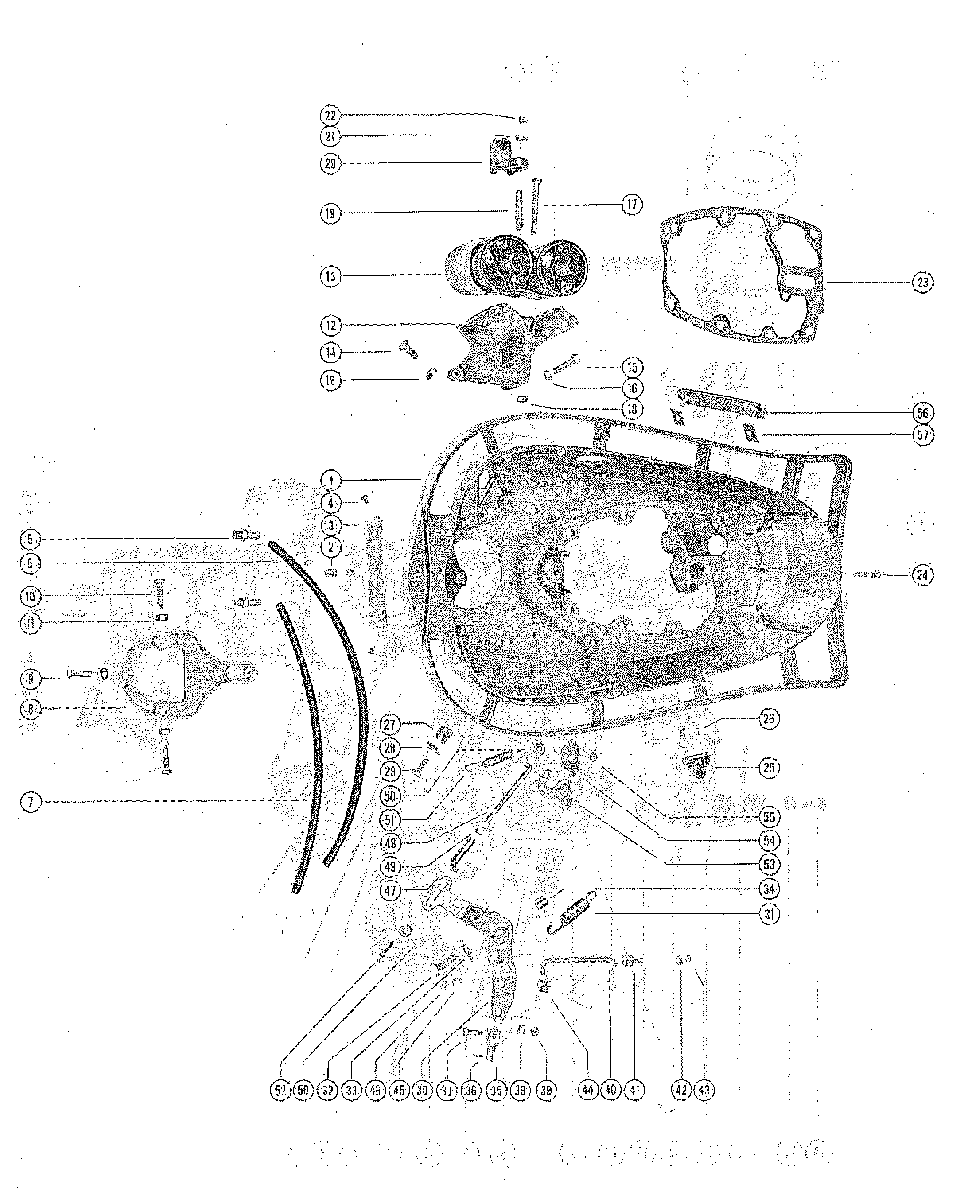

BOTTOM COWL ASSEMBLY для Mercury - 600 (6 CYL.) 1303411 THRU 1542744
-
№АртикулНазвание
-
1167-1632A2 BOTTOM COWL ASSEMBLYBOTTOM COWL ASSEMBLY
-
221041 INSET, TAP-LOCKINSET, TAP-LOCK
-
323760 BAFFLE, BOTTOM COWLBAFFLE, BOTTOM COWL
-
410-21106 SCREW, BAFFLE TO BOTTOM COWLSCREW, BAFFLE TO BOTTOM COWL
-
522-291112 CONNECTOR, DISTRIBUTOR VENT TUBECONNECTOR, DISTRIBUTOR VENT TUBE
-
632-8M0108355 TUBE, VENT - DISTRIBUTOR (16")TUBE, VENT - DISTRIBUTOR (16")
-
732-8M0108355 TUBE, VENT - DISTRIBUTOR (13")TUBE, VENT - DISTRIBUTOR (13")
-
827971 BRACKET, RECTIFER MOUNTINGBRACKET, RECTIFER MOUNTING
-
910-22956 SCREW, BRACKET TO BOTTOM COWL (7/8")SCREW, BRACKET TO BOTTOM COWL (7/8")
-
1010-21091 SCREW, BRACKET TO BOTTOM COWL (1 1/8")SCREW, BRACKET TO BOTTOM COWL (1 1/8")
-
1111-20184 NUT, RECTIFIER BRACKET MOUNTING SCREWNUT, RECTIFIER BRACKET MOUNTING SCREW
-
1226514 BRACKET, COIL FASTENINGBRACKET, COIL FASTENING
-
1326512 BAND, COIL BRACKETBAND, COIL BRACKET
-
1410-69028 SCREW, OIL BRACKET TO BOTTOM COWL (3/4")SCREW, OIL BRACKET TO BOTTOM COWL (3/4")
-
1510-56500 SCREW, COIL BRACKET TO BOTTOM COWL (1 1/4")SCREW, COIL BRACKET TO BOTTOM COWL (1 1/4")
-
1611-20184 NUT, COIL BRACKET SCREWNUT, COIL BRACKET SCREW
-
1710-26889 SCREW, COIL BAND TO BRACKETSCREW, COIL BAND TO BRACKET
-
1811-20184 NUT, COIL BAND SCREWNUT, COIL BAND SCREW
-
1916-20077 STUD, COIL BRACKET TO SUPPORTSTUD, COIL BRACKET TO SUPPORT
-
2026552 SUPPORT, EXTERNAL WIRING HARNESSSUPPORT, EXTERNAL WIRING HARNESS
-
2112-20084 WASHER, COIL BRACKET STUDWASHER, COIL BRACKET STUD
-
2211-862902 NUT, COIL BRACKET STUDNUT, COIL BRACKET STUD
-
2327-26197 GASKET, POWERHEAD TO BOTTOM COWLGASKET, POWERHEAD TO BOTTOM COWL
-
2410-21504 SCREW, BOTTOM COWL TO DRIVE SHAFT HOUSINGSCREW, BOTTOM COWL TO DRIVE SHAFT HOUSING
-
2520557 BRACKET, CABLE END ANCHORBRACKET, CABLE END ANCHOR
-
2610-29200 SCREW, ANCHOR BRACKET TO BOTTOM COWLSCREW, ANCHOR BRACKET TO BOTTOM COWL
-
2721968 STOP BLOCK, THROTTLE ADJUSTINGSTOP BLOCK, THROTTLE ADJUSTING
-
2812-21967 WASHER, STOP BLCK SCREWWASHER, STOP BLCK SCREW
-
2910-28636 SCREW, STOP BLOCK HOLDINGSCREW, STOP BLOCK HOLDING
-
3029393 LEVER, CONTROLLEVER, CONTROL
-
3124-29109 SPRING, TENSION - CONTROL LEVER TO VERTICAL SHAFTSPRING, TENSION - CONTROL LEVER TO VERTICAL SHAFT
-
3210-37612 SCREW, CONTROL LEVER TO BOTTOM COWLSCREW, CONTROL LEVER TO BOTTOM COWL
-
3312-8M0042641 WASHER, CONTROL LEVER SCREWWASHER, CONTROL LEVER SCREW
-
3423-29529 BUSHING, STEEL CONTROL LEVERBUSHING, STEEL CONTROL LEVER
-
3517-30978A1 PIN ASSEMBLY, CLEVIS YOKEPIN ASSEMBLY, CLEVIS YOKE
-
3617-239281 ROLL PIN, CLEVIS YOKE PINROLL PIN, CLEVIS YOKE PIN
-
3710-20584 SCREW, CLEVIS PIN TO CONTROL LEVERSCREW, CLEVIS PIN TO CONTROL LEVER
-
3813-29402 WASHER, WAVE - CLEVIS PIN SCREWWASHER, WAVE - CLEVIS PIN SCREW
-
3911-826709106 NUT, CLEVIS PIN SCREWNUT, CLEVIS PIN SCREW
-
4026591 LINK, CONTROL LEVER TO VERTICAL LEVERLINK, CONTROL LEVER TO VERTICAL LEVER
-
4126590 SWIVEL, VERTICAL LEVERSWIVEL, VERTICAL LEVER
-
4213-21067 WASHER, WAVE - VERTICAL LEVER SWIVELWASHER, WAVE - VERTICAL LEVER SWIVEL
-
4311-20110 NUT, SWIVEL TO VERTICAL LEVERNUT, SWIVEL TO VERTICAL LEVER
-
4427948 SWIVEL, CONTROL LEVERSWIVEL, CONTROL LEVER
-
4512-29245 WASHER, CONTROL LEVER SWIVELWASHER, CONTROL LEVER SWIVEL
-
4611-8267089 NUT, SWIVEL TO CONTROL LEVERNUT, SWIVEL TO CONTROL LEVER
-
4726589A1 LINK ROD ASSEMBLY, CONTROL LEVER ENDLINK ROD ASSEMBLY, CONTROL LEVER END
-
4826588 ROD, LINK - DRIVE CAMROD, LINK - DRIVE CAM
-
4911-25168 NUT, LINK ROD ADJUSTINGNUT, LINK ROD ADJUSTING
-
5012-20533 WASHER, LINK ROD ENDWASHER, LINK ROD END
-
5124-24826 SPRING, TENSION - LINK ROD TO BOTTOM COWLSPRING, TENSION - LINK ROD TO BOTTOM COWL
-
5218-210711 COTTER PIN, LINK ROD TO CONTROL LEVERCOTTER PIN, LINK ROD TO CONTROL LEVER
-
5329481 CAM, DRIVE - TILTLOCKCAM, DRIVE - TILTLOCK
-
5429482 CAM, TOP - TILTLOCKCAM, TOP - TILTLOCK
-
5511-862902 NUT, CAM FASTENING - PUSH RODNUT, CAM FASTENING - PUSH ROD
-
5638-28150 PLATE, NAME - BOTTOM COWLPLATE, NAME - BOTTOM COWL
-
5753-25539 FASTENER, NAME PLATE TO BOTTOM COWLFASTENER, NAME PLATE TO BOTTOM COWL
