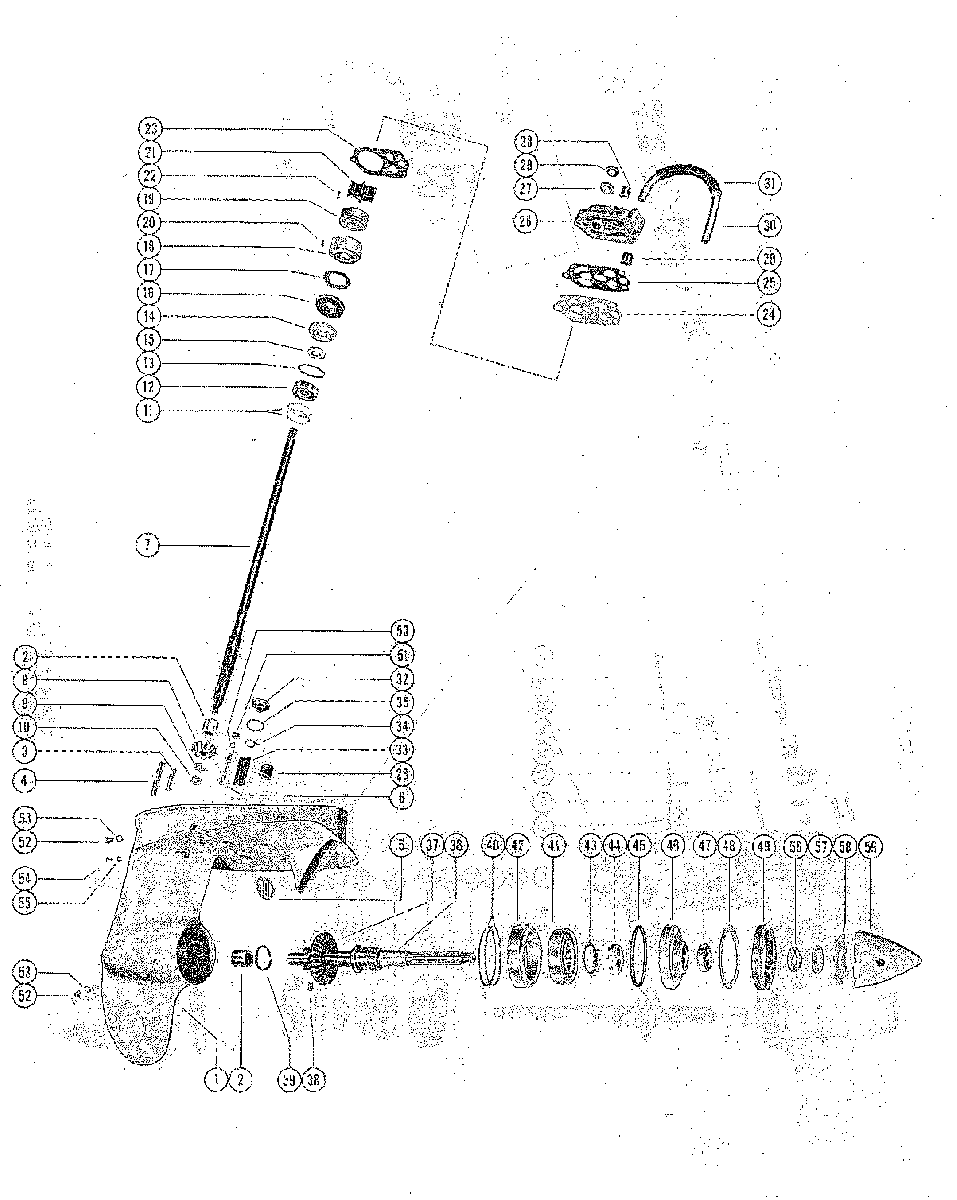

GEAR HOUSING ASSEMBLY, COMPLETE (COUNTER ROTATION) для Mercury - 600 (6 CYL.) 1303411 THRU 1542744

  • №
    Артикул
    Название
  • -
    1613-1587A2 GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD SHAFT)
    GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD SHAFT)
  • -
    1613-1587A3 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
  • 1
    1613-1587A1 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    31-62091T BEARING, ROLLING- PROPELLER AND DRIVE SHAFT
    BEARING, ROLLING- PROPELLER AND DRIVE SHAFT
  • 3
    16-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING
  • 4
    16-57935 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING
  • 5
    35-29073 SCREEN, WATER INTAKE
    SCREEN, WATER INTAKE
  • 6
    16-28771 STUD, WATER PUMP COVER FASTENING
    STUD, WATER PUMP COVER FASTENING
  • 7
    45-26196 DRIVE SHAFT (STANDARD)
    DRIVE SHAFT (STANDARD)
  • 7
    45-27866 DRIVE SHAFT (LONG)
    DRIVE SHAFT (LONG)
  • 8
    43-27889 GEAR, PINION
    GEAR, PINION
  • 9
    12-22025 WASHER, PINION GEAR TO RETAINING NUT
    WASHER, PINION GEAR TO RETAINING NUT
  • 10
    11-82671317 NUT, PINION GEAR RETAINING
    NUT, PINION GEAR RETAINING
  • 11
    15-20929A1 SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING
    SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING
  • 12
    30-72961 BEARING, BALL - DRIVE SHAFT
    BEARING, BALL - DRIVE SHAFT
  • 13
    25-26722 "O"RING, DRIVE SHAFT CARRIER
    "O"RING, DRIVE SHAFT CARRIER
  • 14
    26191A1 OIL SEAL CARRIER ASSEMBLY, DRIVE SHAFT
    OIL SEAL CARRIER ASSEMBLY, DRIVE SHAFT
  • 15
    26-90562 OIL SEAL, CARRIER
    OIL SEAL, CARRIER
  • 16
    26192 COVER, CARRIER RETAINER
    COVER, CARRIER RETAINER
  • 17
    13-26494 WASHER, WAVE - RETAINER COVER TO CARRIER
    WASHER, WAVE - RETAINER COVER TO CARRIER
  • 18
    46-26188A2 WATERPUMP CARTRIDGE ASSEMBLY
    WATERPUMP CARTRIDGE ASSEMBLY
  • 19
    29104 INSERT, WATER PUMP CARTRIDGE
    INSERT, WATER PUMP CARTRIDGE
  • 20
    28-28657 KEY, CARTRIDGE LOCATING
    KEY, CARTRIDGE LOCATING
  • 21
    47-30041T IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 22
    28-8M0032837 PIN, IMPELLER DRIVE
    PIN, IMPELLER DRIVE
  • 23
    27-26187 GASKET, LOWER - WATER PUMP COVER
    GASKET, LOWER - WATER PUMP COVER
  • 24
    26185 PLATE, FACE - WATER PUMP COVER
    PLATE, FACE - WATER PUMP COVER
  • 25
    27-26186 GASKET, UPPER - WATER PUMP COVER
    GASKET, UPPER - WATER PUMP COVER
  • 26
    26219A1 WATER PUMP COVER ASSEMBLY
    WATER PUMP COVER ASSEMBLY
  • 27
    26-23517 OIL SEAL
    OIL SEAL
  • 28
    26-26207 SEAL, RUBBER - WATER INLET TUBE
    SEAL, RUBBER - WATER INLET TUBE
  • 28
    26-26207 SEAL, RUBBER - WATER INLET TUBE TO GEAR HOUSING
    SEAL, RUBBER - WATER INLET TUBE TO GEAR HOUSING
  • 29
    25-20273 RING, RUBBER - CENTRIFUGAL SLINGER
    RING, RUBBER - CENTRIFUGAL SLINGER
  • 30
    32-29273 TUBE, WATER INTAKE - LOWER
    TUBE, WATER INTAKE - LOWER
  • 31
    32-26208 SLEEVE, WATER INTAKE TUBE
    SLEEVE, WATER INTAKE TUBE
  • 32
    22-26220A1 WATER VALVE AND ADAPTOR ASSEMBLY
    WATER VALVE AND ADAPTOR ASSEMBLY
  • 33
    21-26491 VALVE, WATER
    VALVE, WATER
  • 34
    54-26492 CLAMP, VALVE TO ADAPTOR
    CLAMP, VALVE TO ADAPTOR
  • 35
    15-21158A1 SHIM, VALVE ADAPTOR TO GEAR HOUSING
    SHIM, VALVE ADAPTOR TO GEAR HOUSING
  • 36
    44-28762A1 PROPELLER SHAFT ASSEMBLY
    PROPELLER SHAFT ASSEMBLY
  • 37
    43-28761 GEAR, PROPELLER
    GEAR, PROPELLER
  • 38
    17-26200 DOWEL PIN, PROPELLER GEAR TO SHAFT
    DOWEL PIN, PROPELLER GEAR TO SHAFT
  • 39
    53-28757 RING, SNAP - PROPELLER GEAR
    RING, SNAP - PROPELLER GEAR
  • 40
    15-26201A1 SHIM, ADAPTOR RING TO GEAR HOUSING
    SHIM, ADAPTOR RING TO GEAR HOUSING
  • 41
    30-28758 BEARING, BALL - PROPELLER SHAFT SLEEVE
    BEARING, BALL - PROPELLER SHAFT SLEEVE
  • 42
    28759 RING, ADAPTOR - BALL BEARING
    RING, ADAPTOR - BALL BEARING
  • 43
    14-28445 TAB WASHER, BEARING RETAINGING NUT
    TAB WASHER, BEARING RETAINGING NUT
  • 44
    11-28444 NUT, BALL BEARING RETAINGING
    NUT, BALL BEARING RETAINGING
  • 45
    25-26228 "O"RING, BEARING ADAPTOR
    "O"RING, BEARING ADAPTOR
  • 46
    28760A1 OIL SEAL CARRIER ASSEMBLY, PROPELLER SHAFT
    OIL SEAL CARRIER ASSEMBLY, PROPELLER SHAFT
  • 47
    26-26226 OIL SEAL, CARRIER
    OIL SEAL, CARRIER
  • 48
    12-26193 WASHER, GEAR HOUSING COVER
    WASHER, GEAR HOUSING COVER
  • 49
    26194 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 50
    13-26993 LOCKWASHER, WATER PUMP COVER STUDS
    LOCKWASHER, WATER PUMP COVER STUDS
  • 51
    11-28770 NUT, WATER PUMP COVER STUDS
    NUT, WATER PUMP COVER STUDS
  • 52
    10-79953Q04 SCREW, GREASE FILLER AND FLUSHING HOLE
    SCREW, GREASE FILLER AND FLUSHING HOLE
  • 53
    12-191833 WASHER, GREASE FILLER AND FLUSHING HOLE SCREW
    WASHER, GREASE FILLER AND FLUSHING HOLE SCREW
  • 54
    10-28653 SCREW, GEAR HOUSING VENT
    SCREW, GEAR HOUSING VENT
  • 55
    19643 WASHER, GEAR HOUSING VENT SCREW
    WASHER, GEAR HOUSING VENT SCREW
  • 56
    12-26334 WASHER, BACKING - PROPELLER SHAFT (1/8)
    WASHER, BACKING - PROPELLER SHAFT (1/8)
  • 57
    12-26331 WASHER, BACKING - PROPELLER SHAFT (1/32)
    WASHER, BACKING - PROPELLER SHAFT (1/32)
  • 58
    14-26333 TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 59
    11-26335 NUT, PROPELLER
    NUT, PROPELLER
