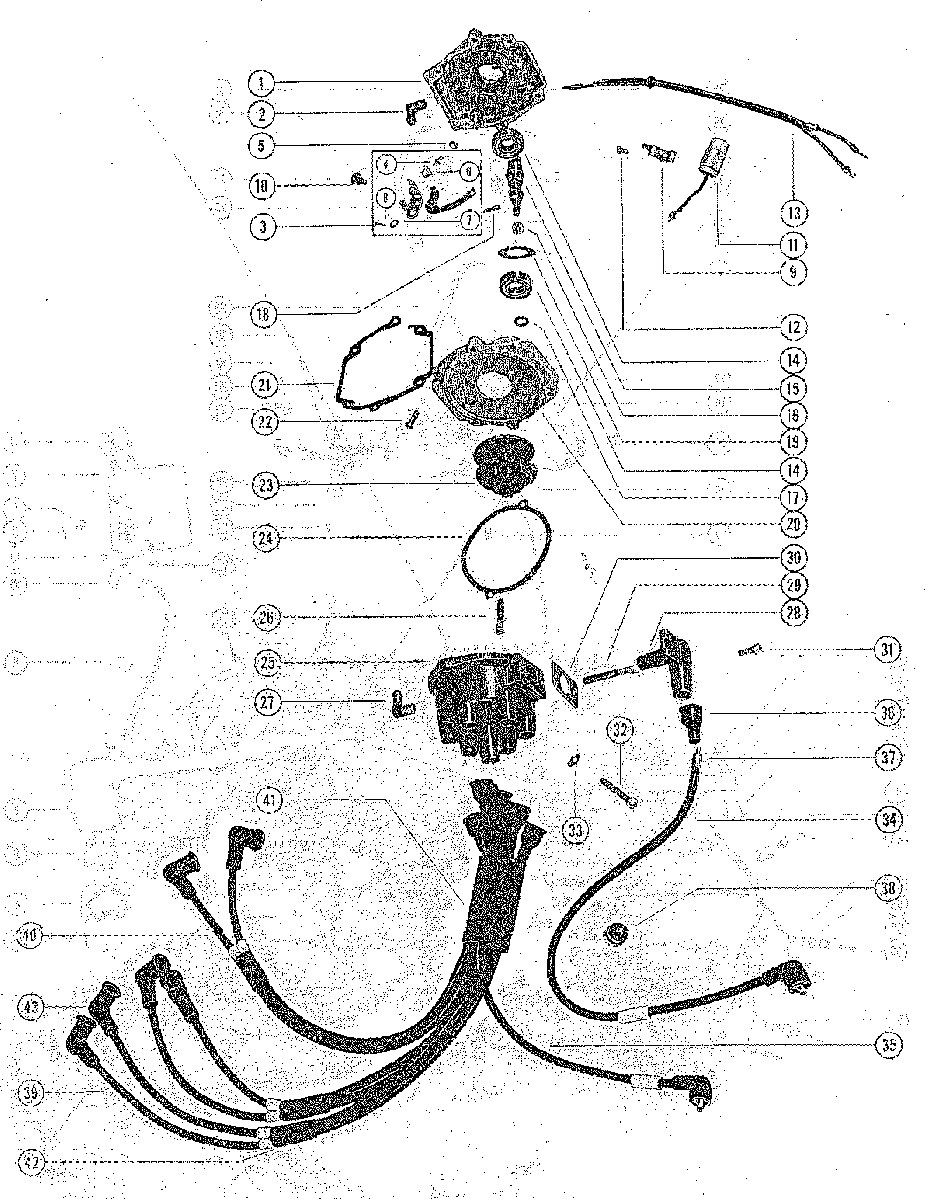

DISTRIBUTOR ASSEMBLY, COMPLETE для Mercury - 600 (6 CYL.) 1303411 THRU 1542744

  • №
    Артикул
    Название
  • -
    393-1282A13 DISTRIBUTOR ASSEMBLY, COMPLETE
    DISTRIBUTOR ASSEMBLY, COMPLETE
  • 1
    393-1282 HOUSING, PRIMARY
    HOUSING, PRIMARY
  • 2
    22-25885A1 ELBOW ASSEMBLY, VENT HOSE-PRIMARY HOUSING
    ELBOW ASSEMBLY, VENT HOSE-PRIMARY HOUSING
  • 3
    393-1504A11 BREAKER ASSEMBLY, COMPLETE
    BREAKER ASSEMBLY, COMPLETE
  • 4
    16-29230 STUD, PRIMARY LEAD AND TENSION SPRING FASTENING
    STUD, PRIMARY LEAD AND TENSION SPRING FASTENING
  • 5
    11-29236 NUT, PRIMARY LEAD FASTENING
    NUT, PRIMARY LEAD FASTENING
  • 6
    393-1586 GROMMET, PLASTIC-BREAKER ASSEMBLY
    GROMMET, PLASTIC-BREAKER ASSEMBLY
  • 7
    12-26439 WASHER, BREAKER PIVOT PIN
    WASHER, BREAKER PIVOT PIN
  • 8
    18-26953 COTTER PIN, BREAKER TO PIVOT PIN
    COTTER PIN, BREAKER TO PIVOT PIN
  • 9
    393-1287A2 CAM WICK & HOLDER ASSEMBLY
    CAM WICK & HOLDER ASSEMBLY
  • 10
    10-20597 SCREW, BREAKER HOLDER TO HOUSING
    SCREW, BREAKER HOLDER TO HOUSING
  • 11
    393-1283A1 CONDENSER
    CONDENSER
  • 12
    10-29434 SCREW, CONDENSER TO HOUSING
    SCREW, CONDENSER TO HOUSING
  • 13
    393-1656 WIRE, PRIMARTY GROUND
    WIRE, PRIMARTY GROUND
  • 14
    30-26379 BEARING, BALL-CAM SHAFT
    BEARING, BALL-CAM SHAFT
  • 15
    393-1541A2 SHAFT ASSEMBLY, DISTRIBUTOR CAM
    SHAFT ASSEMBLY, DISTRIBUTOR CAM
  • 16
    23-28933 BUSHING, NYLON-CAM SHAFT TO ROTOR (SEE NOTE BELOW)
    BUSHING, NYLON-CAM SHAFT TO ROTOR (SEE NOTE BELOW)
  • 17
    25-26543 "O"RING, CAM SHAFT
    "O"RING, CAM SHAFT
  • 18
    17-25319 PIN, ROLL-CAM SHAFT
    PIN, ROLL-CAM SHAFT
  • 19
    13-26917 WAVE WASHER, BALL BEARING TENSION
    WAVE WASHER, BALL BEARING TENSION
  • 20
    393-1278 ADAPTOR, HOUSING TO DISTRIBUTOR CAP
    ADAPTOR, HOUSING TO DISTRIBUTOR CAP
  • 21
    27-26412 GASKET, HOUSING TO ADAPTOR
    GASKET, HOUSING TO ADAPTOR
  • 22
    10-32651 SCREW, ADAPTOR TO HOUSING
    SCREW, ADAPTOR TO HOUSING
  • 23
    393-1280A1 ROTOR, DISTRIBUTOR
    ROTOR, DISTRIBUTOR
  • 24
    27-26446 GASKET, DISTRIBUTOR CAP TO ADPTOR
    GASKET, DISTRIBUTOR CAP TO ADPTOR
  • 25
    393-1927A9 DISTRIBUTOR CAP ASSEMBLY
    DISTRIBUTOR CAP ASSEMBLY
  • 26
    393-1293A1 BRUSH AND SPRING ASSEMBLY
    BRUSH AND SPRING ASSEMBLY
  • 27
    22-996642 ELBOW, VENT HOSE-DISTRIBUTOR CAP
    ELBOW, VENT HOSE-DISTRIBUTOR CAP
  • 28
    393-1277A3 SIDE INLET ASSEMBLY
    SIDE INLET ASSEMBLY
  • 29
    393-1292A1 BRUSH AND SPRING ASSEMBLY
    BRUSH AND SPRING ASSEMBLY
  • 30
    27-26447 GASKET, SIDE INLET TO DISTRIBUTOR CAP
    GASKET, SIDE INLET TO DISTRIBUTOR CAP
  • 31
    10-29167 SCREW, SIDE INLET TO DISTRIBUTOR CAP
    SCREW, SIDE INLET TO DISTRIBUTOR CAP
  • 32
    10-29158 SCREW, DISTRIBUTOR CAP TO ADAPTOR
    SCREW, DISTRIBUTOR CAP TO ADAPTOR
  • 33
    14-29157 ,TAB WASHER. DISTRIBUTOR CAP FASTENING SCREW
    ,TAB WASHER. DISTRIBUTOR CAP FASTENING SCREW
  • 34
    84-821945A37 ,HIGH TENSION CABLE ASSEMBLY (COIL #2)
    ,HIGH TENSION CABLE ASSEMBLY (COIL #2)
  • 35
    84-821945A27 HIGH TENSION CABLE ASSEMBLY (COIL#1)
    HIGH TENSION CABLE ASSEMBLY (COIL#1)
  • 36
    85-94589 ,,SLEEVE, TERMINAL AND COVER
    ,,SLEEVE, TERMINAL AND COVER
  • 37
    8M0084600 CONNECTOR, HIGH TENSION CABLE (CAP END)
    CONNECTOR, HIGH TENSION CABLE (CAP END)
  • 38
    25-26547 ,,GROMMET, HIGH TENSION CABLE
    ,,GROMMET, HIGH TENSION CABLE
  • 39
    84-813715A1 ,SPARK PLUG LEAD ASSEMBLY (#3,4 AND 5)
    ,SPARK PLUG LEAD ASSEMBLY (#3,4 AND 5)
  • 40
    84-813715A1 SPARK PLUG LEAD ASSEMBLY (#1,2 AND 6)
    SPARK PLUG LEAD ASSEMBLY (#1,2 AND 6)
  • 37
    8M0084600 CONNECTOR, SPARK PLUG LEAD
    CONNECTOR, SPARK PLUG LEAD
  • 36
    85-94589 SLEEVE, TERMINAL END COVER
    SLEEVE, TERMINAL END COVER
  • 41
    32-30574 SLEEVE, SPARK PLUG LEADS
    SLEEVE, SPARK PLUG LEADS
  • 42
    32-46768 SLEEVE, SPARK PLUG LEADS
    SLEEVE, SPARK PLUG LEADS
  • 43
    85-63709A1 PROTECTOR, SPARK PLUG
    PROTECTOR, SPARK PLUG
