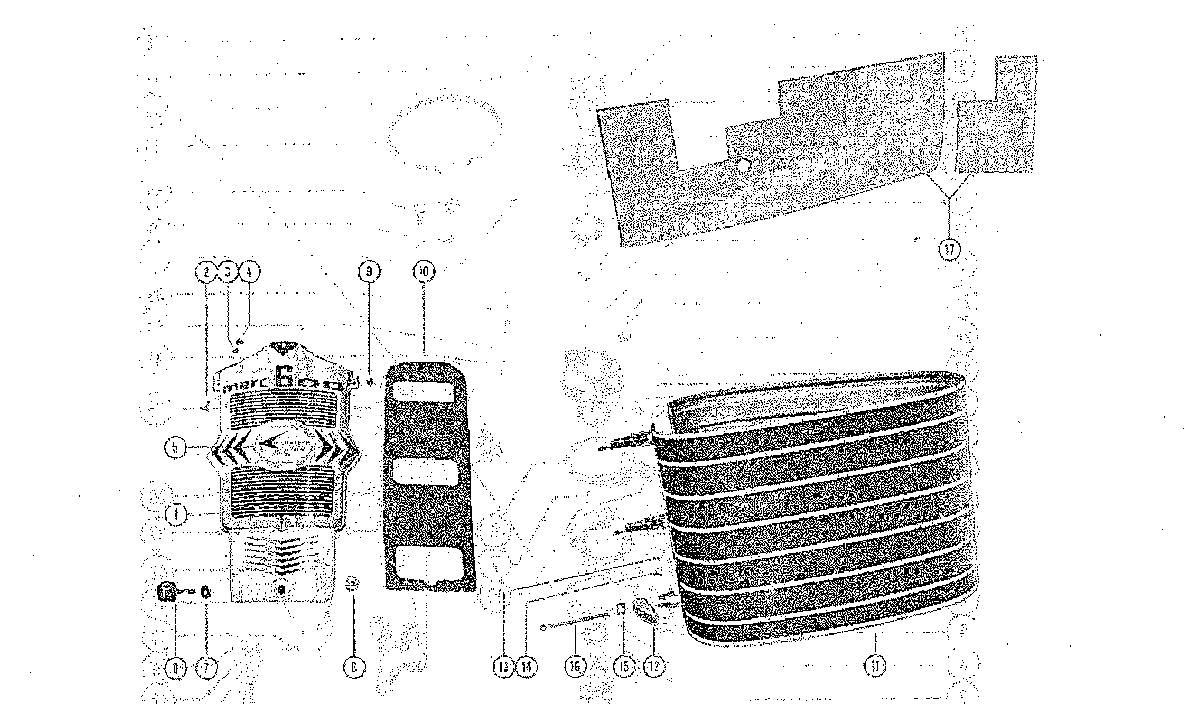

COWLING AND FRONT COVER для Mercury - 600 (6 CYL.) 1303411 THRU 1542744

  • №
    Артикул
    Название
  • 1
    184-2043A3 COWL FRONT COVER ASSEMBLY
    COWL FRONT COVER ASSEMBLY
  • -
    29560 BRACKET, COVER REINFORCEMENT
    BRACKET, COVER REINFORCEMENT
  • 2
    10-29226 SCREW, BRACKET TO FRONT COVER
    SCREW, BRACKET TO FRONT COVER
  • 3
    13-26995 LOCKWASHER, BRACKET FASTENING SCREW
    LOCKWASHER, BRACKET FASTENING SCREW
  • 4
    11-26419 NUT, BRACKET FASTENING SCREW
    NUT, BRACKET FASTENING SCREW
  • 5
    26183A5 EMBLEM, FRONT COVER (SEE NOTE BELOW)
    EMBLEM, FRONT COVER (SEE NOTE BELOW)
  • 6
    10-29552 SCREW, COVER FASTENING
    SCREW, COVER FASTENING
  • 7
    12-26162 WASHER, COVER FASTENING SCREW (RUBBER)
    WASHER, COVER FASTENING SCREW (RUBBER)
  • 8
    12-27897 WASHER, COVER FASTENING SCREW (NYLON)
    WASHER, COVER FASTENING SCREW (NYLON)
  • 9
    29345 BUMPER, RUBBER - FRONT COVER BRACKET
    BUMPER, RUBBER - FRONT COVER BRACKET
  • 10
    29344 BLANKET, SOUD ABSORBING
    BLANKET, SOUD ABSORBING
  • 11
    2120-2509A4 WRAP AROUND COWL ASSEMBLY
    WRAP AROUND COWL ASSEMBLY
  • 12
    21060 HANDLE, COWL LATCH
    HANDLE, COWL LATCH
  • 13
    53-21058 "E" RING, COWL LATCH HINGE PIN
    "E" RING, COWL LATCH HINGE PIN
  • 14
    17-21057 PIN, HINGE - COWL LATCH HANDLE
    PIN, HINGE - COWL LATCH HANDLE
  • 15
    25690 SWIVEL, COWL LATCH
    SWIVEL, COWL LATCH
  • 16
    25691 HOOK, COWL LATCH FASTENING
    HOOK, COWL LATCH FASTENING
  • 17
    26391 BLANKET, SOUND ABSORBING - WRAP AROUND COWL
    BLANKET, SOUND ABSORBING - WRAP AROUND COWL
  • --
    92-86166Q1 GLUE, ADHESIVE - BLANKET FASTENING
    GLUE, ADHESIVE - BLANKET FASTENING
