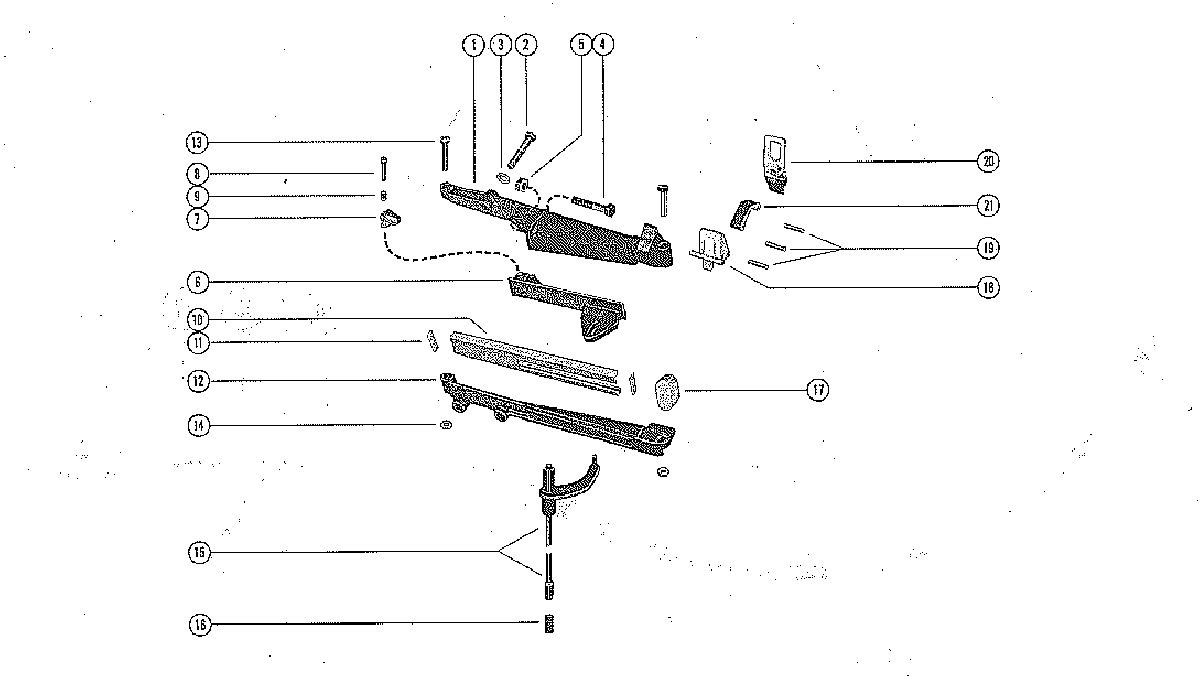

THROTTLE CONTROL LINKAGE для Mercury - 350 1960827 THRU 2874703
-
№АртикулНазвание
-
139447 BRACKET, SHIFT ANCHOR-UPPERBRACKET, SHIFT ANCHOR-UPPER
-
210-73279 SCREW, ANCHOR BRACKET TO EXHAUST COVER (1 7/8")SCREW, ANCHOR BRACKET TO EXHAUST COVER (1 7/8")
-
312-34437 WASHER, ANCHOR BRACKET SCREWWASHER, ANCHOR BRACKET SCREW
-
410-32293 SCREW, UPPER ANCHOR BRACKET TO CRANKCASE (1 3/4")SCREW, UPPER ANCHOR BRACKET TO CRANKCASE (1 3/4")
-
511-29250 NUT, UPPER ANCHOR BRACKET SCREWNUT, UPPER ANCHOR BRACKET SCREW
-
687874 SLIDE, SHIFT ACTUATINGSLIDE, SHIFT ACTUATING
-
756193 LATCH, SHIFT ACTUATING SLIDE (SHIFT CABLE)LATCH, SHIFT ACTUATING SLIDE (SHIFT CABLE)
-
810-39620 SCREW, LATCH TO SHIFT ACTUATING SLIDESCREW, LATCH TO SHIFT ACTUATING SLIDE
-
924-27087 SPRING, COMPRESSION-LATCH SCREWSPRING, COMPRESSION-LATCH SCREW
-
1039516 SLIDE, NYLON-ANCHOR BRACKET (SHIFT ACTUATING SLIDE)SLIDE, NYLON-ANCHOR BRACKET (SHIFT ACTUATING SLIDE)
-
1139515 END CAP, NYLON-ANCHOR BRACKET SLIDEEND CAP, NYLON-ANCHOR BRACKET SLIDE
-
1287876A1 BRACKET, SHIFT ANCHOR-LOWERBRACKET, SHIFT ANCHOR-LOWER
-
1310-20012 SCREW, UPPER ANCHOR BRACKET TO LOWER ANCHOR BRACKET (1 5/8")SCREW, UPPER ANCHOR BRACKET TO LOWER ANCHOR BRACKET (1 5/8")
-
1411-826709109 NUT, UPPER ANCHOR BRACKET SCREWNUT, UPPER ANCHOR BRACKET SCREW
-
1553886A4 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
SERIAL 00000000-02672249SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
SERIAL 00000000-02672249 -
1553886A2 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
SERIAL 02672250-09999999SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
SERIAL 02672250-09999999 -
1693960A1 COUPLING BODY ASSEMBLY
SERIAL 02672250-09999999COUPLING BODY ASSEMBLY
SERIAL 02672250-09999999 -
1534078A2 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
-
1553886A3 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
SERIAL 00000000-02673148SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
SERIAL 00000000-02673148 -
1553886A1 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
SERIAL 02673149-09999999SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
SERIAL 02673149-09999999 -
1693960A1 COUPLING BODY ASSEMBLY
SERIAL 02673149-09999999COUPLING BODY ASSEMBLY
SERIAL 02673149-09999999 -
1739519 CUP, RETAINER-ANCHOR BRACKET (SHIFT CABLE BARREL)CUP, RETAINER-ANCHOR BRACKET (SHIFT CABLE BARREL)
-
1887609A1 LEVER, NYLON-SHIFT CABLE LOCKING (UPPER ANCHOR BRACKET)LEVER, NYLON-SHIFT CABLE LOCKING (UPPER ANCHOR BRACKET)
-
1917-47175 PIN, LOCKING LEVER AND COVER FASTENINGPIN, LOCKING LEVER AND COVER FASTENING
-
2039667 COVER, NYLON-SHIFT CABLECOVER, NYLON-SHIFT CABLE
-
2139536 LINK, LOCKING LEVER TO COVERLINK, LOCKING LEVER TO COVER
