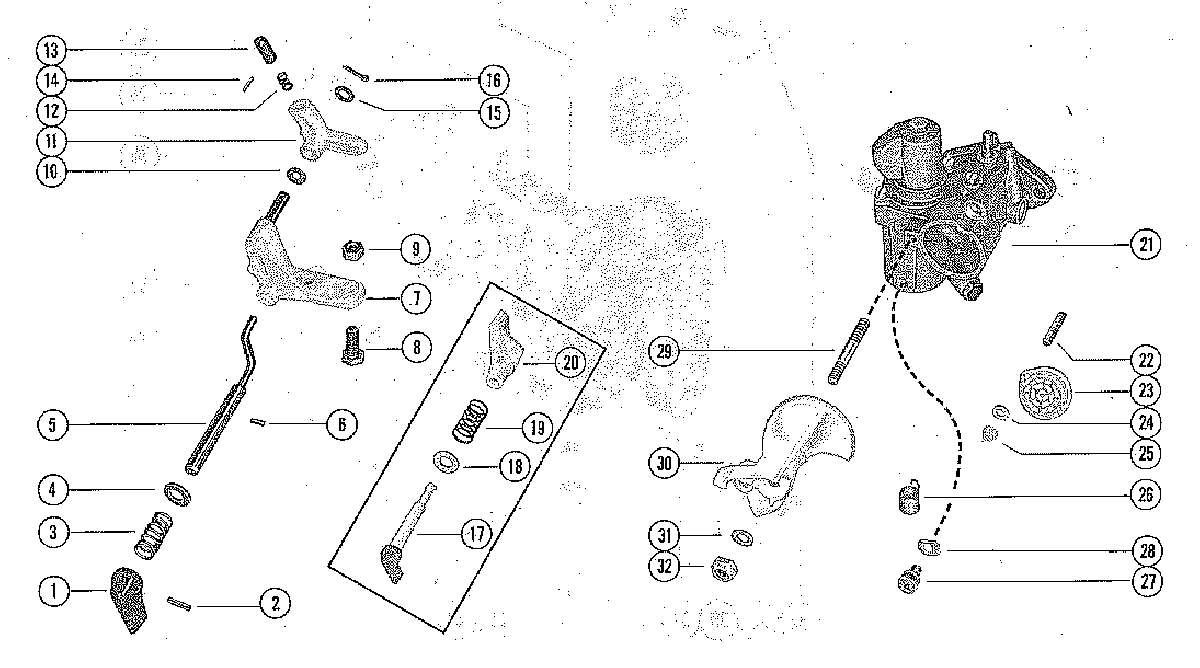

CARBURETOR CHOKE LINKAGE для Mercury - 350 1960827 THRU 2874703

  • №
    Артикул
    Название
  • 1
    30822 KNOB, CHOKE
    KNOB, CHOKE
  • 2
    17-22896 PIN, CHOKE KNOB TO CHOKE SHAFT
    PIN, CHOKE KNOB TO CHOKE SHAFT
  • 3
    24-37911 SPRING, COMPRESSION-CHOKE SHAFT
    SPRING, COMPRESSION-CHOKE SHAFT
  • 4
    12-34437 WASHER, CHOKE SHAFT
    WASHER, CHOKE SHAFT
  • 5
    39613 SHAFT, CHOKE
    SHAFT, CHOKE
  • 6
    17-26798 PIN, ROLL-CHOKE SHAFT
    PIN, ROLL-CHOKE SHAFT
  • 7
    39615 BRACKET, SUPPORT-CHOKE SHUTTER ARM (NYLON)
    BRACKET, SUPPORT-CHOKE SHUTTER ARM (NYLON)
  • 8
    10-22956 SCREW, SUPPORT BRACKET TO BOTTOM COWL (7/8")
    SCREW, SUPPORT BRACKET TO BOTTOM COWL (7/8")
  • 9
    11-20184 NUT, SUPPORT BRACKET SCREW
    NUT, SUPPORT BRACKET SCREW
  • 10
    13-29402 WASHER, WAVE-SUPPORT BRACKET
    WASHER, WAVE-SUPPORT BRACKET
  • 11
    39614A1 ARM ASSEMBLY, CHOKE SHUTTER (NYLON)
    ARM ASSEMBLY, CHOKE SHUTTER (NYLON)
  • 12
    24-35227 SPRING, COMPRESSION-CHOKE SHUTTER ARM
    SPRING, COMPRESSION-CHOKE SHUTTER ARM
  • 13
    17-45242 PIN, CHOKE SHUTTER ARM
    PIN, CHOKE SHUTTER ARM
  • 14
    17-239281 PIN, ROLL-PIN TO CHOKE SHUTTER ARM
    PIN, ROLL-PIN TO CHOKE SHUTTER ARM
  • 15
    12-20028 WASHER, CHOKE SHUTTER ARM
    WASHER, CHOKE SHUTTER ARM
  • 16
    18-210711 COTTER PIN, CHOKE SHUTTER ARM TO SUPPORT BRACKET
    COTTER PIN, CHOKE SHUTTER ARM TO SUPPORT BRACKET
  • 17
    47969 KNOB AND SHAFT, CHOKE
    KNOB AND SHAFT, CHOKE
  • 18
    12-30314 WASHER, CHOKE SHAFT
    WASHER, CHOKE SHAFT
  • 19
    24-47968 SPRING, COMPRESSION-CHOKE SHAFT
    SPRING, COMPRESSION-CHOKE SHAFT
  • 20
    47970 LEVER, CHOKE
    LEVER, CHOKE
  • 21
    1344-3664 CARBURETOR ASSEMBLY
    SERIAL 00000000-02029101
    CARBURETOR ASSEMBLY
    SERIAL 00000000-02029101
  • 21
    1344-3664 CARBURETOR ASSEMBLY
    SERIAL 02029102-09999999
    CARBURETOR ASSEMBLY
    SERIAL 02029102-09999999
  • 21
    1344-3664 CARBURETOR ASSEMBLY
    CARBURETOR ASSEMBLY
  • 21
    1344-3664 CARBURETOR ASSEMBLY
    CARBURETOR ASSEMBLY
  • 22
    16-69037 STUD, CARBURETOR SCREEN
    SERIAL AL0#2489-0Z999999
    STUD, CARBURETOR SCREEN
    SERIAL AL0#2489-0Z999999
  • 23
    35-53051 SCREEN, CARBURETOR
    SERIAL AL0#2489-0Z999999
    SCREEN, CARBURETOR
    SERIAL AL0#2489-0Z999999
  • 24
    12-30164 WASHER, CARBURETOR SCREEN STUD
    SERIAL AL0#2489-0Z999999
    WASHER, CARBURETOR SCREEN STUD
    SERIAL AL0#2489-0Z999999
  • 25
    11-20110 NUT, CARBURETOR SCREEN STUD
    SERIAL AL0#2489-0Z999999
    NUT, CARBURETOR SCREEN STUD
    SERIAL AL0#2489-0Z999999
  • 26
    24-28965 SPRING, TENSION-CHOKE SHUTTER
    SPRING, TENSION-CHOKE SHUTTER
  • 26
    24-47898 SPRING, TENSION-CHOKE SHUTTER
    SPRING, TENSION-CHOKE SHUTTER
  • 27
    10-28713 SCREW, RETAINER TO CARBURETOR (1/2")
    SCREW, RETAINER TO CARBURETOR (1/2")
  • 28
    27711 RETAINER, CHOKE SHUTTER SPRING
    RETAINER, CHOKE SHUTTER SPRING
  • 29
    16-30172 STUD, CHOKE SHUTTER PIVOT (CARBURETOR)
    STUD, CHOKE SHUTTER PIVOT (CARBURETOR)
  • 30
    47804 SHUTTER, CHOKE-CARBURETOR
    SHUTTER, CHOKE-CARBURETOR
  • 29
    16-69016 STUD, CHOKE SHUTTER PIVOT (CARBURETOR)
    STUD, CHOKE SHUTTER PIVOT (CARBURETOR)
  • 30
    47985 SHUTTER, CHOKE-CARBURETOR (NOT AS SHOWN)
    SHUTTER, CHOKE-CARBURETOR (NOT AS SHOWN)
  • 29
    16-53050 STUD, CHOKE SHUTTER PIVOT (CARBURETOR)
    STUD, CHOKE SHUTTER PIVOT (CARBURETOR)
  • 30
    52995 SHUTTER, CHOKE-CARBURETOR (NOT AS SHOWN)
    SHUTTER, CHOKE-CARBURETOR (NOT AS SHOWN)
  • 31
    12-30164 WASHER, CHOKE SHUTTER CARBURETOR STUD
    WASHER, CHOKE SHUTTER CARBURETOR STUD
  • 31
    12-47960 WASHER, CHOKE SHUTTER CARBURETOR STUD
    WASHER, CHOKE SHUTTER CARBURETOR STUD
  • 32
    11-20110 NUT, CHOKE SHUTTER TO CARBURETOR STUD
    NUT, CHOKE SHUTTER TO CARBURETOR STUD
