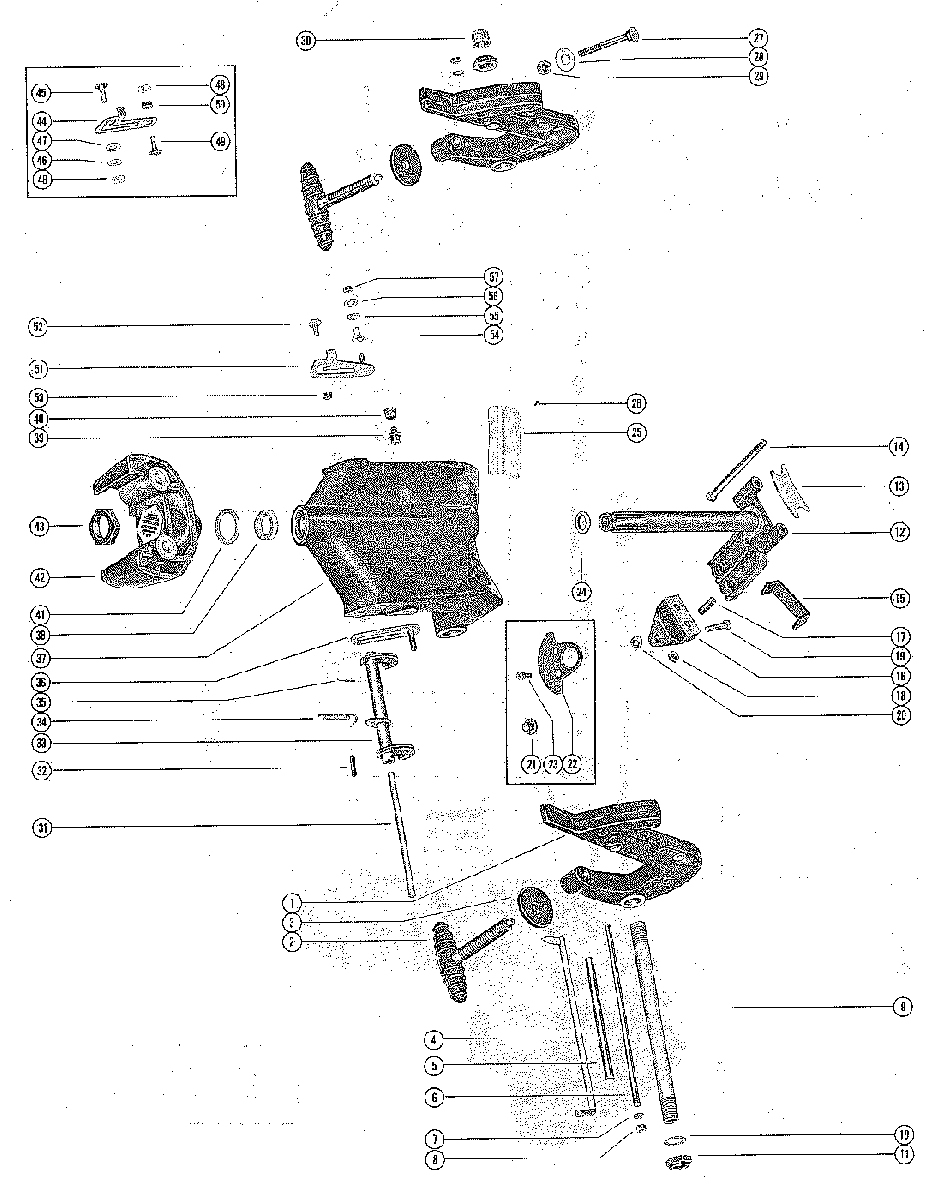

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 350 1960827 THRU 2874703

  • №
    Артикул
    Название
  • 1
    1427-1810A1 CLAMP BRACKET ASSEMBLY
    CLAMP BRACKET ASSEMBLY
  • 1
    1427-3263A1 CLAMP BRACKET ASSEMBLY
    CLAMP BRACKET ASSEMBLY
  • 2
    22477A4 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 3
    12-26227 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 4
    17-8M0026068 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 5
    23-59624 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 5
    23-53343 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 6
    16-59625 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • -
    12-24812 WASHER, STUD SPACER TO CLAMP BRACKET
    WASHER, STUD SPACER TO CLAMP BRACKET
  • 7
    13-26993 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
  • 8
    11-22053 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 8
    11-29250 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 9
    8M0041936 TUBE, TILT-CLAMP BRACKET TO SWIVEL BRACKET
    TUBE, TILT-CLAMP BRACKET TO SWIVEL BRACKET
  • 10
    12-52864 SHIM, CLAMP BRACKET TO SWIVEL BRACKET (.010)
    SHIM, CLAMP BRACKET TO SWIVEL BRACKET (.010)
  • 10
    12-52864 WASHER, CLAMP BRACKET TO SWIVEL BRACKET
    WASHER, CLAMP BRACKET TO SWIVEL BRACKET
  • 11
    11-858869 NUT, TILT TUBE
    NUT, TILT TUBE
  • 12
    74316A2 STEERING ARM AND SWIVEL PIN ASSEMBLY (SHORT SHAFT)
    STEERING ARM AND SWIVEL PIN ASSEMBLY (SHORT SHAFT)
  • 12
    74316A2 STEERING ARM AND SWIVEL PIN ASSEMBLY (SHORT SHAFT)
    STEERING ARM AND SWIVEL PIN ASSEMBLY (SHORT SHAFT)
  • 12
    74316A1 STEERING ARM AND SWIVEL PIN ASSEMBLY (LONG SHAFT)
    STEERING ARM AND SWIVEL PIN ASSEMBLY (LONG SHAFT)
  • 12
    74316A1 STEERING ARM AND SWIVEL PIN ASSEMBLY (LONG SHAFT)
    STEERING ARM AND SWIVEL PIN ASSEMBLY (LONG SHAFT)
  • 13
    30711 BUMPER, STEERING ARM
    BUMPER, STEERING ARM
  • 14
    10-33986 SCREW, UPPER MOUNT TO STEERING ARM
    SCREW, UPPER MOUNT TO STEERING ARM
  • 15
    62297 BUMPER, STEERING ARM
    BUMPER, STEERING ARM
  • 16
    76535T BRACKET, REMOTE STEERING
    BRACKET, REMOTE STEERING
  • 17
    16-39781 STUD, REMOTE STEERING BRACKET TO STEERING ARM
    STUD, REMOTE STEERING BRACKET TO STEERING ARM
  • 18
    11-8M0042636 NUT, REMOTE STEERING BRACKET STUD
    NUT, REMOTE STEERING BRACKET STUD
  • 19
    10-31830 SCREW, RIDE-GUIDE KIT TO STEERING ARM
    SCREW, RIDE-GUIDE KIT TO STEERING ARM
  • 20
    11-8M0042636 NUT, RIDE-GUIDE KIT SCREW
    NUT, RIDE-GUIDE KIT SCREW
  • 21
    23026 DISC, FRICTION-SWIVEL BRACKET
    DISC, FRICTION-SWIVEL BRACKET
  • 22
    33969 PLATE, FRICTION-CO-PILOT (SWIVEL BRACKET)
    PLATE, FRICTION-CO-PILOT (SWIVEL BRACKET)
  • 23
    10-69069 SCREW, FRICTION PLATE TO SWIVEL PIN
    SCREW, FRICTION PLATE TO SWIVEL PIN
  • 24
    12-52865 WASHER, SWIVEL PIN
    WASHER, SWIVEL PIN
  • 25
    38-56267 SERIAL PLATE
    SERIAL PLATE
  • 26
    10-25612 SCREW, DRIVE-SERIAL PLATE TO SWIVEL BRACKET
    SCREW, DRIVE-SERIAL PLATE TO SWIVEL BRACKET
  • 27
    10-26483 BOLT, CLAMP BRACKET TO BOAT TRANSOM
    BOLT, CLAMP BRACKET TO BOAT TRANSOM
  • 28
    12-67981 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 29
    11-26484 NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
  • 30
    53078 CAP, PLASTIC-TILT TUBE
    CAP, PLASTIC-TILT TUBE
  • 30
    53078 CAP, PLASTIC-TILT TUBE
    CAP, PLASTIC-TILT TUBE
  • 31
    56349 SHAFT, REVERSE LOCK TO SWIVEL BRACKET
    SHAFT, REVERSE LOCK TO SWIVEL BRACKET
  • 32
    17-25598 ROLL PIN, REVERSE LOCK SPRING ATTACHING
    ROLL PIN, REVERSE LOCK SPRING ATTACHING
  • 33
    26903A2 REVERSE LOCK ASSEMBLY
    REVERSE LOCK ASSEMBLY
  • 34
    24-29821 SPRING, REVERSE LOCK TENSION
    SPRING, REVERSE LOCK TENSION
  • 35
    18-45882 COTTER PIN, REVERSE LOCK TO SHAFT
    COTTER PIN, REVERSE LOCK TO SHAFT
  • 36
    20215 LEVER, TILT STOP-STARBOARD SIDE (NOT AS SHOWN)
    LEVER, TILT STOP-STARBOARD SIDE (NOT AS SHOWN)
  • 36
    47912A2 LEVER ASSEMBLY, TILT STOP-STARBOARD SIDE
    LEVER ASSEMBLY, TILT STOP-STARBOARD SIDE
  • 37
    1455-2693A3 SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
    SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
  • 37
    1455-3349A3 SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
    SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
  • 37
    1481-7656A1 SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
    SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
  • 37
    1462-2694A1 SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
    SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
  • 37
    1462-3350A1 SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
    SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
  • 37
    1480-7655A1 SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
    SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
  • 38
    26-32911 OIL SEAL, SWIVEL BRACKET
    OIL SEAL, SWIVEL BRACKET
  • 39
    22-69059 FITTING, GREASE-SWIVEL BRACKET
    FITTING, GREASE-SWIVEL BRACKET
  • 40
    19-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTING
    LUBRICAP, SWIVEL BRACKET GREASE FITTING
  • 40
    19-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTING
    LUBRICAP, SWIVEL BRACKET GREASE FITTING
  • 41
    12-25176 WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)
    WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)
  • 41
    12-26837 WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)
    WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)
  • 42
    77416T1 YOKE, BOTTOM
    YOKE, BOTTOM
  • 43
    11-71956 NUT, RETAINING-SWIVEL PIN
    NUT, RETAINING-SWIVEL PIN
  • 44
    26864 LEVER, TILT STOP-PORT SIDE
    LEVER, TILT STOP-PORT SIDE
  • 45
    10-29237 SCREW, RETAINING-TILT STOP LEVER
    SCREW, RETAINING-TILT STOP LEVER
  • 46
    15-37711 SHIM, RETAINING SCREW-PORT SIDE
    SHIM, RETAINING SCREW-PORT SIDE
  • 47
    13-36076 WASHER, WAVE-RETAINING SCREW-PORT SIDE
    WASHER, WAVE-RETAINING SCREW-PORT SIDE
  • 47
    13-20846 WASHER, WAVE-RETAINING SCREW-STARBOARD SIDE
    WASHER, WAVE-RETAINING SCREW-STARBOARD SIDE
  • 48
    11-24652 NUT, ANCHOR AND RETAINING SCREW
    NUT, ANCHOR AND RETAINING SCREW
  • 49
    10-20217 SCREW, ANCHOR-TILT STOP LEVER
    SCREW, ANCHOR-TILT STOP LEVER
  • 50
    23-20216 SPACER, TILT STOP LEVER
    SPACER, TILT STOP LEVER
  • 51
    47913A2 LEVER ASSEMBLY, TILT LOCK-PORT SIDE
    LEVER ASSEMBLY, TILT LOCK-PORT SIDE
  • 52
    10-69087 SCREW, TILT LOCK AND STOP LEVER TO SWIVEL BRACKET
    SCREW, TILT LOCK AND STOP LEVER TO SWIVEL BRACKET
  • 53
    11-29250 NUT, TILT LOCK AND STOP LEVER SCREW
    NUT, TILT LOCK AND STOP LEVER SCREW
  • 54
    23-47911 BUSHING, TILT LOCK AND STOP LEVER
    BUSHING, TILT LOCK AND STOP LEVER
  • 55
    13-34632 WASHER, WAVE-TILT LOCK AND STOP LEVER
    WASHER, WAVE-TILT LOCK AND STOP LEVER
  • 56
    12-26825 WASHER, TILT LOCK AND STOP LEVER
    WASHER, TILT LOCK AND STOP LEVER
  • 57
    11-29250 NUT, TILT LOCK AND STOP LEVER TO CLAMP BRACKET
    NUT, TILT LOCK AND STOP LEVER TO CLAMP BRACKET
  • 57
    11-29250 NUT, TILT LOCK AND STOP LEVER TO CLAMP BRACKET
    NUT, TILT LOCK AND STOP LEVER TO CLAMP BRACKET
