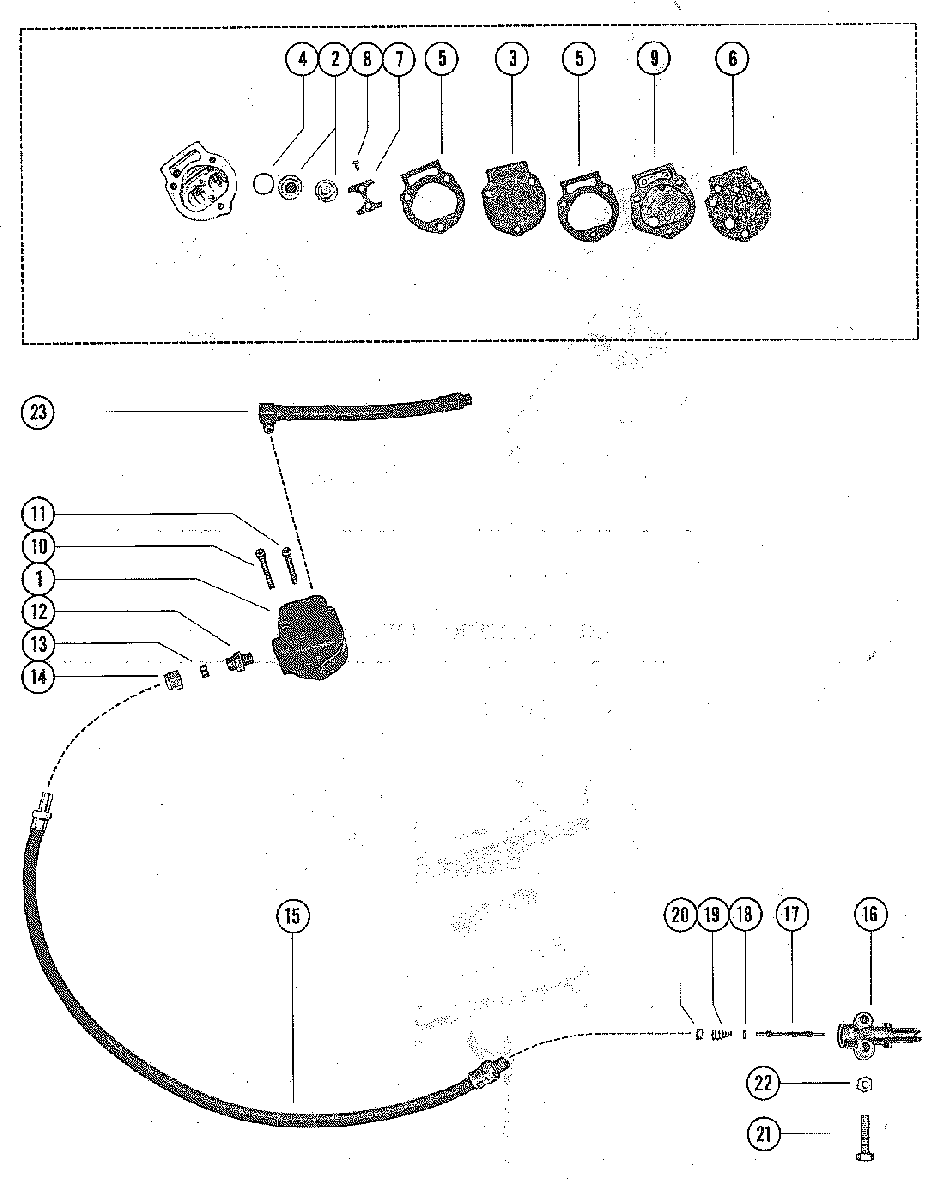

FUEL PUMP ASSEMBLY AND FUEL LINES для Mercury - 350 1960827 THRU 2874703

  • №
    Артикул
    Название
  • 1
    30269A2 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 2
    21-30430A1 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    23014A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 4
    90-8M0143356 GASKET, CHECK VALVE TO HOUSING
    GASKET, CHECK VALVE TO HOUSING
  • 5
    90-8M0143356 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 6
    90-8M0143356 GASKET, FUEL PUMP COVER
    GASKET, FUEL PUMP COVER
  • 7
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 8
    10-43725 SCREW, RETAINER TO HOUSING
    SCREW, RETAINER TO HOUSING
  • 9
    30275 COVER, FUEL PUMP
    COVER, FUEL PUMP
  • 10
    10-30274 SCREW, FUEL PUMP MOUNTING (1 3/4")
    SCREW, FUEL PUMP MOUNTING (1 3/4")
  • 11
    10-73013 SCREW, FUEL PUMP MOUNTING (1 1/2")
    SCREW, FUEL PUMP MOUNTING (1 1/2")
  • 12
    22-22949 CONNECTOR, PUMP INLET TO FUEL LINE
    CONNECTOR, PUMP INLET TO FUEL LINE
  • 13
    22-22946 SLEEVE, RUBBER-CONNECTOR
    SLEEVE, RUBBER-CONNECTOR
  • 14
    22-22948 NUT, CONNECTOR TO FUEL LINE
    NUT, CONNECTOR TO FUEL LINE
  • 15
    32-45182 FUEL LINE, FUEL PUMP TO ADAPTOR
    FUEL LINE, FUEL PUMP TO ADAPTOR
  • 16
    22833 ADAPTOR, CHECK UNIT (FUEL PUMP)
    ADAPTOR, CHECK UNIT (FUEL PUMP)
  • 17
    23069 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 18
    25-16524 "O" RING, ADAPTOR STEM
    "O" RING, ADAPTOR STEM
  • 19
    24-23067T SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 20
    30188 CUP WASHER, ADAPTOR
    CUP WASHER, ADAPTOR
  • 21
    10-56500 SCREW, ADAPTOR TO BOTTOM COWL
    SCREW, ADAPTOR TO BOTTOM COWL
  • 22
    11-20184 NUT, ADAPTOR SCREW
    NUT, ADAPTOR SCREW
  • 23
    32-34243 FUEL LINE, FUEL PUMP TO CARBURETOR (7 1/8")
    FUEL LINE, FUEL PUMP TO CARBURETOR (7 1/8")
