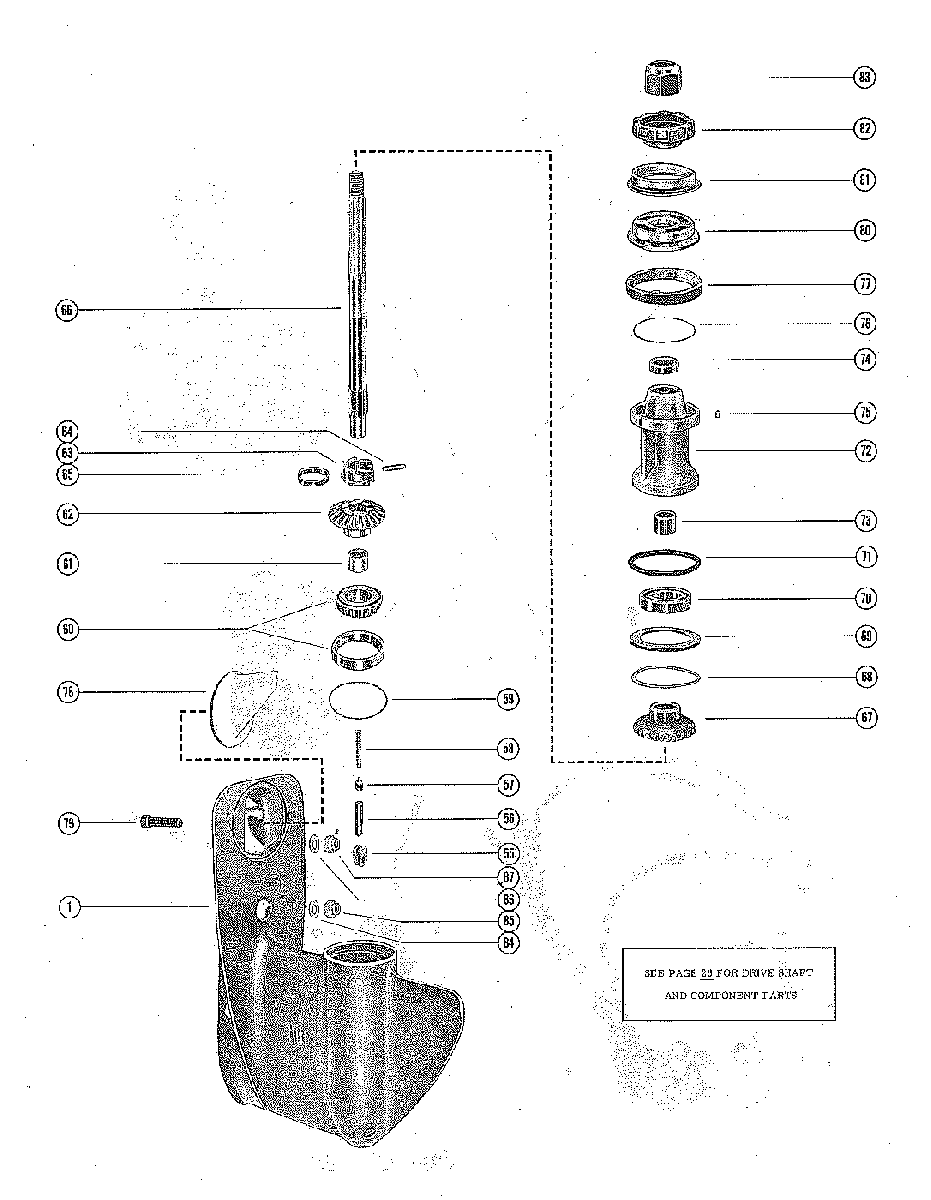

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 350 1960827 THRU 2874703

  • №
    Артикул
    Название
  • -
    1626-3586A4 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)-SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)-SEE NOTE BELOW
  • -
    1626-2470A15 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) -SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) -SEE NOTE BELOW
  • -
    1626-3586A5 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) -SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) -SEE NOTE BELOW
  • -
    1626-3586A4 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)-SEE NOTE BELOW
    PLASTIC WATER PUMP AND STRAIGHT GEARS
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)-SEE NOTE BELOW
    PLASTIC WATER PUMP AND STRAIGHT GEARS
  • -
    1626-3586A5 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) -SEE NOTE BELOW
    PLASTIC WATER PUMP AND STRAIGHT GEARS
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) -SEE NOTE BELOW
    PLASTIC WATER PUMP AND STRAIGHT GEARS
  • -
    1626-3586A4 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)-SEE NOTE BELOW
    PLASTIC WATER PUMP AND SPIRAL GEARS
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)-SEE NOTE BELOW
    PLASTIC WATER PUMP AND SPIRAL GEARS
  • -
    1626-3586A5 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) -SEE NOTE BELOW
    PLASTIC WATER PUMP AND SPIRAL GEARS
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) -SEE NOTE BELOW
    PLASTIC WATER PUMP AND SPIRAL GEARS
  • 1
    1626-2470A16 GEAR HOUSING ASSEMBLY-SEE PAGE 26 FOR PARTS BREAKDOWN
    GEAR HOUSING ASSEMBLY-SEE PAGE 26 FOR PARTS BREAKDOWN
  • 1
    1626-3483A1 GEAR HOUSING ASSEMBLY-SEE PAGE 26 FOR PARTS BREAKDOWN
    PLASTIC WATER PUMP AND STRAIGHT GEARS
    GEAR HOUSING ASSEMBLY-SEE PAGE 26 FOR PARTS BREAKDOWN
    PLASTIC WATER PUMP AND STRAIGHT GEARS
  • 1
    1626-3586A1 GEAR HOUSING ASSEMBLY-SEE PAGE 26 FOR PARTS BREAKDOWN
    PLASTIC WATER PUMP AND SPIRAL GEARS
    GEAR HOUSING ASSEMBLY-SEE PAGE 26 FOR PARTS BREAKDOWN
    PLASTIC WATER PUMP AND SPIRAL GEARS
  • 55
    760394 CAM, SHIFT
    CAM, SHIFT
  • 56
    38441 FOLLOWER, CAM
    FOLLOWER, CAM
  • 57
    20843 SLIDE, CROSS PIN
    SLIDE, CROSS PIN
  • 58
    24-39845 SPRING, COMPRESSION-CAM FOLLOWER
    SPRING, COMPRESSION-CAM FOLLOWER
  • 59
    15-31154A1 SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)-STRAIGHT
    SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)-STRAIGHT
  • 59
    15-38374A1 SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)-SPIRAL
    SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)-SPIRAL
  • 59
    15-38374A1 SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)-SPIRAL
    SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)-SPIRAL
  • 60
    31-31215A1 TAPERED ROLLER BEARING ASSEMBLY (STRAIGHT)
    TAPERED ROLLER BEARING ASSEMBLY (STRAIGHT)
  • 60
    31-38356A1 TAPERED ROLLER BEARING ASSEMBLY (SPIRAL)
    TAPERED ROLLER BEARING ASSEMBLY (SPIRAL)
  • 61
    31-20249 BEARING, ROLLER-FORWARD GEAR
    BEARING, ROLLER-FORWARD GEAR
  • 62
    43-39651A2 FORWARD GEAR ASSEMBLY (STRAIGHT)
    FORWARD GEAR ASSEMBLY (STRAIGHT)
  • 62
    43-46376A2 FORWARD GEAR ASSEMBLY (SPIRAL)
    FORWARD GEAR ASSEMBLY (SPIRAL)
  • 63
    52-92911T RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 64
    17-8M0020942 PIN, CROSS-RATCHET TO PROPELLER SHAFT
    PIN, CROSS-RATCHET TO PROPELLER SHAFT
  • 65
    24-38114 SPRING, RETAINING-CROSS PIN
    SPRING, RETAINING-CROSS PIN
  • 66
    44-38127 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 67
    43-39652 REVERSE GEAR ASSEMBLY (STRAIGHT)
    REVERSE GEAR ASSEMBLY (STRAIGHT)
  • 67
    43-46375 REVERSE GEAR ASSEMBLY (SPIRAL)
    REVERSE GEAR ASSEMBLY (SPIRAL)
  • 68
    15-20927A1 SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
    SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
  • 69
    12-32004 WASHER, THRUST-REVERSE GEAR
    WASHER, THRUST-REVERSE GEAR
  • 70
    30-20839T BEARING, BALL-REVERSE GEAR
    BEARING, BALL-REVERSE GEAR
  • 71
    25-31986 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 72
    53014T1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 72
    53014T1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 73
    31-20249 BEARING, ROLLER-BEARING CARRIER
    BEARING, ROLLER-BEARING CARRIER
  • 74
    26-90562 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 74
    26-23517 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 75
    28-30281 KEY, LOCATING-BEARING CARRIER
    KEY, LOCATING-BEARING CARRIER
  • 76
    12-31993 WASHER, GEAR HOUSING COVER
    WASHER, GEAR HOUSING COVER
  • 77
    11-87763 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 76
    14-53012 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 77
    11-87763 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 78
    97-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSING
    TRIM TAB ASSEMBLY, GEAR HOUSING
  • 79
    10-32470 SCREW, TRIM TAB TO GEAR HOUSING
    SCREW, TRIM TAB TO GEAR HOUSING
  • 80
    38859A1 THRUST HUB AND WASHER ASSEMBLY
    THRUST HUB AND WASHER ASSEMBLY
  • 81
    12-31992 WASHER, CUPPED-THRUST HUB
    WASHER, CUPPED-THRUST HUB
  • 82
    12-32007 WASHER, SPLINED-PROPELLER SHAFT
    WASHER, SPLINED-PROPELLER SHAFT
  • 83
    11-82671120 NUT, PROPELLER
    NUT, PROPELLER
  • 84
    12-45176 WASHER, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD (7/16")
    WASHER, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD (7/16")
  • 85
    11-34933 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD (7/16")
    NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD (7/16")
  • 86
    12-856774 WASHER, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD (3/8")
    WASHER, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD (3/8")
  • 87
    11-8M0042636 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD (3/8")
    NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD (3/8")
