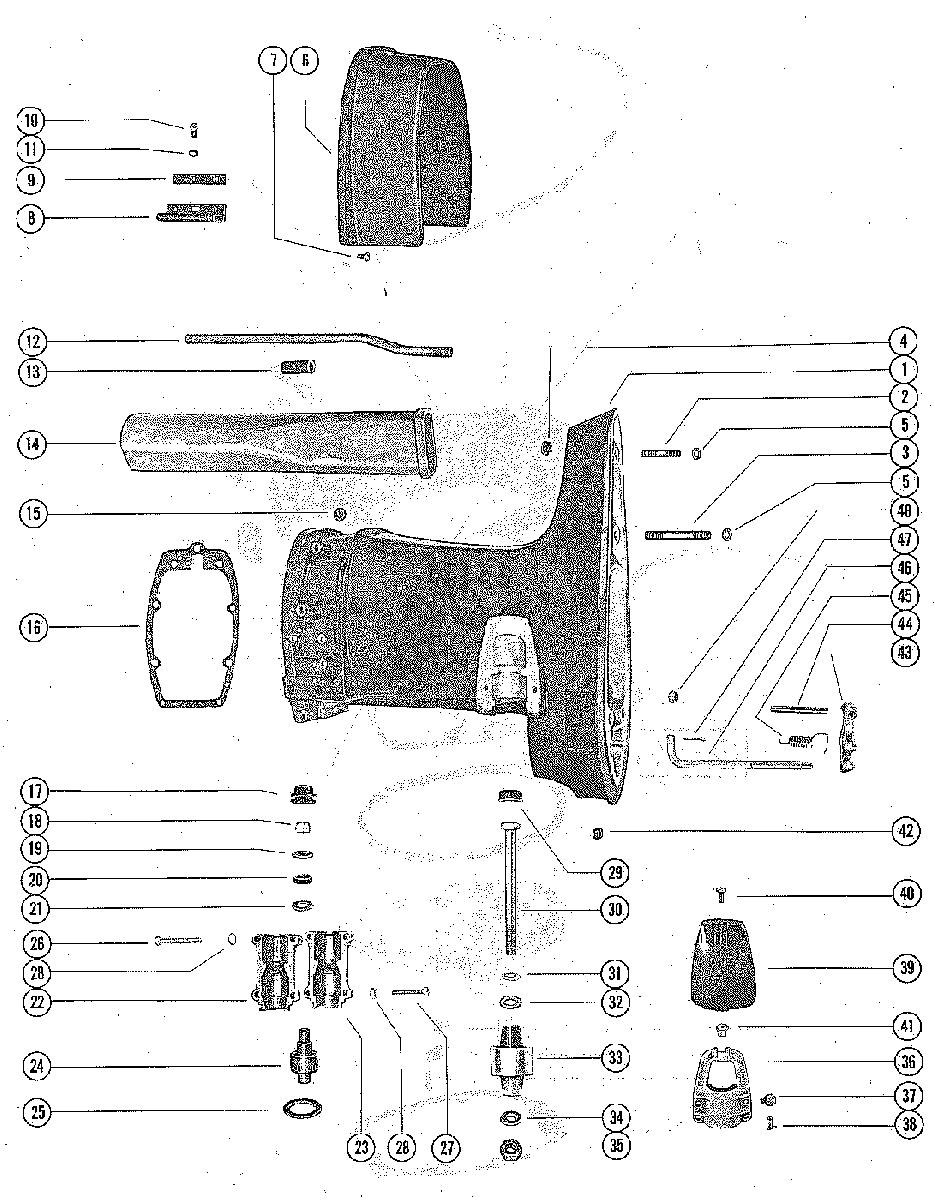

DRIVE SHAFT HOUSING для Mercury - 350 1960827 THRU 2874703
-
№АртикулНазвание
-
11554-2703A3 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
-
11554-2703A3 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
-
11553-2702A1 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
-
11564-2792A2 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
-
11564-2792A2 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
-
216-8M0022145 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")
-
316-57935 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")
-
419-47579 PLUG, PLASTIC-WATER PICK-UP HOLEPLUG, PLASTIC-WATER PICK-UP HOLE
-
419-32298 PLUG, PLASTIC-WATER PICK-UP HOLEPLUG, PLASTIC-WATER PICK-UP HOLE
-
512-45176 WASHER, DRIVE SHAFT HOUSING TO GEAR HOUSING STUDSWASHER, DRIVE SHAFT HOUSING TO GEAR HOUSING STUDS
-
660769 COVER, TRIM-DRIVE SHAFT HOUSINGCOVER, TRIM-DRIVE SHAFT HOUSING
-
710-37571 SCREW, TRIM COVER TO DRIVE SHAFT HOUSINGSCREW, TRIM COVER TO DRIVE SHAFT HOUSING
-
839558 SEAL, TRIM COVER TO DRIVE SHAFT HOUSINGSEAL, TRIM COVER TO DRIVE SHAFT HOUSING
-
939557 STRIP, RETAINING-TRIM COVER SEALSTRIP, RETAINING-TRIM COVER SEAL
-
1010-37571 SCREW, STRIP AND SEAL TO DRIVE SHAFT HOUSINGSCREW, STRIP AND SEAL TO DRIVE SHAFT HOUSING
-
1010-48408 SCREW, STRIP AND SEAL TO DRIVE SHAFT HOUSINGSCREW, STRIP AND SEAL TO DRIVE SHAFT HOUSING
-
1112-30164 WASHER, RETAINING STRIP SCREWWASHER, RETAINING STRIP SCREW
-
1232-37727 TUBE, WATER OUTLET (SHORT SHAFT)TUBE, WATER OUTLET (SHORT SHAFT)
-
1232-37726 TUBE, WATER OUTLET (LONG SHAFT)TUBE, WATER OUTLET (LONG SHAFT)
-
1232-45679 TUBE, WATER OUTLET (LONG SHAFT)TUBE, WATER OUTLET (LONG SHAFT)
-
1323-23651 SLEEVE, RUBBER-WATER OUTLET TUBESLEEVE, RUBBER-WATER OUTLET TUBE
-
14695431 TUBE, EXHAUST (SHORT SHAFT)TUBE, EXHAUST (SHORT SHAFT)
-
1439527 TUBE, EXHAUST (LONG SHAFT)TUBE, EXHAUST (LONG SHAFT)
-
14695441 TUBE, EXHAUST (LONG SHAFT)TUBE, EXHAUST (LONG SHAFT)
-
1511-862902 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
1627-385011 GASKET, EXHAUST PLATE TO DRIVE SHAFT HOUSINGGASKET, EXHAUST PLATE TO DRIVE SHAFT HOUSING
-
1725305 CAP, RUBBER-UPPER MOUNT BOLT NUTCAP, RUBBER-UPPER MOUNT BOLT NUT
-
1811-23161 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
1912-30519 WASHER, UPPER MOUNT BOLT (3/8 ID)WASHER, UPPER MOUNT BOLT (3/8 ID)
-
2012-30521 WASHER, RUBBER-UPPER MOUNT BOLTWASHER, RUBBER-UPPER MOUNT BOLT
-
2112-30520 WASHER, UPPER MOUNT BOLT (37/64 ID)WASHER, UPPER MOUNT BOLT (37/64 ID)
-
2279680A1 COVER, UPPER MOUNT-OUTSIDE HALFCOVER, UPPER MOUNT-OUTSIDE HALF
-
2379680A1 COVER, UPPER MOUNT-INSIDE HALFCOVER, UPPER MOUNT-INSIDE HALF
-
2475301 MOUNT, RUBBER-UPPERMOUNT, RUBBER-UPPER
-
2524929 PACKING, "U" CUP-UPPER MOUNT COVERSPACKING, "U" CUP-UPPER MOUNT COVERS
-
2610-37941 SCREW< UPPER MOUNT COVER-REAR (1 3/4")SCREW< UPPER MOUNT COVER-REAR (1 3/4")
-
2610-37941 SCREW, UPPER MOUNT COVER-REAR (1 3/4")SCREW, UPPER MOUNT COVER-REAR (1 3/4")
-
2710-28772 SCREW, UPPER MOUNT COVER-FRONT (1 1/2")SCREW, UPPER MOUNT COVER-FRONT (1 1/2")
-
2710-49987 SCREW, UPPER MOUNT COVER-FRONT (1 1/2")SCREW, UPPER MOUNT COVER-FRONT (1 1/2")
-
2811-35888 NUT, UPPER MOUNT COVER FASTENING SCREWNUT, UPPER MOUNT COVER FASTENING SCREW
-
2925067 BUMPER, RUBBER-LOWER MOUNT SCREWBUMPER, RUBBER-LOWER MOUNT SCREW
-
3010-75284 SCREW, LOWER MOUNT (5 1/2")SCREW, LOWER MOUNT (5 1/2")
-
3010-75284 SCREW, LOWER MOUNT (5 1/2")SCREW, LOWER MOUNT (5 1/2")
-
3112-28051 WASHER, LOWER MOUNT SCREWWASHER, LOWER MOUNT SCREW
-
3212-28053 WASHER, RUBBER-LOWER MOUNT SCREWWASHER, RUBBER-LOWER MOUNT SCREW
-
3375302T1 MOUNT, RUBBER-LOWERMOUNT, RUBBER-LOWER
-
3412-30119 WASHER, LOWER MOUNT SCREWWASHER, LOWER MOUNT SCREW
-
3511-25096 NUT, LOWER MOUNT SCREWNUT, LOWER MOUNT SCREW
-
3669592F1 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSINGCLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
-
3710-29256 SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSINGSCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING
-
3824-35522 SPRING, TENSION-LOWER MOUNT CLAMPSPRING, TENSION-LOWER MOUNT CLAMP
-
3935474T COVER, LOWER MOUNT CLAMPCOVER, LOWER MOUNT CLAMP
-
4010-29722 SCREW, COVER TO LOWER CLAMPSCREW, COVER TO LOWER CLAMP
-
4111-35521 NUT, LOWER MOUNT CLAMP COVERNUT, LOWER MOUNT CLAMP COVER
-
4222-390721 PLUG, GREASE-REVERSE LOCK HOLEPLUG, GREASE-REVERSE LOCK HOLE
-
4222-390721 PLUG, GREASE-REVERSE LOCK HOLEPLUG, GREASE-REVERSE LOCK HOLE
-
4352920 LEVER, REVERSE LOCKLEVER, REVERSE LOCK
-
4352920 LEVER, REVERSE LOCKLEVER, REVERSE LOCK
-
4417-24887 PIN, REVERSE LOCK LEVERPIN, REVERSE LOCK LEVER
-
4524-25122 SPRING, TENSION-PUSH RODSPRING, TENSION-PUSH ROD
-
4632102 ROD, PUSH-REVERSE LOCK (SHORT SHAFT)ROD, PUSH-REVERSE LOCK (SHORT SHAFT)
-
4634079 ROD, PUSH-REVERSE LOCK (LONG SHAFT)ROD, PUSH-REVERSE LOCK (LONG SHAFT)
-
4645788 ROD, PUSH-REVERSE LOCK (LONG SHAFT)ROD, PUSH-REVERSE LOCK (LONG SHAFT)
-
4718-25191 COTTER PIN, PUSH ROD TO REVERSE LOCKCOTTER PIN, PUSH ROD TO REVERSE LOCK
-
4811-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
