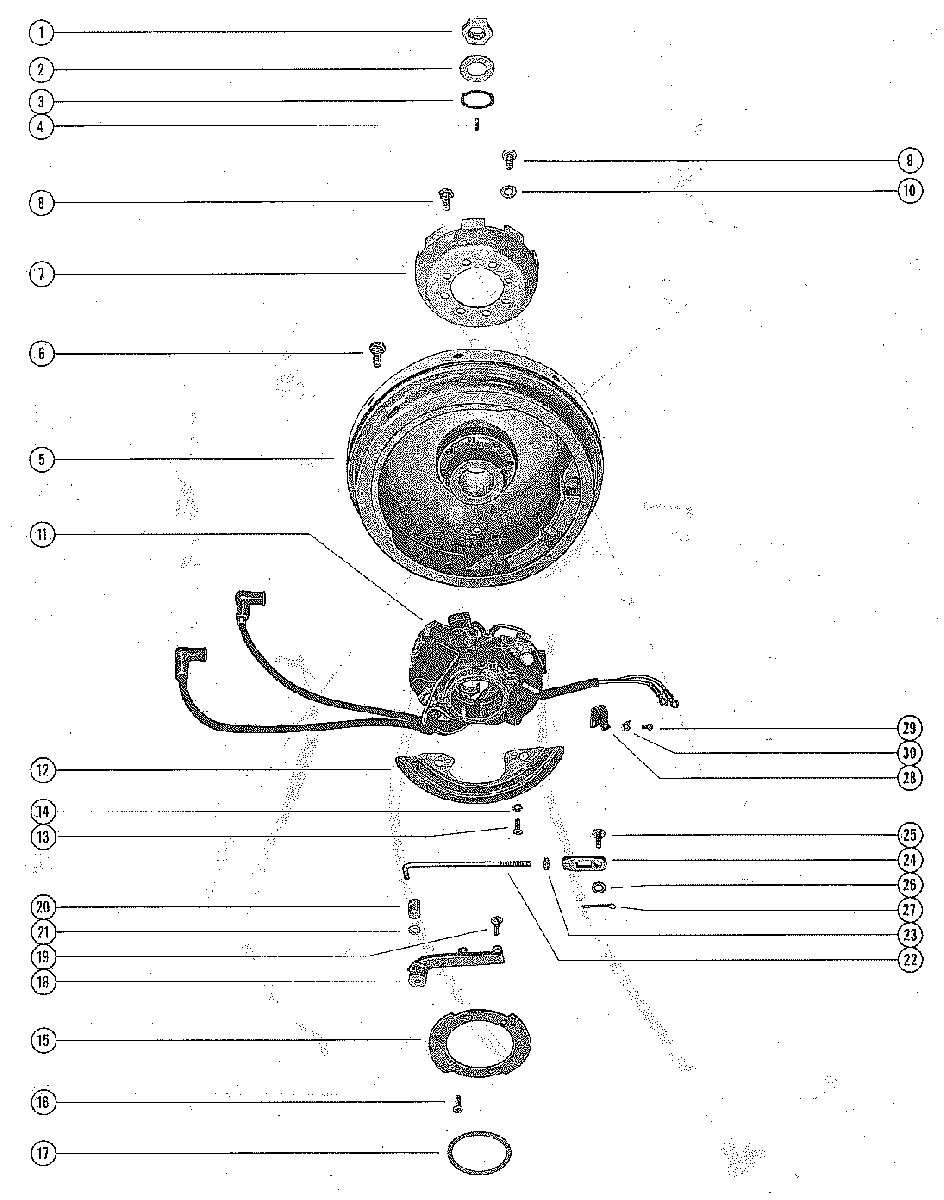

FLYWHEEL ASSEMBLY AND THROTTLE CAM LINKAGE для Mercury - 350 1960827 THRU 2874703
-
№АртикулНазвание
-
111-22339 NUT, FLYWHEELNUT, FLYWHEEL
-
212-36281 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
325-37340 "O" RING, FLYWHEEL HUB"O" RING, FLYWHEEL HUB
-
428-45554 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
428-45554 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
5218-2241A2 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
610-35562 SCREW, FLEXIBLE PLATE TO FLYWHEELSCREW, FLEXIBLE PLATE TO FLYWHEEL
-
750-39838 RATCHET ASSEMBLY, FLYWHEELRATCHET ASSEMBLY, FLYWHEEL
-
810-32417 SCREW, RATCHET TO FLYWHEELSCREW, RATCHET TO FLYWHEEL
-
910-34290 SCREW, RATCHET TO FLYWHEELSCREW, RATCHET TO FLYWHEEL
-
1013-26992 LOCKWASHER, RATCHET SCREWLOCKWASHER, RATCHET SCREW
-
11398-2574A3 STATOR PLATE ASSEMBLY, COMPLETE (SEE NOTE BELOW)STATOR PLATE ASSEMBLY, COMPLETE (SEE NOTE BELOW)
-
1236442A1 SHIELD ASSEMBLY, STATOR PLATESHIELD ASSEMBLY, STATOR PLATE
-
1310-45742 SCREW, SHIELD TO STATOR PLATESCREW, SHIELD TO STATOR PLATE
-
1413-26996 LOCKWASHER, SHIELD SCREWLOCKWASHER, SHIELD SCREW
-
1533904 RING, HOLD DOWN-STATOR PLATERING, HOLD DOWN-STATOR PLATE
-
1610-35400 SCREW, HOLD DOWN RING TO STATOR PLATESCREW, HOLD DOWN RING TO STATOR PLATE
-
1715-33910015 SHIM, STATOR PLATE TO UPPER END CAP (.015)SHIM, STATOR PLATE TO UPPER END CAP (.015)
-
1839280 BRACKET, THROTTLE CAMBRACKET, THROTTLE CAM
-
1910-29722 SCREW, THROTTLE CAM BRACKET TO STATOR PLATE (5/8")SCREW, THROTTLE CAM BRACKET TO STATOR PLATE (5/8")
-
2046097 SWIVEL, LINK ROD TO THROTTLE CAM BRACKETSWIVEL, LINK ROD TO THROTTLE CAM BRACKET
-
2046097 SWIVEL, LINK ROD TO THROTTLE CAM BRACKETSWIVEL, LINK ROD TO THROTTLE CAM BRACKET
-
2113-29720 WASHER, WAVE-LINK ROD SWIVELWASHER, WAVE-LINK ROD SWIVEL
-
2239913 LINK ROD, THROTTLE CAMLINK ROD, THROTTLE CAM
-
2311-68219 NUT, JAM-LINK RODNUT, JAM-LINK ROD
-
2446098 LINK, ADJUSTING-LINK ROD TO THROTTLE ARMLINK, ADJUSTING-LINK ROD TO THROTTLE ARM
-
2446098 LINK, ADJUSTING-LINK ROD TO THROTTLE ARMLINK, ADJUSTING-LINK ROD TO THROTTLE ARM
-
2517-39911 PIN, ADJUSTING LINK TO THROTTLE ARMPIN, ADJUSTING LINK TO THROTTLE ARM
-
2613-34632 WASHER, WAVE-ADJUSTING LINK PINWASHER, WAVE-ADJUSTING LINK PIN
-
2718-328571 COTTER PIN, ADJUSTING LINK PINCOTTER PIN, ADJUSTING LINK PIN
-
2854-26550 CLAMP, STATOR GROUND LEADSCLAMP, STATOR GROUND LEADS
-
2910-62568 SCREW, STATOR GROUND LEADS CLAMP FASTENINGSCREW, STATOR GROUND LEADS CLAMP FASTENING
-
308M0084613 "D" WASHER, STATOR GROUND LEADS CLAMP SCREW"D" WASHER, STATOR GROUND LEADS CLAMP SCREW
