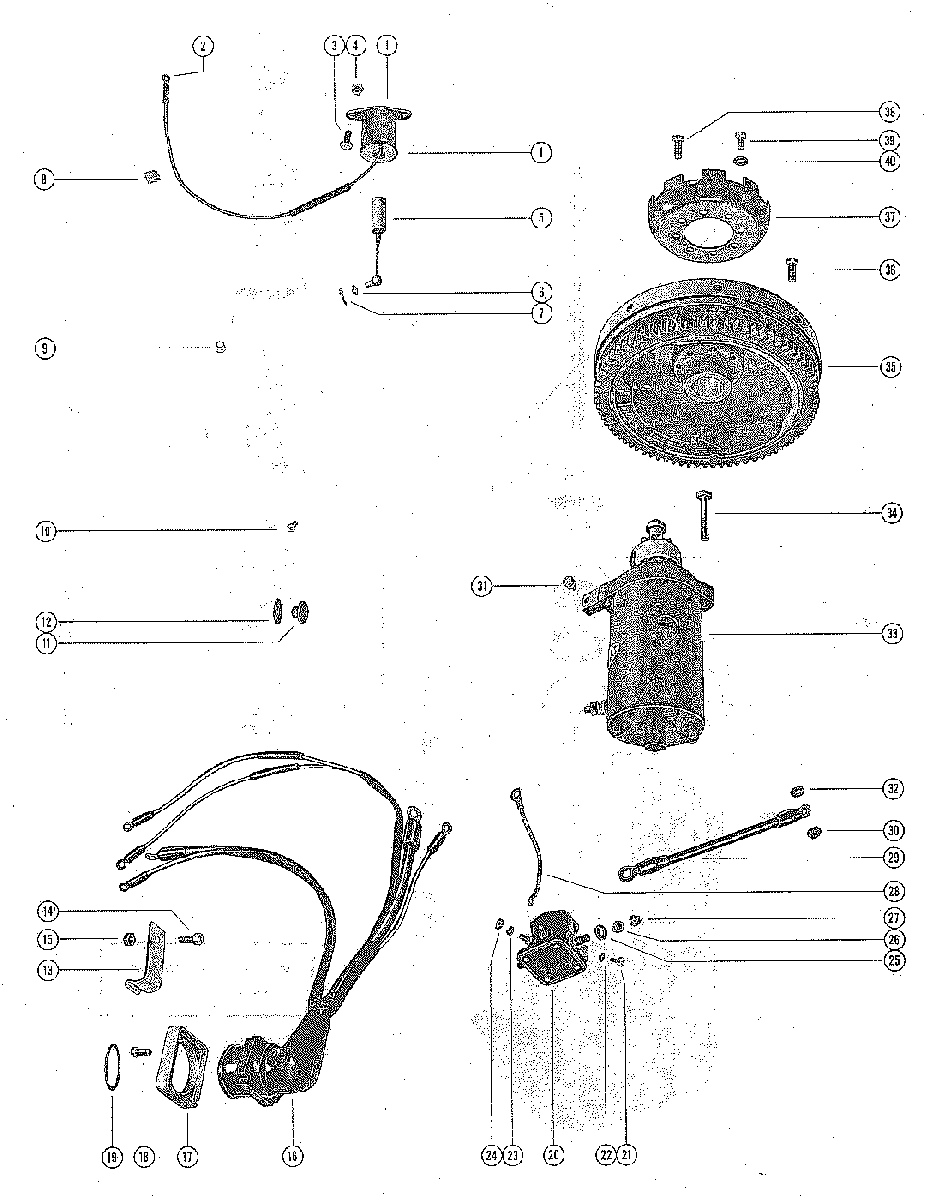

STARTER MOTOR, STARTER SOLENOID AND WIRING HARNESS для Mercury - 350 1960827 THRU 2874703

  • №
    Артикул
    Название
  • 1
    37585 CHOKE SOLENOID
    CHOKE SOLENOID
  • 2
    30050 DISCONNECT, CHOKE SOLENOID TERMINALS
    DISCONNECT, CHOKE SOLENOID TERMINALS
  • 3
    10-26065 SCREW, CHOKE SOLENOID TO FRONT SUPPORT BRACKET (1")
    SCREW, CHOKE SOLENOID TO FRONT SUPPORT BRACKET (1")
  • 4
    11-29250 NUT, CHOKE SOLENOID SCREW
    NUT, CHOKE SOLENOID SCREW
  • 5
    48315A4 PLUNGER ASSEMBLY, CHOKE SOLENOID
    PLUNGER ASSEMBLY, CHOKE SOLENOID
  • 5
    48315A6 PLUNGER ASSEMBLY, CHOKE SOLENOID
    PLUNGER ASSEMBLY, CHOKE SOLENOID
  • 5
    52996A1 PLUNGER ASSEMBLY, CHOKE SOLENOID (NOT AS SHOWN)
    PLUNGER ASSEMBLY, CHOKE SOLENOID (NOT AS SHOWN)
  • 6
    12-30164 WASHER, CHOKE SOLENOID LINK
    WASHER, CHOKE SOLENOID LINK
  • 7
    18-26953 COTTER PIN, CHOKE SOLENOID LINK FASTENING
    COTTER PIN, CHOKE SOLENOID LINK FASTENING
  • 8
    54-22783 "S" CLIP, CHOKE SOLENOID LEADS TO BOTTOM COWL
    "S" CLIP, CHOKE SOLENOID LEADS TO BOTTOM COWL
  • 9
    23-30438 BUSHING, NYLON-CHOKE SHUTTER
    BUSHING, NYLON-CHOKE SHUTTER
  • 10
    10-62568 SCREW, WIRING HARNESS LEADS TO TERMINAL BLOCK
    SCREW, WIRING HARNESS LEADS TO TERMINAL BLOCK
  • 11
    19-35827 PLUG, BOTTOM COWL
    PLUG, BOTTOM COWL
  • 12
    11-30428 FASTENER, PLUG TO BOTTOM COWL
    FASTENER, PLUG TO BOTTOM COWL
  • 13
    34228 SUPPORT, EXTERNAL WIRING HARNESS
    SUPPORT, EXTERNAL WIRING HARNESS
  • --
    52907 INSULATOR, SUPPORT TO BOTTOM COWL
    INSULATOR, SUPPORT TO BOTTOM COWL
  • 14
    10-31163 SCREW, SUPPORT TO BOTTOM COWL
    SCREW, SUPPORT TO BOTTOM COWL
  • 15
    11-20184 NUT, SUPPORT FASTENING SCREW
    NUT, SUPPORT FASTENING SCREW
  • 16
    34229 WIRING HARNESS (INTERNAL)
    WIRING HARNESS (INTERNAL)
  • 17
    26079A2 PLATE, BACKING-WIRING HARNESS
    PLATE, BACKING-WIRING HARNESS
  • 18
    10-45893 SCREW, BACKING PLATE TO BOTTOM COWL
    SCREW, BACKING PLATE TO BOTTOM COWL
  • 18
    10-52903 SCREW, BACKING PLATE TO BOTTOM COWL
    SCREW, BACKING PLATE TO BOTTOM COWL
  • 19
    24-28975 SPRING, GARTER-INTERNAL WIRING HARNESS
    SPRING, GARTER-INTERNAL WIRING HARNESS
  • 20
    32445A1 SOLENOID, STARTER
    SOLENOID, STARTER
  • 21
    10-29238 SCREW, STARTER SOLENOID TO STARTER MOTOR
    SCREW, STARTER SOLENOID TO STARTER MOTOR
  • 22
    12-37998 WASHER, STARTER SOLENOID SCREW
    WASHER, STARTER SOLENOID SCREW
  • 23
    13-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
    LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
  • 24
    11-68219 NUT, STARTER SOLENOID TERMINAL (#10)
    NUT, STARTER SOLENOID TERMINAL (#10)
  • 25
    13-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16)
    LOCKWASHER, STARTER SOLENOID TERMINAL (5/16)
  • 26
    11-22053 NUT, STARTER SOLENOID TERMINAL (5/16)
    NUT, STARTER SOLENOID TERMINAL (5/16)
  • 27
    11-26062 NUT, CAP-STARTER SOLENOID TERMINAL-OUTSIDE (5/16")
    NUT, CAP-STARTER SOLENOID TERMINAL-OUTSIDE (5/16")
  • 28
    28016A1 GROUND STRAP ASS'Y, STARTER SOLENOID/STARTER MOTOR
    GROUND STRAP ASS'Y, STARTER SOLENOID/STARTER MOTOR
  • 29
    45015 WIRE, STARTER MOTOR TO STARTER SOLENOID
    WIRE, STARTER MOTOR TO STARTER SOLENOID
  • 30
    11-20890 NUT, GROUND WIRE TO STARTER MOTOR TERMINAL
    NUT, GROUND WIRE TO STARTER MOTOR TERMINAL
  • 31
    10-69035 SCREW, WIRING HARNESS TO STARTER MOTOR
    SCREW, WIRING HARNESS TO STARTER MOTOR
  • 32
    13-26992 LOCKWASHER, GROUND WIRE FASTENING SCREW
    LOCKWASHER, GROUND WIRE FASTENING SCREW
  • 33
    50-55601A2 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 34
    10-35213 SCREW, STARTER MOTOR TO CRANKCASE
    SCREW, STARTER MOTOR TO CRANKCASE
  • 35
    218-2242A2 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 36
    10-35562 SCREW, FLEXIBLE PLATE TO FLYWHEEL
    SCREW, FLEXIBLE PLATE TO FLYWHEEL
  • 37
    50-39838 RATCHET ASSEMBLY, FLYWHEEL
    RATCHET ASSEMBLY, FLYWHEEL
  • 38
    10-32417 SCREW, RATCHET TO FLYWHEEL
    SCREW, RATCHET TO FLYWHEEL
  • 39
    10-34290 SCREW, RATCHET TO FLYWHEEL
    SCREW, RATCHET TO FLYWHEEL
  • 40
    13-26992 LOCKWASHER, RATCHET TO FLYWHEEL SCREW
    LOCKWASHER, RATCHET TO FLYWHEEL SCREW
