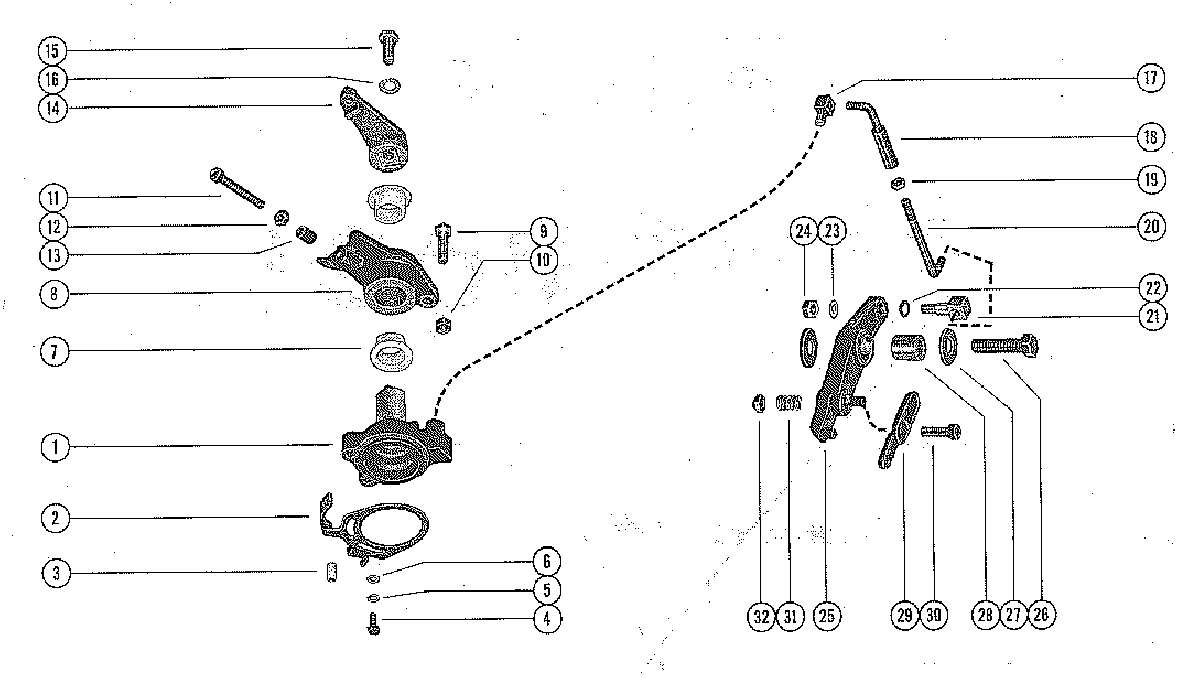

SHIFT CONTROL LINKAGE для Mercury - 350 1960827 THRU 2874703

  • №
    Артикул
    Название
  • 1
    39521 SHAFT, THROTTLE CONTROL
    SHAFT, THROTTLE CONTROL
  • 2
    39842A1 THROTTLE ACTUATOR ASSEMBLY
    THROTTLE ACTUATOR ASSEMBLY
  • 3
    23-26602 BUSHING, NYLON-THROTTLE CONTROL SHAFT
    BUSHING, NYLON-THROTTLE CONTROL SHAFT
  • 4
    10-69022 SCREW, THROTTLE ACTUATOR TO THROTTLE CONTROL SHAFT
    SCREW, THROTTLE ACTUATOR TO THROTTLE CONTROL SHAFT
  • 5
    13-26996 LOCKWASHER, THROTTLE ACTUATOR SCREW
    LOCKWASHER, THROTTLE ACTUATOR SCREW
  • 6
    12-847883 WASHER, THROTTLE ACTUATOR SCREW
    WASHER, THROTTLE ACTUATOR SCREW
  • 7
    23-39524 BUSHING, NYLON-THROTTLE CONTROL SHAFT
    BUSHING, NYLON-THROTTLE CONTROL SHAFT
  • 8
    39522T BRACKET, THROTTLE CONTROL SHAFT
    BRACKET, THROTTLE CONTROL SHAFT
  • 9
    10-20639 SCREW, THROTTLE CONTROL BRACKET
    SCREW, THROTTLE CONTROL BRACKET
  • 10
    11-29250 NUT, THROTTLE CONTROL BRACKET SCREW
    NUT, THROTTLE CONTROL BRACKET SCREW
  • 11
    10-24228 SCREW, ADJUSTING-THROTTLE CONTROL BRACKET
    SCREW, ADJUSTING-THROTTLE CONTROL BRACKET
  • 12
    11-20890 NUT, JAM-ADJUSTING SCREW
    NUT, JAM-ADJUSTING SCREW
  • 13
    26852 CAP, NYLON-ADJUSTING SCREW
    CAP, NYLON-ADJUSTING SCREW
  • 14
    39520 ARM, THROTTLE
    ARM, THROTTLE
  • 15
    10-34353 SCREW, THROTTLE ARM TO THROTTLE CONTROL SHAFT (1")
    SCREW, THROTTLE ARM TO THROTTLE CONTROL SHAFT (1")
  • 16
    13-35048 LOCKWASHER, THROTTLE ARM SCREW
    LOCKWASHER, THROTTLE ARM SCREW
  • 17
    27947 SWIVEL, LINKAGE-THROTTLE CONTROL SHAFT
    SWIVEL, LINKAGE-THROTTLE CONTROL SHAFT
  • 18
    25996A1 SWIVEL AND LINK ROD ASSEMBLY
    SWIVEL AND LINK ROD ASSEMBLY
  • 19
    11-25168 NUT, JAM-UPPER LINK ROD ADJUSTING
    NUT, JAM-UPPER LINK ROD ADJUSTING
  • 20
    37588 ROD, LINK-UPPER
    ROD, LINK-UPPER
  • 21
    27948 SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
    SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
  • 22
    13-25806 WASHER, WAVE-THROTTLE CONTROL LEVER SWIVEL
    WASHER, WAVE-THROTTLE CONTROL LEVER SWIVEL
  • 23
    12-29245 WASHER, THROTTLE CONTROL LEVER SWIVEL
    WASHER, THROTTLE CONTROL LEVER SWIVEL
  • 24
    11-8267089 NUT, SWIVEL TO THROTTLE CONTROL LEVER
    NUT, SWIVEL TO THROTTLE CONTROL LEVER
  • 25
    39523 LEVER, THROTTLE CONTROL
    LEVER, THROTTLE CONTROL
  • 26
    10-47273 SCREW, THROTTLE CONTROL LEVER TO EXHAUST COVER
    SCREW, THROTTLE CONTROL LEVER TO EXHAUST COVER
  • 27
    12-8M0042641 WASHER, THROTTLE CONTROL LEVER SCREW
    WASHER, THROTTLE CONTROL LEVER SCREW
  • 27
    12-8M0042641 WASHER, THROTTLE CONTROL LEVER SCREW
    WASHER, THROTTLE CONTROL LEVER SCREW
  • 28
    23-38994 BUSHING, THROTTLE CONTROL LEVER SCREW
    BUSHING, THROTTLE CONTROL LEVER SCREW
  • 28
    23-45818 BUSHING, THROTTLE CONTROL LEVER SCREW
    BUSHING, THROTTLE CONTROL LEVER SCREW
  • 29
    39483 LATCH, THROTTLE CONTROL LEVER (THROTTLE CABLE)
    LATCH, THROTTLE CONTROL LEVER (THROTTLE CABLE)
  • 30
    10-69026 SCREW, LATCH TO THROTTLE CONTROL LEVER (7/8")
    SCREW, LATCH TO THROTTLE CONTROL LEVER (7/8")
  • 31
    24-20099 SPRING, COMPRESSION-LATCH SCREW
    SPRING, COMPRESSION-LATCH SCREW
  • 32
    11-826709109 NUT, SCREW
    NUT, SCREW
